Crystek新產品CVCO55CC-1630-1630壓控振蕩器專用于衛星通信系統

Crystek公司一直提供頻率產品，包括石英晶體、XOs（時鐘振蕩器）、TCXOs（溫度補償晶體振蕩器）、VCOs（壓控振蕩器）和VCXOs（壓控晶體振蕩器）。Crystek晶振廠家經營著兩個致力于頻率控制的部門。Crystek Crystals致力于開發和制造使用石英諧振器的頻率產品。Crystek Microwave為微波行業開發頻率控制和支持產品。其它產品包括:PLL（鎖相環）頻率合成器、RedBox VCOs、RF同軸電纜組件、RF電纜連接器、散裝RF同軸電纜、RF功率檢波器、濾波器、衰減器、DC模塊、無源倍頻器、RFPRO（袖珍參考振蕩器）、連接器放大器、VCO評估板和看見基于時鐘振蕩器和VCO。

Crystek的CVCO55CC-1630-1630 VCO（壓控振蕩器）工作頻率為1630MHz，控制電壓范圍為0.3V至4.7V。這款VCO的典型相位噪聲為-120 dBc/Hz（10 kHz偏移），壓控晶振具有出色的線性度。輸出功率通常為+2.5 dBm。
CVCO55CC-1630-1630型號在美國設計和制造，采用行業標準的0.5x0.5英寸SMD晶振封裝。輸入電壓為5V，最大電流消耗為25mA。拉和推分別降至2.0 MHz峰峰值和1.0MHz/V。二次諧波抑制典型值為-15dBc。
CVCO55CC-1630-1630非常適合數字無線電設備、固定無線接入、衛星通信系統和基站等應用。

Crystek新產品CVCO55CC-1630-1630壓控振蕩器專用于衛星通信系統

Crystek Corporation® has been providing frequency products since 1958, including quartz crystals, XOs (Clock Oscillators), TCXOs (Temperature Compensated Crystal Oscillators), VCOs (Voltage Controlled Oscillators), and VCXOs (Voltage Controlled Crystal Oscillators). Crystek operates two divisions dedicated to frequency control. Crystek Crystals is dedicated to the development and manufacture of frequency products using quartz-based resonators. Crystek Microwave develops frequency control and support products for the microwave industry. Other products include: PLL (Phase Lock Loop) Synthesizers, RedBox VCOs, RF Coaxial Cable Assemblies, RF Cable Connectors, Bulk RF Coaxial Cable, RF Power Detectors, Filters, Attenuators, DC Blocks, Passive Doublers, RFPRO (Pocket Reference Oscillators), Connectorized Amplifiers, VCO Evaluation Boards, and SAW based Clock Oscillators and VCSOs.

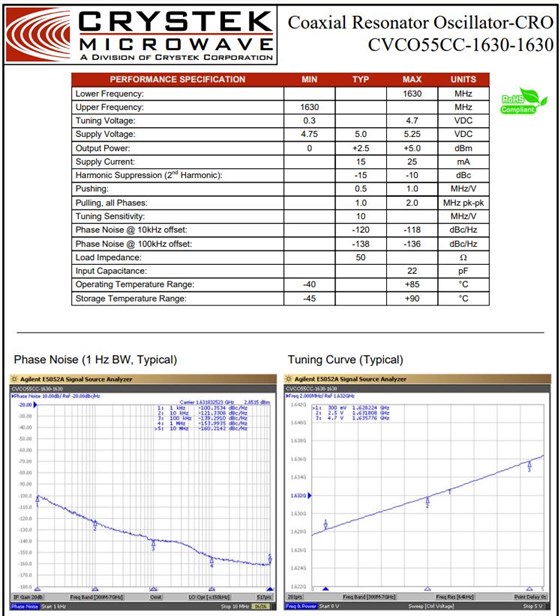

Crystek's CVCO55CC-1630-1630 VCO (Voltage Controlled Oscillator) operates at 1630 MHz with a control voltage range of 0.3 V to 4.7 V. This VCO features typical phase noise of -120 dBc/Hz @ 10 kHz offset with excellent linearity. Output power is typically +2.5 dBm.

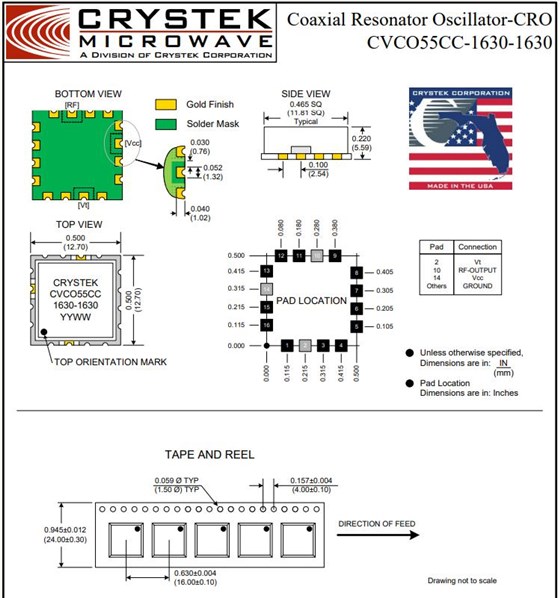

Engineered and manufactured in the USA, the model CVCO55CC-1630-1630 is packaged in the industry-standard 0.5 x 0.5 inch SMD package. Input voltage is 5V, with a max current consumption of 25 mA. Pulling and Pushing are minimized to 2.0 MHz pk-pk and 1.0 MHz/V, respectively. Second harmonic suppression is -15 dBc typical.

The CVCO55CC-1630-1630 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
