16MHz,CX2520DB16000D0GEJCC,2520mm,8pF,±15ppm,藍牙模塊晶振，日本進口Kyocera京瓷晶振，型號CX2520DB，編碼為CX2520DB16000D0GEJCC，是一款小體積晶振尺寸2.5x2.0mm四腳貼片晶振，頻率為16MHz，無源晶振，石英晶振，貼片晶振，無鉛環保晶振，具有超小型，輕薄型，耐熱及耐環境特點，石英晶體諧振器應用于，數字家電，普通民用設備，移動通信設備，無線網絡，藍牙模塊，無線局域網，可穿戴設備，醫療設備，汽車電子，小型便捷式設備，數碼電子等應用。
16MHz,CX2520DB16000D0GEJCC,2520mm,8pF,±15ppm,藍牙模塊晶振，參數表
項 目
記 號
CX2520DB 規格
単 位
備 考
周波數
f_nom
12000 ~ 54000
kHz
超調階數
OT
Fundamental
―
負荷容量
CL
8
pF
關于其他的負荷容量請咨詢
周波數許容偏差
f_tol
±15
× 10−6
25°C±3°C
直列抵抗
R1
Table 1
ohm
激勵水平
DL
Table 2
W
動作溫度範囲
T_use
−10 ~ +70 −30 ~ +85
°C
保存溫度範囲
T_stg
−40 ~ +85
°C
周波數溫度特性
f_tem
± 15
× 10−6
相對于25℃頻率的偏差

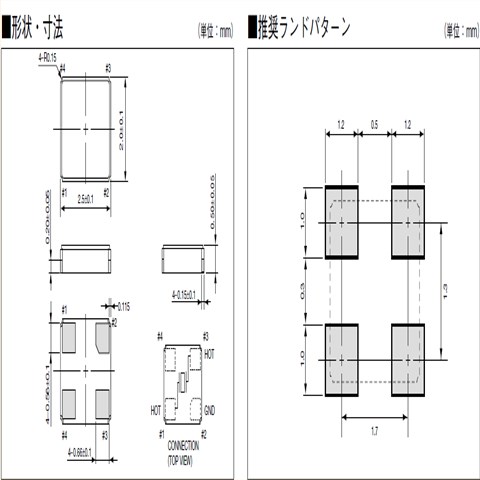

16MHz,CX2520DB16000D0GEJCC,2520mm,8pF,±15ppm,藍牙模塊晶振，尺寸圖
16MHz,CX2520DB16000D0GEJCC,2520mm,8pF,±15ppm,藍牙模塊晶振
■品名表示方法
CX2520DB27000□□□□□□□
①② ③ ④ ⑤ ⑥ ⑦
①型名
②周波數
③負荷容量
|
D0 |
8 pF |
|
G |
±15× 10−6 |
⑤動作溫度范圍及
⑥頻率溫度特性
|
EJ |
− 10 ~ +70°C |
±15×10−6 |
|
LJ |
−30~ +85°C |
±15× 10−6 |
⑦個別規格
包裝形態（包裝1000/3000/1200個/卷軸）
| 原廠編碼 | 2520晶振 | 頻率 | 工作溫度 | 包裝/封裝 |
| CX2520DB19200H0KFQC2 | CX2520DB | 19.2MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB24000D0FLJCC | CX2520DB | 24MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000D0WZRC1 | CX2520DB | 32MHz | -25°C ~ 75°C | 4-SMD, No Lead |
| CX2520DB16000D0GEJCC | CX2520DB | 16MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB24000D0GEJCC | CX2520DB | 24MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB40000D0FLJCC | CX2520DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB27000H0KLSA1 | CX2520DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB27000B0FLHA1 | CX2520DB | 27MHz | -10°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB40000H0FLJC3 | CX2520DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB40000D0GPSC1 | CX2520DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB13560H0FLJC1 | CX2520DB | 13.56MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB19200D0FLJC2 | CX2520DB | 19.2MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB27000D0FLJC1 | CX2520DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB26000D0GPSC1 | CX2520DB | 26MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB27000H0FLJC1 | CX2520DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB25000D0FLJC1 | CX2520DB | 25MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB13560D0FLJC2 | CX2520DB | 13.56MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24000H0FLJC1 | CX2520DB | 24MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB12000D0FLJC1 | CX2520DB | 12MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB16000H0FLJC1 | CX2520DB | 16MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB16000D0GPSC1 | CX2520DB諧振器 | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB12000H0FLJC1 | CX2520DB | 12MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB19200H0FLJC1 | CX2520DB | 19.2MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000D0GPSC1 | CX2520DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000H0FLJC1 | CX2520DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB26000H0FLJC2 | CX2520DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB16000D0WZRC1 | CX2520DB | 16MHz | -25°C ~ 75°C | 4-SMD, No Lead |
| CX2520DB30000D0GEJCC | CX2520DB | 30MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB16000D0FLJCC | CX2520DB | 16MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB26000D0FLJCC | CX2520DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB38400D0FZGC1 | CX2520DB | 38.4MHz | -25°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000D0FLJCC | CX2520DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB48000D0GEJCC | CX2520DB | 48MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB24576D0GEJCC | CX2520DB | 24.576MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB25000H0FLJC1 | CX2520DB | 25MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB12000C0WLSC1 | CX2520DB | 12MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB12000D0GPSC1 | CX2520DB | 12MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB13560D0GPSC1 | CX2520DB | 13.56MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB19200D0GPSC1 | CX2520DB | 19.2MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB20000H0FLJC1 | CX2520DB | 20MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB20000D0GPSC1 | CX2520DB | 20MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24000D0GPSC1 | CX2520DB | 24MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24576D0FLJC1 | CX2520DB | 24.576MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24576H0FLJC1 | CX2520DB | 24.576MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24576D0GPSC1 | CX2520DB | 24.576MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB25000D0GPSC1 | CX2520DB | 25MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB27000D0GPSC1 | CX2520DB | 27MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB30000D0FLJC1 | CX2520DB | 30MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB30000H0FLJC1 | CX2520DB | 30MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB30000D0GPSC1 | CX2520DB | 30MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB38400H0FLJC1 | CX2520DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB38400D0GPSC1 | CX2520DB | 38.4MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB48000D0FLJC2 | CX2520DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB48000H0FLJC1 | CX2520DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB48000D0GPSC1 | CX2520DB | 48MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000D0GEJCC | CX2520DB | 32MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB20000D0FLJCC | CX2520DB | 20MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB38400D0FLJCC | CX2520DB石英晶體 | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24576H0HZQA1 | CX2520DB | 24.576MHz | -20°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB26041F0FJLA1 | CX2520DB | 26.041MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB48000D0GEJZ1 | CX2520DB | 48MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB24576D0GEJZ1 | CX2520DB | 24.576MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB26000D0FLJZ1 | CX2520DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB30000D0GEJZ1 | CX2520DB | 30MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB32000D0FLJZ1 | CX2520DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB32000D0GEJZ1 | CX2520DB | 32MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB16000D0FLJZ1 | CX2520DB | 16MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB38400D0FLJZ1 | CX2520DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB16000D0GEJZ1 | CX2520DB | 16MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB40000D0FLJZ1 | CX2520DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB20000D0FLJZ1 | CX2520DB | 20MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2520DB24000D0GEJZ1 | CX2520DB | 24MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2520DB24000C0FLJA1 | CX2520DB | 24MHz | -30°C ~ 85°C | 4-SMD, No Lead |
