首頁 京瓷晶振

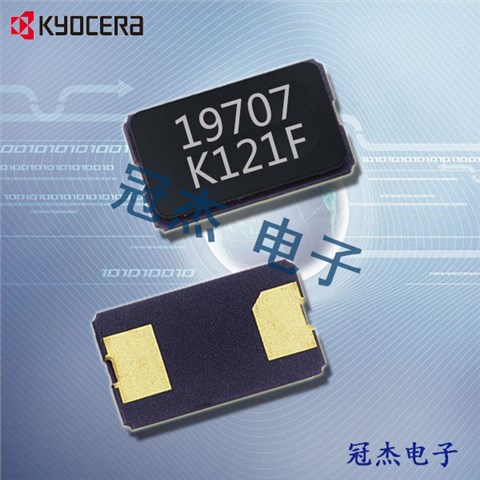

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子

產品簡介

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子，尺寸5.0*3.2mm,頻率8MHZ，日本進口晶振，京瓷無源晶振，兩腳貼片晶振，輕薄型晶振，環保晶振，無源晶振，無源SMD晶體，陶瓷諧振器，貼片陶瓷晶體，5032貼片晶振，SMD晶振，水晶振動子，陶瓷晶振，低功耗晶振，低損耗晶振，高質量晶振，高性能晶振，高可靠晶振，數字音頻晶振，消費產品專用晶振，汽車音響晶振，數碼電子晶振，智能手機專用晶振，可視化電話專用晶振，具有高質量高性能的特點。

陶瓷晶振產品可滿足不同應用程序的需求，尤其適合用于數字電子，消費產品，汽車，音頻及配件，智能手機，可視化電話等領域。CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子.


產品詳情

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子，尺寸5.0*3.2mm,頻率8MHZ，日本進口晶振，京瓷無源晶振，兩腳貼片晶振，輕薄型晶振，環保晶振，無源晶振，無源SMD晶體，陶瓷諧振器，貼片陶瓷晶體，5032貼片晶振，SMD晶振，水晶振動子，陶瓷晶振，低功耗晶振，低損耗晶振，高質量晶振，高性能晶振，高可靠晶振，數字音頻晶振，消費產品專用晶振，汽車音響晶振，數碼電子晶振，智能手機專用晶振，可視化電話專用晶振，具有高質量高性能的特點。

陶瓷晶振產品可滿足不同應用程序的需求，尤其適合用于數字電子，消費產品，汽車，音頻及配件，智能手機，可視化電話等領域。CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子 參數表

Item Symbol Specification Units Remarks
FrequencyRange f_nom 8.000 MHz
OvertoneOrder OT Fundamental ―
LoadCapacitance CL 8 12 pF
FrequencyTolerance f_tol ±20 × 10-6 25°C±3°C
MotionalSeriesResistance R1 Table 1 ohm
DriveLevel DL Table 2 W
OperatingTemp.Range T_use -10 to +70 °C
StorageTemp.Range T_stg -40 to +85 °C
FrequencyTemp.Characteristics f_tem ±30 × 10-6 Freq. deviation from the value at 25°C
FrequencyRange MotionalSeriesResistance FrequencyRange LevelofDrive
7372.8≤f_nom<9500kHz 300Ω max. 7372.8≤f_nom<16000kHz 10μW (500μW max.)
9500≤f_nom<10000kHz 200Ω max. 16000≤f_nom<25000kHz 10μW (300μW max.)
10000≤f_nom<14000kHz 150Ω max. 25000≤f_nom≤54000kHz 10μW (100μW max.)
14000≤f_nom<20000kHz 100Ω max.
20000≤f_nom<30000kHz 70Ω max.
30000≤f_nom≤54000kHz 50Ω max.
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

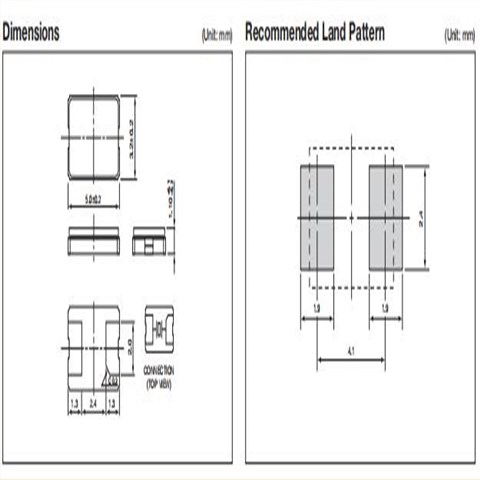

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子 尺寸圖

CX5032GB 尺寸

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子

諧振器產品特性：

小而低輪廓（T=最大1.1mm）

（5.0×3.2×1.0mm）

陶瓷包回流兼容

CX5032GB 1

Manufacturer Part Number原廠編碼 Manufacturer廠家 Series型號 Type 系列 Frequency Operating Temperature工作溫度
CT2520DB19200C0FLHAF AVX Corp/Kyocera Corp CT2520DB, Kyocera MHz Crystal 19.2MHz -30°C ~ 85°C
CX5032GB10000H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 10MHz -10°C ~ 70°C
CX5032GB16000H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 16MHz -10°C ~ 70°C
CX5032GB20000H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 20MHz -10°C ~ 70°C
CX3225CA12000P0HSTC1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 12MHz -40°C ~ 125°C
CX5032GB12000H0HPQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 12MHz -40°C ~ 85°C
CX3225CA12000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 12MHz -40°C ~ 125°C
CX3225CA16000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 16MHz -40°C ~ 125°C
CX3225GA24000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 24MHz -40°C ~ 150°C
CX3225GA25000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 25MHz -40°C ~ 150°C
CX5032GB27000H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 27MHz -10°C ~ 70°C
CX5032GB14318H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 14.31818MHz -10°C ~ 70°C
CX2520SB24000D0PESZZ AVX Corp/Kyocera Corp CX2520SB, Kyocera MHz Crystal 24MHz -10°C ~ 70°C
CX3225CA09843D0HSSTT AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 9.843MHz -40°C ~ 125°C
CX3225CA28636D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 28.63636MHz -40°C ~ 125°C
CX3225CA27000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 27MHz -40°C ~ 125°C
CX3225CA30000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 30MHz -40°C ~ 125°C
CX3225GA20000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 20MHz -40°C ~ 150°C
CX3225GA26000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 26MHz -40°C ~ 150°C
CX3225GA30000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 30MHz -40°C ~ 150°C
CX3225GA27000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 27MHz -40°C ~ 150°C
CX3225GA13560D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 13.56MHz -40°C ~ 150°C
CX3225GA32000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 32MHz -40°C ~ 150°C
CX3225GA09843D0PTVTT AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 9.843MHz -40°C ~ 150°C
CX5032GB16000H0HPQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 16MHz -40°C ~ 85°C
CX5032GB08000H0HPQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 8MHz -40°C ~ 85°C
CX5032GB10000H0HPQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 10MHz -40°C ~ 85°C
CX3225CA24000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 24MHz -40°C ~ 125°C
CX5032GB14745H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 14.7456MHz -10°C ~ 70°C
CX5032GB24576H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 24.576MHz -10°C ~ 70°C
CX2520SB13560D0GEJCC AVX Corp/Kyocera Corp CX2520SB, Kyocera MHz Crystal 13.56MHz -10°C ~ 70°C
CX2520SB40000H0WZK06 AVX Corp/Kyocera Corp CX2520SB, Kyocera MHz Crystal 40MHz 0°C ~ 85°C
CX2520SB40000H0DZF08 AVX Corp/Kyocera Corp CX2520SB, Kyocera MHz Crystal 40MHz -10°C ~ 85°C
CX3225CA13560D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 13.56MHz -40°C ~ 125°C
CX3225CA16000H0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 16MHz -40°C ~ 125°C
CX3225GA12000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 12MHz -40°C ~ 150°C
CT2520DB26000C0FZZA1 AVX Corp/Kyocera Corp CT2520DB, Kyocera MHz Crystal 26MHz -25°C ~ 85°C
CX5032GB08000H0HEQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 8MHz -10°C ~ 70°C
CX1612DB48000D0FPJC1 AVX Corp/Kyocera Corp CX1612DB, Kyocera MHz Crystal 48MHz -40°C ~ 85°C
CX5032GB12000H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 12MHz -10°C ~ 70°C
CX5032SA08000H0PSVZ1 AVX Corp/Kyocera Corp CX5032SA, Kyocera MHz Crystal 8MHz -40°C ~ 125°C
CX3225CA10000D0HSSTT AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 10MHz -40°C ~ 125°C
CX3225CA20000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 20MHz -40°C ~ 125°C
CX3225CA26000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 26MHz -40°C ~ 125°C
CX3225CA40000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 40MHz -40°C ~ 125°C
CX3225GA10000D0PTVTT AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 10MHz -40°C ~ 150°C
CX3225GA16000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 16MHz -40°C ~ 150°C
CX3225GA28636D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 28.63636MHz -40°C ~ 150°C
CX3225GA40000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 40MHz -40°C ~ 150°C
CX1612DB26000D0FLJC1 AVX Corp/Kyocera Corp CX1612DB, Kyocera MHz Crystal 26MHz -30°C ~ 85°C
CX1612DB52000D0FLJC1 AVX Corp/Kyocera Corp CX1612DB, Kyocera MHz Crystal 52MHz -30°C ~ 85°C
CX5032GB19200P0HEQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 19.2MHz -10°C ~ 70°C
CX2520SB13560D0GEJZ1 AVX Corp/Kyocera Corp CX2520SB, Kyocera MHz Crystal 13.56MHz -10°C ~ 70°C
CX3225CA09843D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 9.84375MHz -40°C ~ 125°C
CX3225CA10000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 10MHz -40°C ~ 125°C
CX3225CA28636D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 28.63636MHz -40°C ~ 125°C
CX3225CA12000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 12MHz -40°C ~ 125°C
CX3225GA25000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 25MHz -40°C ~ 150°C
CX3225CA32000D0HSSZ1 京瓷晶振 CX3225CA, Kyocera MHz Crystal 32MHz -40°C ~ 125°C
CX3225GA26000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 26MHz -40°C ~ 150°C
CX3225GA27000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 27MHz -40°C ~ 150°C
CX3225GA09843D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 9.84375MHz -40°C ~ 150°C
CX3225CA20000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 20MHz -40°C ~ 125°C
CX3225GA28636D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 28.63636MHz -40°C ~ 150°C
CX3225CA24000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 24MHz -40°C ~ 125°C
CX3225GA30000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 30MHz -40°C ~ 150°C
CX3225GA10000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 10MHz -40°C ~ 150°C
CX3225CA25000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 25MHz -40°C ~ 125°C
CX3225GA32000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 32MHz -40°C ~ 150°C
CX3225GA12000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 12MHz -40°C ~ 150°C
CX3225CA26000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 26MHz -40°C ~ 125°C
CX3225GA40000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 40MHz -40°C ~ 150°C
CX3225GA13560D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 13.56MHz -40°C ~ 150°C
CX3225GA16000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 16MHz -40°C ~ 150°C
CX3225CA27000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 27MHz -40°C ~ 125°C
CX3225GA20000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 20MHz -40°C ~ 150°C
CX3225GA24000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 24MHz -40°C ~ 150°C
CX3225CA30000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 30MHz -40°C ~ 125°C
CX3225CA13560D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 13.56MHz -40°C ~ 125°C
CX3225CA16000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 16MHz -40°C ~ 125°C
CX3225CA40000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 40MHz -40°C ~ 125°C
CX3225CA16000H0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 16MHz -40°C ~ 125°C
