首頁 Jauch晶振

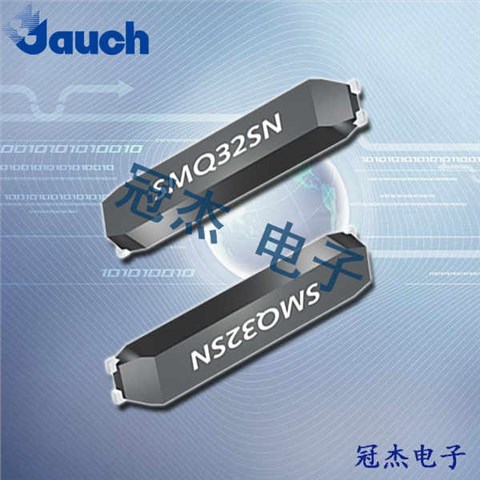

Jauch時鐘晶振,Q0.032768-SMQ32SN-12.5-20-T1-LF,儀器設備6G晶振

Jauch時鐘晶振,Q0.032768-SMQ32SN-12.5-20-T1-LF,儀器設備6G晶振Jauch時鐘晶振,Q0.032768-SMQ32SN-12.5-20-T1-LF,儀器設備6G晶振

產品簡介

Jauch時鐘晶振,Q0.032768-SMQ32SN-12.5-20-T1-LF,儀器設備6G晶振，法國進口晶振，Jauch晶振，型號：SMQ32SN，編碼為：Q0.032768-SMQ32SN-12.5-20-T1-LF，頻率為：32.768MHz晶振，負載電容12.5pF，精度±20ppm，小體積晶振尺寸：7.0x1.5mm陶瓷SMD封裝，四腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，SMD石英晶體，無鉛晶振，工作溫度范圍：-40℃至+85℃。具有超小型晶振，輕薄型晶振，高品質晶振，高性能晶振，高精度晶振，高穩定性，耐熱及耐環境特點。石英晶體被廣泛應用于：移動通訊設備，無線網絡，藍牙模塊，時鐘晶振，鐘表電子晶振，電腦主板晶振，儀器儀表設備，智能水電表，數碼電子，智能家居等應用。

產品詳情

Jauch時鐘晶振,Q0.032768-SMQ32SN-12.5-20-T1-LF,儀器設備6G晶振，法國進口晶振，Jauch晶振，型號：SMQ32SN，編碼為：Q0.032768-SMQ32SN-12.5-20-T1-LF，頻率為：32.768MHz晶振，負載電容12.5pF，精度±20ppm，小體積晶振尺寸：7.0x1.5mm陶瓷SMD封裝，四腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，SMD石英晶體，無鉛晶振，工作溫度范圍：-40℃至+85℃。具有超小型晶振，輕薄型晶振，高品質晶振，高性能晶振，高精度晶振，高穩定性，耐熱及耐環境特點。石英晶體被廣泛應用于：移動通訊設備，無線網絡，藍牙模塊，時鐘晶振，鐘表電子晶振，電腦主板晶振，儀器儀表設備，智能水電表，數碼電子，智能家居等應用。

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

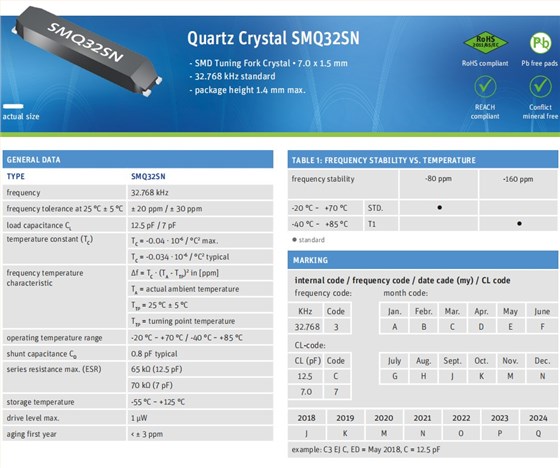

Jauch時鐘晶振,Q0.032768-SMQ32SN-12.5-20-T1-LF,儀器設備6G晶振參數表

GENERAL DATA
TYPE SMQ32SN
frequency 32.768 kHz
frequency tolerance at 25 °C ± 5 °C ± 20 ppm / ± 30 ppm
load capacitance CL 12.5 pF / 7 pF
temperature constant (TC) TC= -0.04 · 10-6/ °C2max.
TC= -0.034 · 10-6/ °C2typical

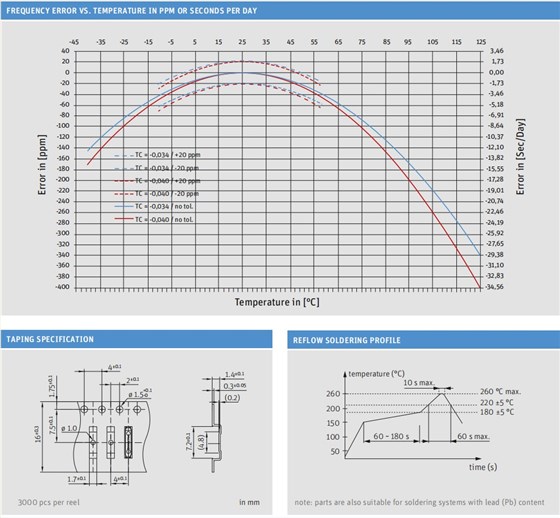

frequency temperature
characteristic 		Δf = TC· (TA- TTP)2in [ppm]
TA= actual ambient temperature
TTP= 25 °C ± 5 °C
TTP= turning point temperature
operating temperature range -20 °C ~ +70 °C / -40 °C ~ +85 °C
shunt capacitance CO 0.8 pF typical
series resistance max. (ESR) 65 kΩ (12.5 pF)
70 kΩ (7 pF)
storage temperature -55 °C ~ +125 °C
drive level max. 1 µW
aging first year < ± 3 ppm

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

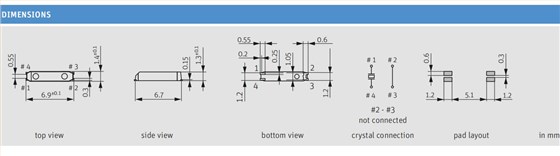

Jauch時鐘晶振,Q0.032768-SMQ32SN-12.5-20-T1-LF,儀器設備6G晶振 尺寸圖

SMQ32SN尺寸


Jauch時鐘晶振,Q0.032768-SMQ32SN-12.5-20-T1-LF,儀器設備6G晶振

產品特點：

SMD調優叉晶體7.0x1.5mm貼片晶振

頻率：32.768kHz標準

包裝高度1.4mm最大


SMQ32SN系列

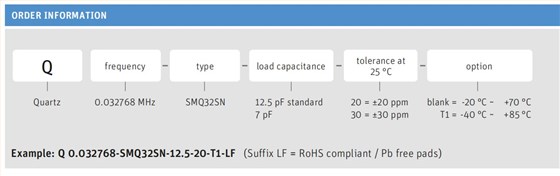

SMQ32SN編碼

SMQ32SN系列1


晶振編碼 晶振廠家 描述 系列 頻率 負載電容
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 9PF SMD JTX310 32.768kHz 9pF
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 9PF SMD JTX310 32.768kHz 9pF
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 9PF SMD JTX310 32.768kHz 9pF
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 7PF SMD JTX310 32.768kHz 7pF
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 7PF SMD JTX310 32.768kHz 7pF
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 7PF SMD JTX310 32.768kHz 7pF
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 CRYSTAL 32.768KHZ 9PF SMD JTX310 32.768kHz 9pF
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 9PF SMD JTX310 32.768kHz 9pF
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 9PF SMD JTX310 32.768kHz 9pF
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 7PF SMD JTX310 32.768kHz 7pF
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 7PF SMD JTX310 32.768kHz 7pF
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 7PF SMD JTX310 32.768kHz 7pF
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 9PF SMD JTX310 32.768kHz 9pF
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 9PF SMD JTX310 32.768kHz 9pF
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 9PF SMD JTX310 32.768kHz 9pF
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 7PF SMD JTX310 32.768kHz 7pF
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 7PF SMD JTX310 32.768kHz 7pF
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch Quartz CRYSTAL 32.768KHZ 7PF SMD JTX310 32.768kHz 7pF
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch Quartz CRYSTAL 32.768KHZ 12.5PF SMD JTX310 32.768kHz 12.5pF
