FCD-Tech晶振,AXIS50-11-S50-75.000MHZ,有源晶體振蕩器,6G無線晶振，尺寸20.5x20.5x12mm,頻率75MHZ，有源晶體振蕩器，OSC振蕩器，石英晶體振蕩器，VCXO壓控晶振，進口有源晶振，高性能晶振，低抖動晶振，低電壓晶振，低相位晶振，無線設備晶振，智能家居晶振，網絡設備晶振，通訊模塊晶振，室內路由器晶振，室外基站專用晶振。

有源晶振產品主要應用范圍：無線設備，智能家居，網絡設備，通訊模塊，室內路由器，室外基站，藍牙模塊等領域。FCD-Tech晶振,AXIS50-11-S50-75.000MHZ,有源晶體振蕩器,6G無線晶振.

FCD-Tech晶振,AXIS50-11-S50-75.000MHZ,有源晶體振蕩器,6G無線晶振 參數表

Parameter

min.

typ.

max.

Unit

Condiion

Frequencyrange

60

400

MHz

Standardfrequencies

60/93.333/182/ 186.667/ 213.3/311.040/400.000

MHz

Frequencystability

ppm

Iniial tolerance

ppm

vs. operaing temperature range

± 10

ppm

Operaing temperature range

--20

+50

°C

Note 4

vs. supply voltage variaion

± 0.1

ppm

vs. load change

± 0.1

ppm

long term (aging)

± 2

ppm/year

@ 40°C

Long term aging over 10 years

± 10

ppm

Frequencyadjustmentrange

Electronic Frequency Control (EFC)

± 15

ppm

Note 3

EFC voltage VC

0.15

3.15

V

EFC slope (Df / DVC)

posiive

EFC input impedance

100

?

RFoutput

Signal waveform

Sine Wave LVPECL Complementary

Opion 1 =“S” Opion 1 =“L”

Output level (Opion 1 =“S”)

0

dBm

RL= 50 W(Note 5)

Anharmonics

--40

dB

Opion 1 =“S”

Output Levels (Opion 1 =“L”) HIGH (VOH) LOW (VOL)

2.215 1.470

2.345 1.595

2.420 1.745

V V

RL= 50 W to VS- 2 V Note 2

SupplyvoltageVS

3.15 4.75

3.3 5.0

3.45 5.25

V V

Opion 2 =“33” Opion 2 =“50”

Currentconsump汁on(steady state)

40

mA

Note 6

Operabletemperaturerange

--30

+60

°C

Storagetemperaturerange

--40

+85

°C

Enclosure(seedrawing)

20.5x20.5x12 max.

mm

IEC 60679-3 CO 15

Weight

5

gram

Packing

Pale計e

IEC 60286-3

ESDSensi汁vity

1500

V

HBM, IEC 61000-4-2

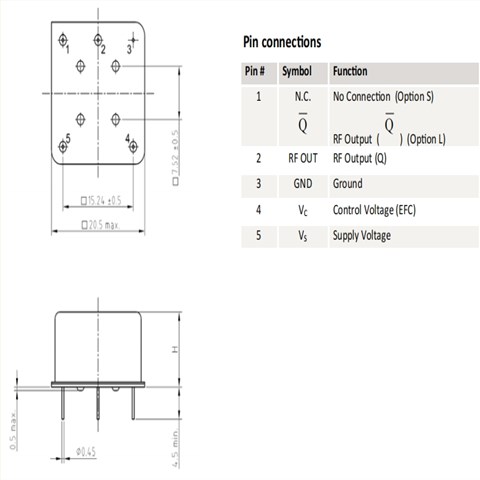

FCD-Tech晶振,AXIS50-11-S50-75.000MHZ,有源晶體振蕩器,6G無線晶振 尺寸圖

產品特性：

具有LVPECL或正弦波輸出的UHF VCXO振蕩器

通孔封裝，尺寸為20.5 x 20.5 12毫米

低抖動和低相位噪聲VCXO振蕩器(無PLL)

頻率范圍:60至400 MHz，提供標準頻率

•
