D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振

產品簡介

D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振，美國進口晶振，ConnorWinfield晶振，康納溫菲爾德晶振，型號：D75A系列，編碼為：D75A-019.2M，頻率為：19.2MHz，工作溫度范圍：0℃至+70℃，小體積晶振尺寸：7.0x5.0x2.0mm封裝，10墊腳貼片晶振，有源晶振，石英晶振，TCXO溫補晶振，溫補晶體振蕩器，石英晶體振蕩器。具有超小型晶振，輕薄型晶振，低抖動晶振，低功耗晶振，低電壓晶振，低耗能晶振，低損耗等特點。具有三態LVCMOS輸出。通過使用模擬溫度補償，D75A能夠在0至70°C的溫度范圍內保持低于1-ppm的穩定性。D75A滿足第3層的要求。應用于：通訊設備晶振，以太網晶振，6G基站，物聯網晶振，GPS定位晶振，導航儀等應用。

產品詳情

D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振，產品特點：

•3.3 Vdc操作，LVCMOS輸出，頻率穩定性：±0.28ppm

•溫度范圍：0至70°C，低抖動<1ps RMS，7050石英晶振

•三態啟用/禁用功能，5x7mm表面安裝封裝

•磁帶和卷軸包裝，符合RoHS/無鉛

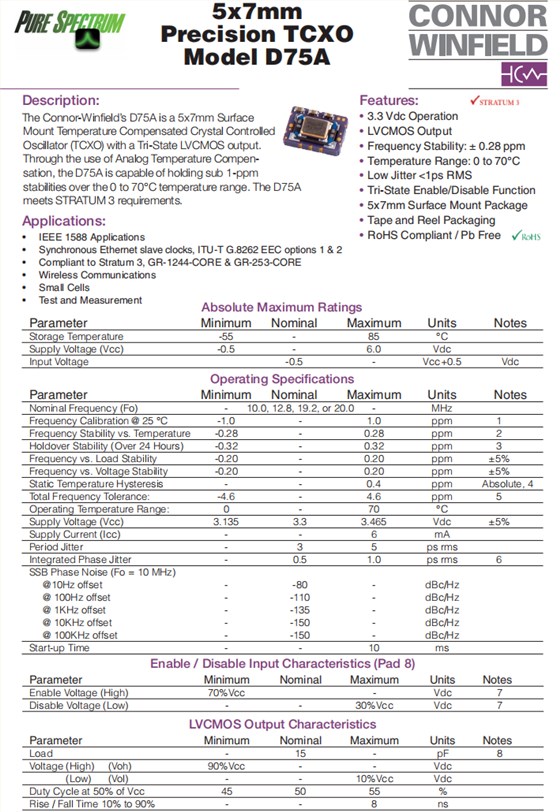

D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振,參數表

Parameter	Minimum	Nominal	Maximum	Units	Notes
Nominal Frequency (Fo)			19.2	MHz
Frequency Calibration @ 25 °C	-1.0	-	1.0	ppm	1
Frequency Stability vs. Temperature	-0.28	-	0.28	ppm	2
Holdover Stability (Over 24 Hours)	-0.32	-	0.32	ppm	3
Frequency vs. Load Stability	-0.2	-	0.20	ppm	±5%
Frequency vs. Voltage Stability	-0.2	-	0.20	ppm	±5%
Static Temperature Hysteresis	-	-	0.4	ppm	Absolute, 4
Total Frequency Tolerance:	-4.6	-	4.6	ppm	5
Operating Temperature Range:	0	-	70	℃
Supply Voltage (Vcc)	3.135	3.3	3.465	Vdd	±5%
Supply Current (Icc)	-	-	6	mA
Period Jitter	-	3	5	ps rms
Integrated Phase Jitter	-	0.5	10	ps rms	6

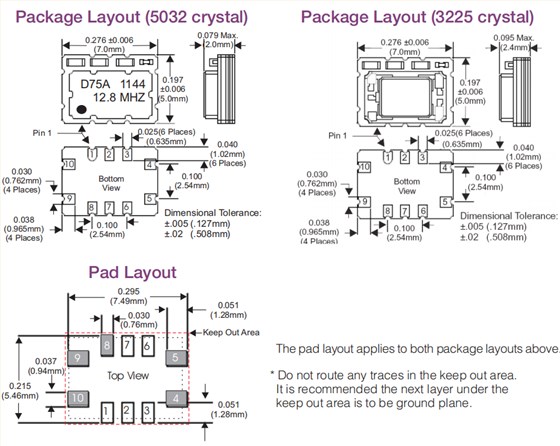

D75A-019.2M,D75A,19.2MHz,7050mm,TCXO,ConnorWinfield低功耗晶振,尺寸圖

原廠代碼	晶振廠家	型號	頻率	工作溫度	包裝/封裝
D75J-050.0M	ConnorWinfield晶振	D75J	50MHz	0°C ~ 70°C	10-SMD, No Lead
D75J-038.88M	ConnorWinfield晶振	D75J	38.88MHz	0°C ~ 70°C	10-SMD, No Lead
D75J-040.0M	ConnorWinfield晶振	D75J	40MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-010.0M	ConnorWinfield晶振	D75A	10MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-019.2M	ConnorWinfield晶振	D75A	19.2MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-012.8M	ConnorWinfield晶振	D75A	12.8MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-020.0M	ConnorWinfield晶振	D75A	20MHz	0°C ~ 70°C	10-SMD, No Lead
D75AS-020.0M	ConnorWinfield晶振	D75AS	20MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-013.0M	ConnorWinfield晶振	D75F	13MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-019.44M	ConnorWinfield晶振	D75F	19.44MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-027.0M	康納溫菲爾德晶振	D75F	27MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-025.0M	ConnorWinfield晶振	D75F	25MHz	0°C ~ 70°C	10-SMD, No Lead
D75J-038.88M-T	ConnorWinfield晶振	D75J	38.88MHz	0°C ~ 70°C	10-SMD, No Lead
D75J-050.0M-T	ConnorWinfield晶振	D75J	50MHz	0°C ~ 70°C	10-SMD, No Lead
D75J-040.0M-T	ConnorWinfield晶振	D75J	40MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-013.0M-T	ConnorWinfield晶振	D75F	13MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-019.44M-T	ConnorWinfield晶振	D75F	19.44MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-025.0M-T	ConnorWinfield晶振	D75F	25MHz	0°C ~ 70°C	10-SMD, No Lead
D75F-027.0M-T	ConnorWinfield晶振	D75F	27MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-010.0M-T	ConnorWinfield晶振	D75A	10MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-012.8M-T	ConnorWinfield晶振	D75A	12.8MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-019.2M-T	ConnorWinfield晶振	D75A	19.2MHz	0°C ~ 70°C	10-SMD, No Lead
D75A-020.0M-T	ConnorWinfield晶振	D75A	20MHz	0°C ~ 70°C	10-SMD, No Lead
D75AS-020.0M-T	ConnorWinfield晶振	D75AS	20MHz	0°C ~ 70°C	10-SMD, No Lead
