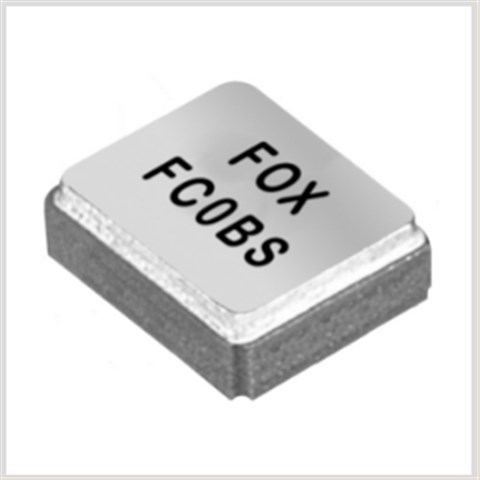

6GWIFI晶振 FOX低損耗晶體 FC0BSFEEN24A576-T3，尺寸1.6mmx1.2mm,頻率24.576MHZ，福克斯晶振，F(xiàn)OXcrystal，四腳貼片晶振，無源貼片晶振，小體積晶振，石英晶振，SMD晶振，石英晶體諧振器，無鉛環保晶振，SMD石英晶體，石英SMD晶振，水晶振動子，無線網絡晶振，6GWIFI晶振，便攜式設備晶振，安防專用晶振，平板電腦晶振，藍牙音響晶振，高品質石英晶振，低損耗貼片晶振，高性能晶振，產品具有小尺寸輕薄型高質量的特點。
石英晶振通過合理的真空退火技術可提高晶振主要參數的穩定性,以及提高石英晶振的年老化特性，特別適合用于無線網絡，6GWIFI，便攜式設備，安防，平板電腦，藍牙音響等領域.6GWIFI晶振 FOX低損耗晶體 FC0BSFEEN24A576-T3.

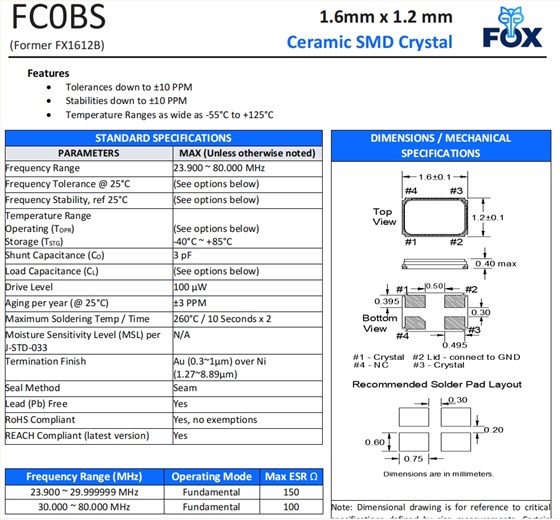

6GWIFI晶振 FOX低損耗晶體 FC0BSFEEN24A576-T3參數表
STANDARD SPECIFICATIONS
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range
24.5760 MHz
Frequency Tolerance @ 25°C
(See options below)
Frequency Stability, ref 25°C
(See options below)
Temperature Range
Operating (TOPR)
Storage (TSTG)
(See options below)
-40°C ~ +85°C
Shunt Capacitance (CO)
3 pF
Load Capacitance (CL)
(See options below)
Drive Level
100 µW
Aging per year (@ 25°C)
±3 PPM
Maximum Soldering Temp / Time
260°C / 10 Seconds x 2
Moisture Sensitivity Level (MSL) per
J-STD-033
N/A
Termination Finish
Au (0.3~1µm) over Ni
(1.27~8.89µm)
Seal Method
Seam
Lead (Pb) Free
Yes
RoHS Compliant
Yes, no exemptions
REACH Compliant (latest version)
Yes

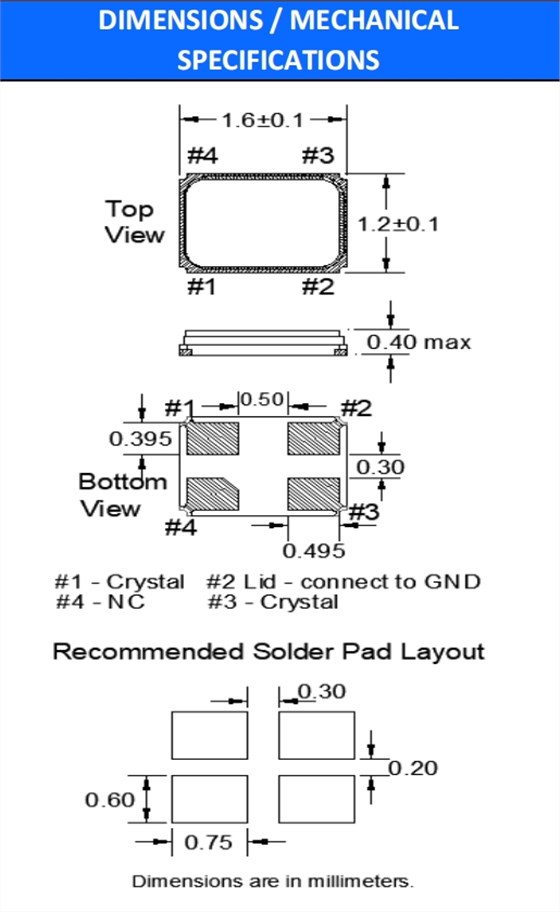

6GWIFI晶振 FOX低損耗晶體 FC0BSFEEN24A576-T3尺寸圖
無源晶振產品特性：
公差低至10PPM
穩定性低至10PPM
溫度范圍寬至-55°C至+125°C
更多相關FOX?？怂咕д裥吞?
| Manufacturer Part Number原廠編碼 | Manufacturer廠家 | Series型號 | Frequency | Frequency Stability頻率穩定度 |
| FSRLF327 | Fox?？怂咕д? | FSRLF | 32.768kHz | - |
| FSXLF327 | Fox福克斯晶振 | FSXLF | 32.768kHz | - |
| FOXSLF/080-20 | Fox?？怂咕д? | HC49SLF | 8MHz | ±50ppm |
| FQ5032B-12.000 | Fox?？怂咕д? | C5BQ | 12MHz | ±30ppm |
| FQ5032B-25.000 | Fox福克斯晶振 | C5BQ | 25MHz | ±30ppm |
| FSMLF327 | Fox?？怂咕д? | FSMLF | 32.768kHz | - |
| FQ7050B-8.000 | Fox?？怂咕д? | C7BQ | 8MHz | ±30ppm |
| FQ7050B-7.3728 | Fox?？怂咕д? | C7BQ | 7.3728MHz | ±30ppm |
| FQ1045A-6.000 | Fox?？怂咕д? | FQ1045A | 6MHz | ±30ppm |
| FQ1045A-4.000 | Fox?？怂咕д? | FQ1045A | 4MHz | ±30ppm |
| FOXLF024S | Fox?？怂咕д? | HC49ULF | 2.4576MHz | ±50ppm |
| FOXSDLF/160-20 | Fox?？怂咕д? | HC49SDLF | 16MHz | ±50ppm |
| FOXSDLF/200-20 | Fox福克斯晶振 | HC49SDLF | 20MHz | ±50ppm |
| FOXSDLF/080-20 | Fox?？怂咕д? | HC49SDLF | 8MHz | ±50ppm |
| FOXSDLF/250F-20 | Fox福克斯晶振 | HC49SDLF | 25MHz | ±50ppm |
| FOXSDLF/147-20 | Fox?？怂咕д? | HC49SDLF | 14.7456MHz | ±50ppm |
| FOXSDLF/240F-20 | Fox福克斯晶振 | HC49SDLF | 24MHz | ±50ppm |
| FOXSDLF/080R-20/TR | Fox?？怂咕д? | HC49SDLF | 8MHz | ±50ppm |
| FQ3225B-12.000 | Fox?？怂咕д? | FQ3225B | 12MHz | ±50ppm |
| FOXSLF/200-20 | Fox?？怂咕д? | HC49SLF | 20MHz | ±50ppm |
| FOXSLF/120-20 | Fox福克斯晶振 | HC49SLF | 12MHz | ±50ppm |
| FOXSLF/040 | Fox?？怂咕д? | HC49SLF | 4MHz | ±50ppm |
| FOXSLF/184-20 | Fox福克斯晶振 | HC49SLF | 18.432MHz | ±50ppm |
| FOXSLF/036S | Fox?？怂咕д? | HC49SLF | 3.579545MHz | ±50ppm |
| FOXSLF/221-20 | Fox福克斯晶振 | HC49SLF | 22.1184MHz | ±50ppm |
| FOXSLF/100-20 | Fox?？怂咕д? | HC49SLF | 10MHz | ±50ppm |
| FX252BS-16.000 | Fox福克斯晶振 | FX252B | 16MHz | ±50ppm |
| FQ5032B-20.000 | Fox?？怂咕д? | C5BQ | 20MHz | ±30ppm |
| FQ7050B-6.000 | Fox?？怂咕д? | C7BQ | 6MHz | ±30ppm |
| FOXLF100-20 | Fox福克斯晶振 | HC49ULF | 10MHz | ±50ppm |
| FOXLF200-20 | Fox?？怂咕д? | HC49ULF | 20MHz | ±50ppm |
| FOXLF080-20 | Fox福克斯晶振 | HC49ULF | 8MHz | ±50ppm |
| FOXLF115-20 | Fox?？怂咕д? | HC49ULF | 11.0592MHz | ±50ppm |
| NC38LF-327 | Fox福克斯晶振 | NC38LF | 32.768kHz | - |
| FOXLF040 | Fox?？怂咕д? | HC49ULF | 4MHz | ±50ppm |
| NC26LF-327 | Fox?？怂咕д? | NC26LF | 32.768kHz | - |
| FOXLF036S | Fox福克斯晶振 | HC49ULF | 3.579545MHz | ±50ppm |
| FQ3225B-25.000 | Fox?？怂咕д? | FQ3225B | 25MHz | ±50ppm |
| FQ1045A-3.6864 | Fox福克斯晶振 | FQ1045A | 3.6864MHz | ±30ppm |
| FOXLF018S | FOX crystal | HC49ULF | 1.8432MHz | ±50ppm |
| FOXSDLF/036S | Fox?？怂咕д? | HC49SDLF | 3.579545MHz | ±50ppm |
| FOXSDLF/120R-20/TR | Fox福克斯晶振 | HC49SDLF | 12MHz | ±50ppm |
| FSRLF327-6 | Fox?？怂咕д? | FSRLF | 32.768kHz | - |
| FOXLF115 | Fox福克斯晶振 | HC49ULF | 11.0592MHz | ±50ppm |
| FQ3225B-24.000 | Fox?？怂咕д? | FQ3225B | 24MHz | ±50ppm |
| FOXLF0368S | Fox福克斯晶振 | HC49ULF | 3.6864MHz | ±50ppm |
| FOXSDLF/184-20 | Fox?？怂咕д? | HC49SDLF | 18.432MHz | ±50ppm |
| FOXSDLF/060-20 | Fox?？怂咕д? | HC49SDLF | 6MHz | ±50ppm |
| FOXSDLF/040 | Fox?？怂咕д? | HC49SDLF | 4MHz | ±50ppm |
| FOXSDLF/221-20 | Fox?？怂咕д? | HC49SDLF | 22.1184MHz | ±50ppm |
| FOXSDLF/073-20 | Fox?？怂咕д? | HC49SDLF | 7.3728MHz | ±50ppm |
| FOXSDLF/049-20 | Fox福克斯晶振 | HC49SDLF | 4.9152MHz | ±50ppm |
| FOXSDLF/250FR-20/TR | Fox?？怂咕д? | HC49SDLF | 25MHz | ±50ppm |
| FX425B-12.000 | Fox?？怂咕д? | FX425B | 12MHz | ±50ppm |
| FQ5032B-18.432 | Fox福克斯晶振 | C5BQ | 18.432MHz | ±30ppm |
| FX252BS-24.000 | Fox?？怂咕д? | FX252B | 24MHz | ±50ppm |
| FQ7050BR-7.3728 | Fox福克斯晶振 | C7BQ | 7.3728MHz | ±50ppm |
| FX122-327 | Fox?？怂咕д? | FX122 | 32.768kHz | - |
| FOXSLF/115-20 | Fox?？怂咕д? | HC49SLF | 11.0592MHz | ±50ppm |
