FJ1920013,四腳貼片晶振,LVCMOS石英晶體振蕩器,物料編碼為FJ1920013,型號為FJ晶振,頻率為19.2MHZ,輸出為LVCMOS,電壓為3.3V,精度為±25ppm,工作溫度范圍為-40℃~85℃,尺寸為2.5*2.0mm,四腳貼片晶振,晶振廠家,臺產晶振,OSC晶振,四腳晶體,LVCMOS石英晶體振蕩器,SMD晶振,百利通亞陶晶振,2520振蕩器,2520晶振,有源晶體振蕩器,特點:低電源電壓,低差損,低損耗,低相控,應用在數碼相機,數碼游戲機,數碼玩具等產品上。

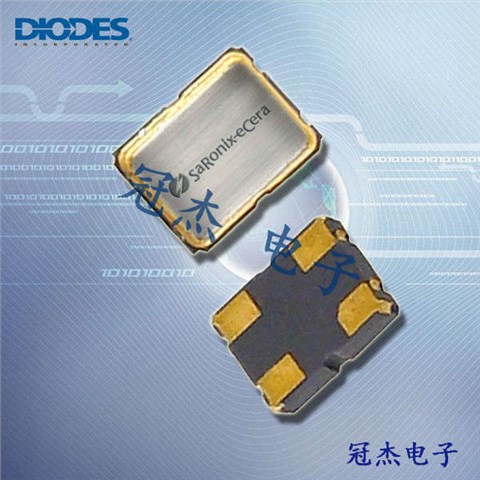

FJ1920013,四腳貼片晶振,LVCMOS石英晶體振蕩器
參數表 | |
型號 | FJ |
頻率 | 19.2MHZ |
精度 | ±25ppm |
電壓 | 3.3.V |
工作溫度 | -40℃-85℃ |
輸出 | LVCMOS |
FJ1920013,四腳貼片晶振,LVCMOS石英晶體振蕩器
物料編碼 | 冠杰電子 | 型號 | 頻率 | 輸出 | 電壓 | 工作精度 |
FJ2400012 | XTALOSCXO24.0000MHZCMOSSMD | FJ | 24MHz | CMOS | 3.3V | -40°C~85°C |
FJ2400002 | XTALOSCXO24.0000MHZLVCMOS | FJ | 24MHz | LVCMOS | 1.8V | -40°C~85°C |
FJ2500009 | XTALOSCXO25.0000MHZLVCMOS | FJ | 25MHz | LVCMOS | 3.3V | -40°C~85°C |
FJ2400011 | XTALOSCXO24.0000MHZLVCMOS | FJ | 24MHz | LVCMOS | 3.3V | -40°C~85°C |
FJ5000006 | XTALOSCXO50.0000MHZCMOSSMD | FJ | 50MHz | CMOS | 3.3V | -40°C~85°C |
FJ2500028Q | XTALOSCXO25.0000MHZLVCMOS | FJ | 25MHz | LVCMOS | 3.3V | -40°C~125°C |
FJ2450008Z | XTALOSCXO24.5760MHZLVCMOS | FJ | 24.576MHz | LVCMOS | 3.3V | -40°C~85°C |
FJ2600023Q | XTALOSCXO26.0000MHZLVCMOS | FJ | 26MHz | LVCMOS | 3.3V | -40°C~105°C |
FJ2700024Q | XTALOSCXO27.0000MHZLVCMOS | FJ | 27MHz | LVCMOS | 1.8V | -40°C~85°C |
FJ4800022Z | CRYSTALOSCILLATORSEAM2520T&R | FJ | 48MHz | LVCMOS | 3.3V | -40°C~85°C |
FJ1120001Z | XTALOSCXO11.2896MHZLVCMOS | FJ | 11.2896MHz | LVCMOS | 3.3V | -40°C~85°C |
FJ2500036Z | XTALOSCXO25.0000MHZLVCMOS | FJ | 25MHz | LVCMOS | 1.8V | -20°C~70°C |
FJ1600002 | XTALOSCXO16.0000MHZLVCMOS | FJ | 16MHz | LVCMOS | 3.3V | -20°C~70°C |
FJ0200004 | XTALOSCXO2.0000MHZCMOSSMD | FJ | 2MHz | CMOS | 2.5V | -40°C~85°C |
FJ2500042 | XTALOSCXO25.000625MHZCMOS | FJ | 25.000625MHz | CMOS | 1.8V | -40°C~85°C |
FJ1920013 | XTALOSCXO19.2000MHZLVCMOS | FJ | 19.2MHz | LVCMOS | 3.3V | -40°C~85°C |
FJ2400029 | XTALOSCXO24.0000MHZLVCMOS | FJ | 24MHz | LVCMOS | 2.5V | -40°C~85°C |
FJ8960001Q | XTALOSCXO89.6000MHZCMOSSMD | FJ | 89.6MHz | CMOS | 1.8V | -40°C~105°C |
FJA000007Q | XTALOSCXO100.0000MHZCMOSSMD | FJ | 100MHz | CMOS | 3.3V | -40°C~85°C |
FJE850001Q | XTALOSCXO148.5000MHZCMOSSMD | FJ | 148.5MHz | CMOS | 1.8V | -40°C~105°C |
FJA000003 | XTALOSCXO100.0000MHZCMOSSMD | FJ | 100MHz | CMOS | 1.8V | -20°C~70°C |
FJA000001 | XTALOSCXO100.0000MHZCMOSSMD | FJ | 100MHz | CMOS | 3.3V | -40°C~85°C |
FJC500001 | XTALOSCXO125.0000MHZCMOSSMD | FJ | 125MHz | CMOS | 3.3V | -40°C~85°C |
FJC500002 | XTALOSCXO125.0000MHZCMOSSMD | FJ | 125MHz | CMOS | 3.3V | -40°C~85°C |
FJA000002 | XTALOSCXO100.0000MHZLVCMOS | FJ | 100MHz | LVCMOS | 1.8V | -20°C~70°C |
FJ7200001 | XTALOSCXO72.0000MHZCMOSSMD | FJ | 72MHz | CMOS | 1.8V | -20°C~75°C |
FJ7500003 | XTALOSCXO75.0000MHZCMOSSMD | FJ | 75MHz | CMOS | 1.8V | -20°C~70°C |
