FL2500123Z,FL系列晶振,百利通亞陶石英晶振,物料編碼為FL2500123Z，型號為FL系列晶振，頻率為25MHz，精度為±50ppm，負載電容為20pF，工作溫度范圍為-20℃~80℃，尺寸為3.2*2.5mm，SMD晶振，無源晶振，百利通亞陶石英晶振，石英晶體諧振器，臺產晶振，3225晶振，四腳晶振，貼片晶振，臺產晶振，特點：超小型，輕薄型，高性能，高溫度，被應用在衛星發射站，衛星電話，廣播電視發射塔和電梯等大型產品。
FL2500123Z,FL系列晶振,百利通亞陶石英晶振
參數表
型號
FL
頻率
25MHZ
精度
±50ppm
負載電容
20pF
工作溫度
-20℃-80℃

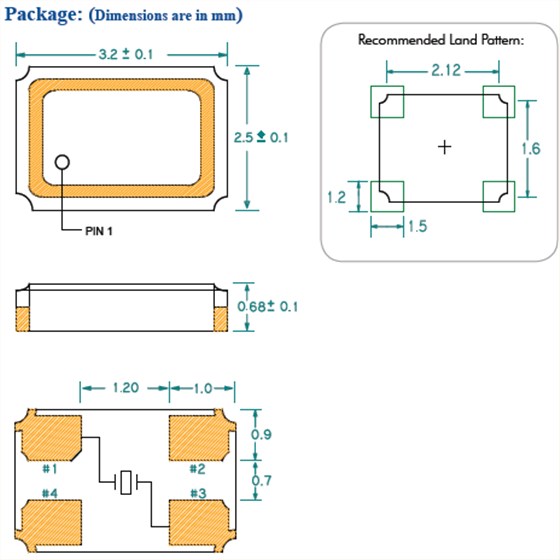

尺寸
3.2*2.5mm
FL2500123Z,FL系列晶振,百利通亞陶石英晶振
| 物料編碼 | 石英晶體諧振器 | 型號 | 頻率 | 精度 | 負載電容 | 工作溫度 | 包裝 |
| FL2500123Z | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±50ppm | 20pF | -20°C~80°C | 4-SMD,NoLead |
| FL2500316Z | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±20ppm | 20pF | -40°C~100°C | 4-SMD,NoLead |
| FL2400022 | CRYSTAL24.0000MHZ10PFSMD | FL | 24MHz | ±10ppm | 10pF | -25°C~85°C | 4-SMD,NoLead |
| FL2500133 | CRYSTAL25.0000MHZ18PFSMD | FL | 25MHz | ±20ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL1200112 | CRYSTAL12.0000MHZ18PFSMD | FL | 12MHz | ±30ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL2400097 | CRYSTAL24.0000MHZ9PFSMD | FL | 24MHz | ±15ppm | 9pF | -40°C~85°C | 4-SMD,NoLead |
| FL1200138 | CRYSTAL12.0000MHZ8PFSMD | FL | 12MHz | ±50ppm | 8pF | -40°C~125°C | 4-SMD,NoLead |
| FL4000157Z | CRYSTAL40.0000MHZ15PFSMD | FL | 40MHz | ±10ppm | 15pF | -20°C~85°C | 4-SMD,NoLead |
| FL3840006 | CRYSTAL38.4000MHZ10PFSMD | FL | 38.4MHz | ±10ppm | 10pF | -30°C~85°C | 4-SMD,NoLead |
| FL4000205Z | CRYSTAL40.0000MHZ10PFSMD | FL | 40MHz | ±10ppm | 10pF | -20°C~70°C | 4-SMD,NoLead |
| FL1920031 | CRYSTAL19.2000MHZ8.5PFSMD | FL | 19.2MHz | ±10ppm | 8.5pF | -20°C~70°C | 4-SMD,NoLead |
| FL3200037 | CRYSTAL32.0000MHZ8PFSMD | FL | 32MHz | ±15ppm | 8pF | -20°C~70°C | 4-SMD,NoLead |
| FL3840015Z | CRYSTAL38.4000MHZ10PFSMD | FL | 38.4MHz | ±10ppm | 10pF | -30°C~85°C | 4-SMD,NoLead |
| FL5000058Z | CRYSTAL50.0000MHZ10PFSMD | FL | 50MHz | ±15ppm | 10pF | -40°C~85°C | 4-SMD,NoLead |
| FL1600087 | CRYSTAL16.0000MHZ20PFSMD | FL | 16MHz | ±15ppm | 20pF | 0°C~85°C | 4-SMD,NoLead |
| FL400WFMR1 | CRYSTAL40.0000MHZ10PFSMD | FL | 40MHz | ±10ppm | 10pF | -20°C~85°C | 4-SMD,NoLead |
| FL2400081 | CRYSTAL24.0000MHZ18PFSMD | FL | 24MHz | ±30ppm | 18pF | -20°C~70°C | 4-SMD,NoLead |
| FL1000002 | CRYSTAL10.0000MHZ12PFSMD | FL | 10MHz | ±25ppm | 12pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500047 | CRYSTAL25.0000MHZ18PFSMD | FL | 25MHz | ±20ppm | 18pF | -20°C~70°C | 4-SMD,NoLead |
| FL520WFMT1 | CRYSTAL52.0000MHZ12PFSMD | FL | 52MHz | ±17ppm | 12pF | -40°C~100°C | 4-SMD,NoLead |
| FL1200060 | CRYSTAL12.0000MHZ18PFSMD | FL | 12MHz | ±30ppm | 18pF | -20°C~70°C | 4-SMD,NoLead |
| FL2700102Z | CRYSTAL27.0000MHZ12PFSMD | FL | 27MHz | ±30ppm | 12pF | -20°C~70°C | 4-SMD,NoLead |
| FL2500283Z | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±30ppm | 20pF | -20°C~70°C | 4-SMD,NoLead |
| FL4800063Z | CRYSTAL48.0000MHZ8PFSMD | FL | 48MHz | ±15ppm | 8pF | -20°C~70°C | 4-SMD,NoLead |
| FL2000059 | CRYSTAL20.0000MHZ9PFSMD | FL | 20MHz | ±10ppm | 9pF | -30°C~85°C | 4-SMD,NoLead |
| FL2600176 | CRYSTAL26.0000MHZ10PFSMD | FL | 26MHz | ±40ppm | 10pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500221 | CRYSTAL25.0000MHZ12PFSMD | FL | 25MHz | ±25ppm | 12pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500158 | CRYSTAL25.0000MHZ12PFSMD | FL | 25MHz | ±20ppm | 12pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500333 | CRYSTAL25.0000MHZ18PFSMD | FL | 25MHz | ±20ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL4000023 | CRYSTALSURFACEMOUNT | FL | - | - | - | - | 4-SMD,NoLead |
