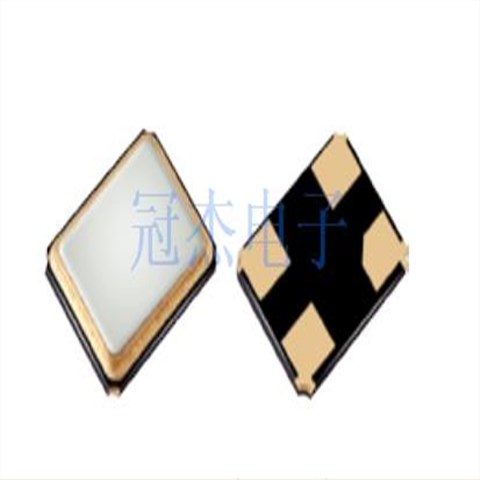

FL3200037,臺產百利通亞陶晶振,石英晶體諧振器，物料編碼為FL3200037，型號為FL晶振，頻率為32MHz，精度為±15ppm，負載電容為8pF，尺寸為3.2*2.5mm，工作溫度為-20℃~70℃，四腳貼片晶振，石英晶體諧振器，臺產晶振，3225晶振，臺產晶振，無源晶振，百利通亞陶晶振，石英晶振，被應用在機頂盒，DVD，無線電源，5G網域，6G網域等產品。
FL3200037,臺產百利通亞陶晶振,石英晶體諧振器
參數表
型號
FL
頻率
32MHZ
精度
±15ppm
負載電容
8pF
工作溫度
-20℃-70℃

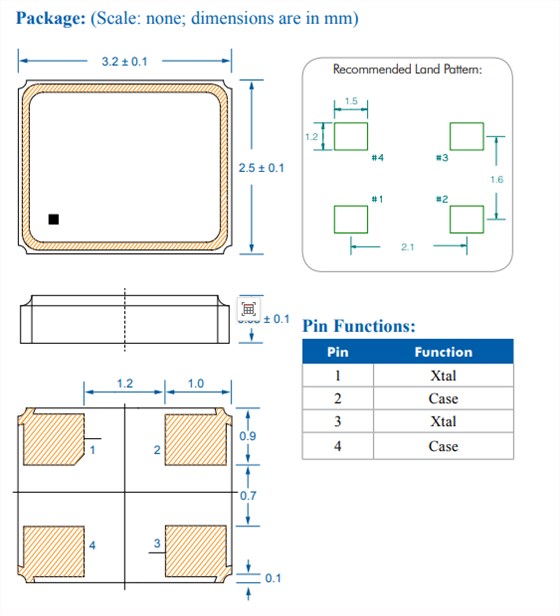

尺寸
3.2*2.5mm
FL3200037,臺產百利通亞陶晶振,石英晶體諧振器
| 物料編碼 | 石英晶振 | 型號 | 頻率 | 精度 | 負載電容 | 工作溫度 | 包裝 |
| FL2500123Z | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±50ppm | 20pF | -20°C~80°C | 4-SMD,NoLead |
| FL2500316Z | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±20ppm | 20pF | -40°C~100°C | 4-SMD,NoLead |
| FL2400022 | CRYSTAL24.0000MHZ10PFSMD | FL | 24MHz | ±10ppm | 10pF | -25°C~85°C | 4-SMD,NoLead |
| FL2500133 | CRYSTAL25.0000MHZ18PFSMD | FL | 25MHz | ±20ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL1200112 | CRYSTAL12.0000MHZ18PFSMD | FL | 12MHz | ±30ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL2400097 | CRYSTAL24.0000MHZ9PFSMD | FL | 24MHz | ±15ppm | 9pF | -40°C~85°C | 4-SMD,NoLead |
| FL1200138 | CRYSTAL12.0000MHZ8PFSMD | FL | 12MHz | ±50ppm | 8pF | -40°C~125°C | 4-SMD,NoLead |
| FL4000157Z | CRYSTAL40.0000MHZ15PFSMD | FL | 40MHz | ±10ppm | 15pF | -20°C~85°C | 4-SMD,NoLead |
| FL4800076 | CRYSTAL48.0000MHZ12PFSMD | FL | 48MHz | ±15ppm | 12pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500167 | CRYSTAL25.000625MHZ18PFSMD | FL | 25.000625MHz | ±20ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500038 | CRYSTAL25.0000MHZ18PFSMD | FL | 25MHz | ±20ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500120 | CRYSTAL25.0000MHZ12PFSMD | FL | 25MHz | ±20ppm | 12pF | -40°C~100°C | 4-SMD,NoLead |
| FL2500309 | CRYSTAL25.0000MHZ18PFSMD | FL | 25MHz | ±30ppm | 18pF | -40°C~105°C | 4-SMD,NoLead |
| FL2400041 | CRYSTAL24.0000MHZ18PFSMD | FL | 24MHz | ±30ppm | 18pF | -20°C~70°C | 4-SMD,NoLead |
| FL2500137Z | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±30ppm | 20pF | -20°C~70°C | 4-SMD,NoLead |
| FL2400075 | CRYSTAL24.0000MHZ18PFSMD | FL | 24MHz | ±20ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL2500187 | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±30ppm | 20pF | 0°C~85°C | 4-SMD,NoLead |
| FL2500108 | CRYSTAL25.0000MHZ18PFSMD | FL | 25MHz | ±20ppm | 18pF | -20°C~85°C | 4-SMD,NoLead |
| FL1600043 | CRYSTAL16.0000MHZ9PFSMD | FL | 16MHz | ±10ppm | 9pF | -20°C~85°C | 4-SMD,NoLead |
| FL2500050 | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±20ppm | 20pF | -40°C~85°C | 4-SMD,NoLead |
| FL374WFBR1 | CRYSTAL37.4000MHZ12PFSMD | FL | 37.4MHz | ±10ppm | 12pF | -20°C~85°C | 4-SMD,NoLead |
| FL400WFMT1 | CRYSTAL40.0000MHZ12PFSMD | FL | 40MHz | ±17ppm | 12pF | -40°C~100°C | 4-SMD,NoLead |
| FL2400072 | CRYSTAL24.0000MHZ18PFSMD | FL | 24MHz | ±30ppm | 18pF | -40°C~85°C | 4-SMD,NoLead |
| FL1600080 | CRYSTAL16.0000MHZ10PFSMD | FL | 16MHz | ±10ppm | 10pF | -20°C~70°C | 4-SMD,NoLead |
| FL2400067 | CRYSTAL24.0000MHZ18PFSMD | FL | 24MHz | ±20ppm | 18pF | -20°C~70°C | 4-SMD,NoLead |
| FL3200022 | CRYSTAL32.0000MHZ16PFSMD | FL | 32MHz | ±10ppm | 16pF | -20°C~70°C | 4-SMD,NoLead |
| FL260WFMR1 | CRYSTAL26.0000MHZ9PFSMD | FL | 26MHz | ±10ppm | 9pF | -20°C~85°C | 4-SMD,NoLead |
| FL2500213Z | CRYSTAL25.0000MHZ20PFSMD | FL | 25MHz | ±20ppm | 20pF | -40°C~85°C | 4-SMD,NoLead |
| FL2000038 | CRYSTAL20.0000MHZ16PFSMD | FL | 20MHz | ±10ppm | 16pF | -20°C~85°C | 4-SMD,NoLead |
| FL374WFBR2 | CRYSTAL37.4000MHZ16PFSMD | FL | 37.4MHz | ±10ppm | 16pF | -20°C~85°C | 4-SMD,NoLead |
