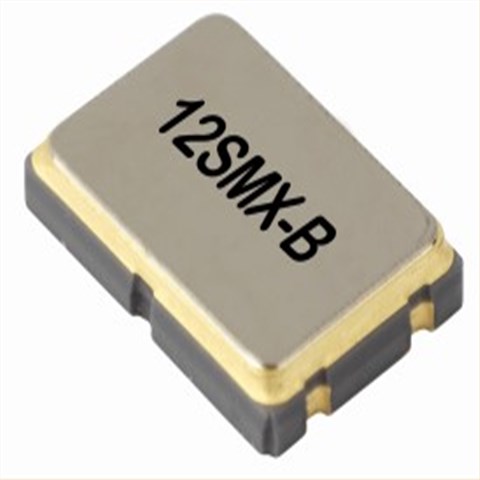

LFXTAL056516REEL,12SMX-B,8MHz,IQD伊克德晶振,電信晶振，英國進口晶振，IQD伊克德晶振，型號：12SMX-B系列，編碼為：LFXTAL056516REEL，頻率為：8.0000MHz，負載電容：12PF，頻率穩定性：±30ppm，頻率容差：±30ppm，工作溫度范圍：-20℃至+70℃，小體積晶振尺寸：7.0x5.0mm封裝，四腳貼片晶振，7050石英晶振，無源晶振，石英晶體諧振器，SMD石英晶體，無鉛環保晶振。具有超小型，輕薄型，高性能，高品質等特點。應用于：通訊設備晶振，物聯網晶振，汽車電子晶振，醫療設備晶振，智能家居等應用。
LFXTAL056516REEL,12SMX-B,8MHz,IQD伊克德晶振,電信晶振,參數表

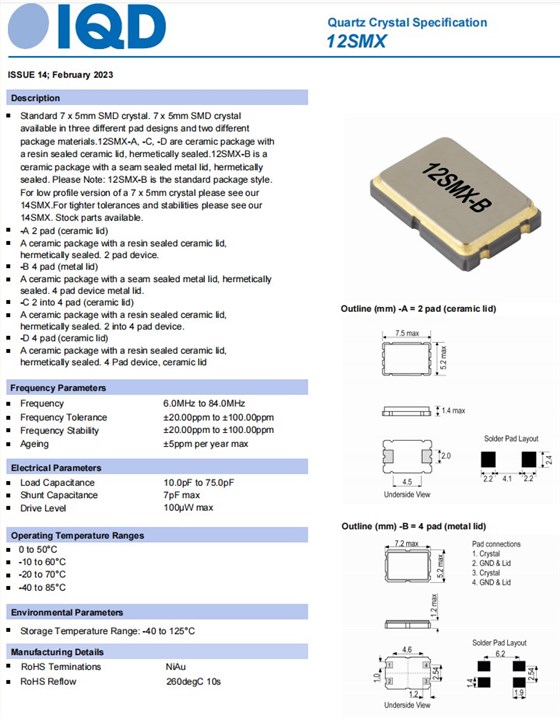

12SMX 頻率參數
Frequency
8.000MHz
Frequency Tolerance
±20.00ppm to ±100.00ppm
Frequency Stability
±20.00ppm to ±100.00ppm
Ageing
±5ppm per year max
Electrical Parameters
Load Capacitance
10.0pF to 75.0pF
Shunt Capacitance
7pF max
Drive Level
100uW max
Operating Temperature Ranges
0 to 50℃
-10 to 60℃
-20 to 70℃
-40 to 85℃
Environmental Parameters
Storage Temperature Range:
-40 to 125℃
Manufacturing Details
RoHS Terminations
NiAu
RoHS Reflow
260degC 10s
| 石英晶體 | 品牌 | 描述 | 系列 |
| LFXTAL026392REEL | IQD晶振 | CRYSTAL 16.0000MHZ 16PF SMD | 12SMX-B |
| LFXTAL026384REEL | IQD晶振 | CRYSTAL 12.0000MHZ 16PF SMD | 12SMX-B |
| LFXTAL026394REEL | IQD晶振 | CRYSTAL 20.0000MHZ 16PF SMD | 12SMX-B |
| LFXTAL056516REEL | IQD晶振 | CRYSTAL 8.0000MHZ 12PF SMD | 12SMX-B |
| LFXTAL026380REEL | IQD晶振 | CRYSTAL 8.0000MHZ 16PF SMD | 12SMX-B |
| LFXTAL026388REEL | IQD晶振 | CRYSTAL 14.7456MHZ 16PF SMD | 12SMX-B |
| LFXTAL026382REEL | IQD晶振 | CRYSTAL 11.0592MHZ 16PF SMD | 12SMX-B |
| LFXTAL026392BULK | IQD晶振 | CRYSTAL 16.0000MHZ 16PF SMD | 12SMX-B |
| LFXTAL026384BULK | IQD晶振 | CRYSTAL 12.0000MHZ 16PF SMD | 12SMX-B |
| LFXTAL026394BULK | IQD晶振 | CRYSTAL 20.0000MHZ 16PF SMD | 12SMX-B |
| LFXTAL026504REEL | 晶振廠家 | CRYSTAL 30.0000MHZ 16PF SMD | 12SMX-B |
| LFXTAL026380BULK | IQD晶振 | CRYSTAL 8.0000MHZ 16PF SMD | 12SMX-B |
| LFXTAL026386REEL | IQD晶振 | CRYSTAL 14.31818MHZ 16PF SMD | 12SMX-B |
| LFXTAL026396REEL | IQD晶振 | CRYSTAL 24.5760MHZ 16PF SMD | 12SMX-B |
| LFXTAL026382BULK | IQD晶振 | CRYSTAL 11.0592MHZ 16PF SMD | 12SMX-B |
| LFXTAL026388BULK | IQD晶振 | CRYSTAL 14.7456MHZ 16PF SMD | 12SMX-B |
| LFXTAL026396BULK | IQD晶振 | CRYSTAL 24.5760MHZ 16PF SMD | 12SMX-B |
| LFXTAL026504BULK | IQD晶振 | CRYSTAL 30.0000MHZ 16PF SMD | 12SMX-B |
