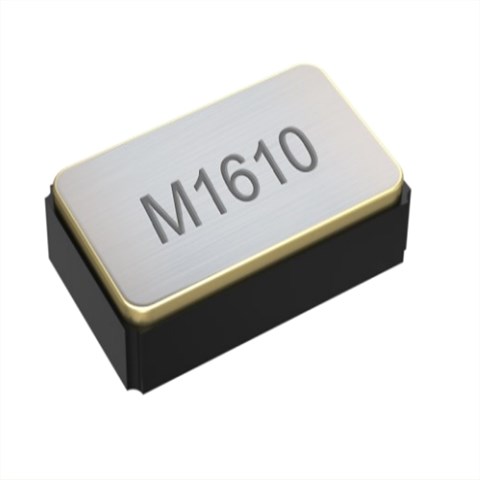

彼得曼汽車應用晶振,6G無線設備晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C)，尺寸1.61.0mm,頻率32.768KHZ，德國彼得曼晶振，PETERMANN無源晶振，兩腳貼片晶振，無源貼片晶振，SMD晶振，時鐘晶振，32.768KHZ晶振，石英晶體，石英貼片晶振，輕薄型晶體，1610mm無源晶振，32.768KHZ音叉晶體，低功耗晶振，高質量晶振，無線應用晶振，可穿戴設備晶振，通信產品專用晶振，汽車應用晶振，小型設備晶振，藍牙耳機晶振，時計晶振，具有低功耗輕薄型的特點。
無源晶振產品很適合用于無線設備、可穿戴設備、通信、汽車，藍牙耳機，時計產品等，還可以廣泛用于數碼相機等領域。彼得曼汽車應用晶振,6G無線設備晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C).

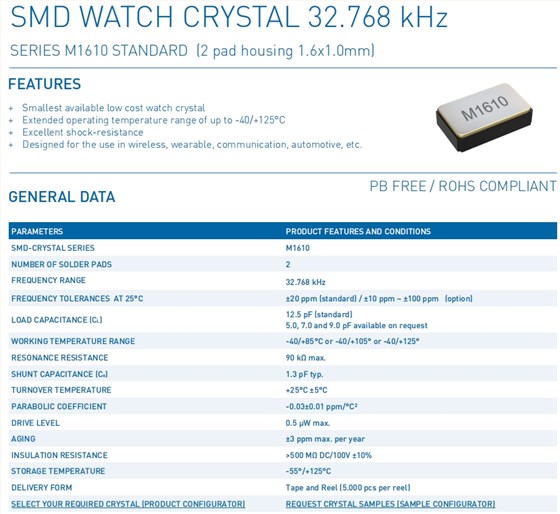

彼得曼汽車應用晶振,6G無線設備晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C)參數表
PARAMETERS
PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES
M1610
NUMBER OF SOLDER PADS
2
FREQUENCY RANGE
32.768 kHz
FREQUENCY TOLERANCES AT 25°C
±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)
12.5 pF (standard)
5.0, 7.0 and 9.0 pF available on request
WORKING TEMPERATURE RANGE
-40/+85°C or -40/+105° or -40/+125°
RESONANCE RESISTANCE
90 kΩ max.
SHUNT CAPACITANCE (Co)
1.3 pF typ.
TURNOVER TEMPERATURE
+25°C ±5°C
PARABOLIC COEFFICIENT
-0.03±0.01 ppm/°C²
DRIVE LEVEL
0.5 μW max.
AGING
±3 ppm max. per year
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE
-55°/+125°C
DELIVERY FORM
Tape and Reel (5.000 pcs per reel)

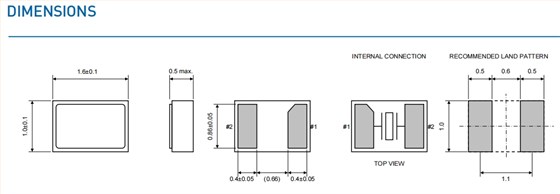

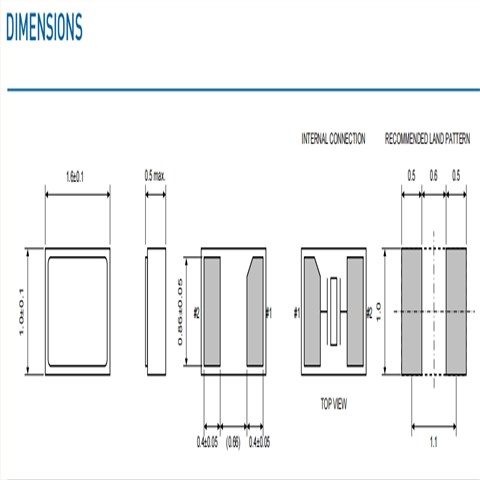

彼得曼汽車應用晶振,6G無線設備晶振,M1610-32.768kHz-±20ppm-12.5pF (-40/+85°C)尺寸圖
石英晶體產品特性：
最小的低成本手表水晶
擴展工作溫度范圍高達-40/+125°C
優秀的防震
更多相關德國彼得曼PETERMANN晶振型號，請咨詢我們！
