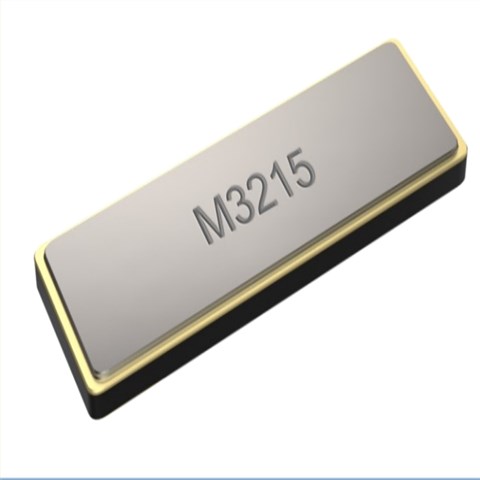

M3215-32.768kHz-±20ppm-12.5pF/6G通信晶振/彼得曼無源晶體，尺寸尺寸3.2*1.5mm,頻率32.768KHZ，PETERMANN晶振，德國進口晶振，石英晶體，無源晶振，輕薄型晶振，水晶振動子，音叉晶體，無源貼片晶振，貼片石英晶振，石英晶體諧振器，32.768K晶振，環保晶振，無線應用晶振，移動通信晶振，智能手機晶振，平板電腦晶振，藍牙耳機晶振，數碼相機專用晶振，娛樂設備晶振，3215mm貼片晶振，兩腳貼片晶振，高質量音叉晶體，32.768KHZ無源晶振，高性能晶振，低成本晶振，具有輕薄型高性能的特點。
SMD晶振產品比較適合用于優秀的時鐘發生器的CPU，無線，移動通信，平板電腦，藍牙耳機，數碼相機，測試與測量，娛樂設備等領域。M3215-32.768kHz-±20ppm-12.5pF/6G通信晶振/彼得曼無源晶體.

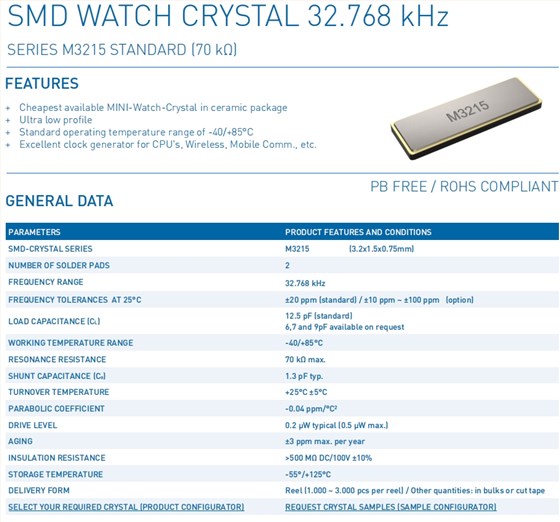

M3215-32.768kHz-±20ppm-12.5pF/6G通信晶振/彼得曼無源晶體參數表
PARAMETERS
PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES
M3215 (3.2*1.5*0.75mm)
NUMBER OF SOLDER PADS
2
FREQUENCY RANGE
32.768 kHz
FREQUENCY TOLERANCES AT 25°C
±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)
12.5 pF (standard)
6，7 and 9.0 pF available on request
WORKING TEMPERATURE RANGE
-40/+85°C
RESONANCE RESISTANCE
70 kΩ max.
SHUNT CAPACITANCE (Co)
1.3 pF typ.
TURNOVER TEMPERATURE
+25°C ±5°C
PARABOLIC COEFFICIENT
-0.04 ppm/°C²
DRIVE LEVEL
0.2 µW typical (0.5 μW max.)
AGING
±3 ppm max. per year
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE
-55°/+125°C
DELIVERY FORM
Reel (1.000 ~ 3.000 pcs per reel) / Other quantities: in bulks or cut tape

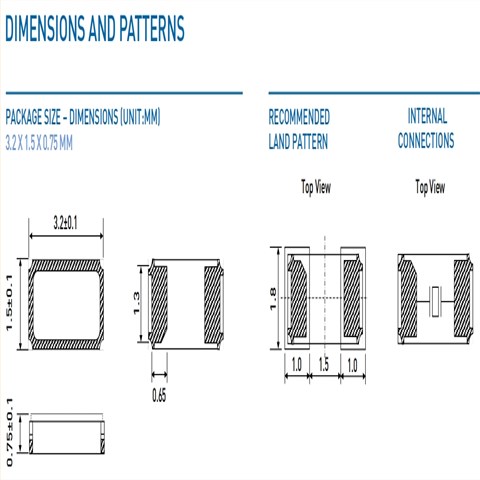

M3215-32.768kHz-±20ppm-12.5pF/6G通信晶振/彼得曼無源晶體尺寸圖
無源晶振產品特性：
最便宜的迷你手表
水晶陶瓷包裝
超低標準
工作溫度范圍-40/+85°C
更多相關德國彼得曼晶振PETERMANNCrystal型號，請咨詢我們！
