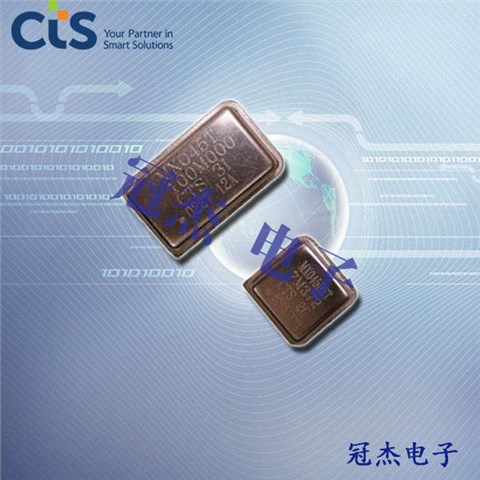

西迪斯晶振,MXO45T-6I-27M000000,石英晶體振蕩器,6G網絡設備晶振，尺寸為20.8×13.2×5.1mm,頻率27MHZ，石英晶體振蕩器，有源晶體振蕩器，時鐘振蕩器，進口XO振蕩器，OSC晶振，CTS MXO45和MXO45HS是傳統的通孔時鐘振蕩器，提供了一個低成本的設計，支持舊的HCMOS/TTL應用程序。MXO45/MXO45HS不推薦用于新的設計活動，但可用于支持為完整和半尺寸的金屬DIP包開發的現有應用程序。

有源晶振產品應用范圍：計算機和外圍設備,微控制器和fpga,存儲區域組網,寬帶接入,數據通信,網絡設備,以太網/千兆以太網,光纖通道,測試與測量.西迪斯晶振,MXO45T-6I-27M000000,石英晶體振蕩器,6G網絡設備晶振.

西迪斯晶振,MXO45T-6I-27M000000,石英晶體振蕩器,6G網絡設備晶振 參數表

PARAMETERSYMBOLCONDITIONSMINTYPMAXUNIT
Maximum Supply VoltageVCC						-								-0 .5		-		7 .0V
Supply Voltage				VCC		±10%								4 .5		5 .0		5 .5		V
Supply Current						Freq Range [tested load noted for TYP values.]
						1 .0MHz to 20MHz[CL= 30pF]								-		10		26
						20 .001MHz to 40MHz[CL= 30pF]								-		20		40
				ICC		40 .001MHz to 80MHz[CL = 30pF]								-		30		60		mA
						80 .001MHz to 125MHz[CL= 15pF]								-		40		70
						125 .001MHz to 200MHz[CL= 15pF]								-		55		80
O perating Temperature				TA		-								-20 -40		+25		+70 +85		°C
Storage TemperatureTSTG--40-+100°C
Frequency Stability
PARAMETER				SYMBOL			CONDITIONS					MIN			TYP				MAX	UNIT
Frequency Range				O			-								27					MHz
Freq uency Stability[Note1]				Δf/fO			-								20, 25, 50 or 100					±ppm
Aging				Δf/f25			First Year @ +25°C, nominal VCC-5								±3				5	ppm
1.]Inclusive of initial tolerance at time				of shipment, changes			in supply voltage, load, temperature and 1st year aging.
Output Parameters
PARAMETERSYMBOLCONDITIONSMINTYPMAXUNIT
Output Type				-		-									HCMOS			-
Output Load						1 .0MHz to 50MHz[CMOS Load]-									15			50
				CL		50 .001MHz to 80MHz[CMOS Load]-									15			30		pF
						80 .001MHz to 200MHz[CMOS Load]-									15			15
						1 .0MHz to 200MHz[TTL Load]-									-			10		TTL
O utput Voltage Levels				VOH VOL		CMOS Load 10TTL Load CMOS Load 10TTL Load						0 .9VCC 2 .4 - -			- - - -			- - 0 .1VCC 0 .4		V
O utput Current Levels				IOH IOL		VOH= 3 .9V, VCC= 4 .5V VOL= 0 .4V, VCC= 4 .5V						- -			- -			-16 16		mA
O utput Duty Cyc le				SYM		@ 50% Level45									-			55		%
Rise and Fall Time						@ 10%/90% Levels [tested load noted for TYP values.]
						1 .0MHz to 20MHz[CL= 30pF]-									8			10
				TR, TF		20 .001MHz to 80MHz[CL= 30pF] 80 .001MHz to 125MHz[CL = 15pF]								- -	5 2 .5			8 5		ns
						125 .001MHz to 200MHz[CL= 15pF]-									-			2
Start Up Time				TS		Application of VCC, CL= 15pF-									5			10		ms

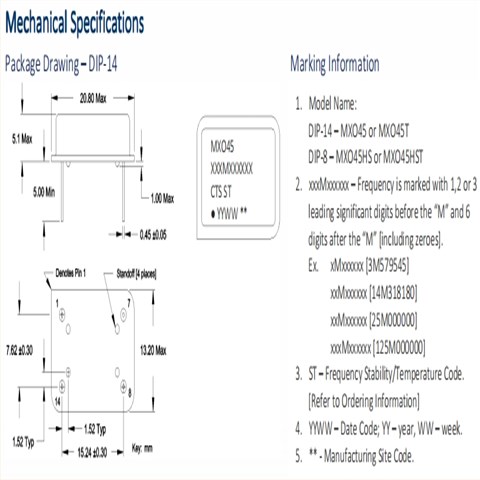

西迪斯晶振,MXO45T-6I-27M000000,石英晶體振蕩器,6G網絡設備晶振 尺寸圖

產品特性：

標準14針或8針金屬DIP封裝

基本和第三泛音晶體設計

低相位抖動性能

頻率范圍1 - 200MHz

+ 5.0 v操作

輸出啟用選項可用

三種批準的包裝方法。
