NX1210AC-52MHz-STD-CTR-1,NX1210AC小體積晶振,NDK通信晶振

產品簡介

NX1210AC-52MHz-STD-CTR-1,NX1210AC小體積晶振,NDK通信晶振，尺寸1.2*1.0mm,頻率52MHZ，日本進口晶振，日本電波石英晶振，NDK CRYSTAL ，四腳貼片晶振，1210mm超小型晶振，52MHZ貼片晶振，石英貼片晶振，無源SMD晶體，無源晶振，石英晶體諧振器，SMD晶振，水晶振動子，輕薄型晶振，無鉛環保晶振，低損耗晶振，低功耗晶振，低耗能晶振，高性能晶振，高質量晶振，通信設備晶振，無線網絡晶振，小型設備晶振，便攜式設備晶振，娛樂設備晶振，智能家居晶振，具有高質量低損耗的特點。

諧振器產品被廣泛應用各大應用領域，適合用于通信設備，無線網絡，小型設備，便攜式設備，娛樂設備，智能家居等應用.NX1210AC-52MHz-STD-CTR-1,NX1210AC小體積晶振,NDK通信晶振.

產品詳情

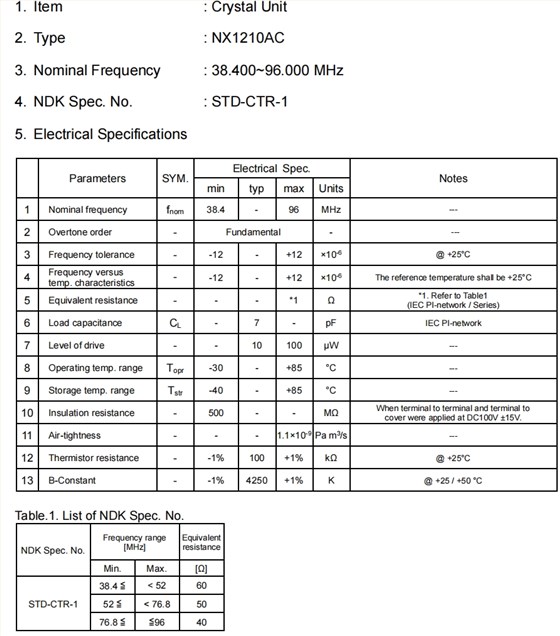

NX1210AC-52MHz-STD-CTR-1,NX1210AC小體積晶振,NDK通信晶振 參數表

Parameters	SYM.	ElectricalSpec.				Notes
		min	typ	max	Units
Nominal frequency	fnom		52		MHz	---
Overtone order	-	Fundamental			-	---
Frequency tolerance	-	-12	-	+12	×10-6	@ +25°C
Frequency versus temp. characteristics	-	-12	-	+12	×10-6	The reference temperature shall be +25°C
Equivalent resistance	-	-	-	*1	Ω	*1. Refer to Table1 (IEC PI-network / Series)
Load capacitance	CL	-	7	-	pF	IEC PI-network
Level of drive	-	-	10	100	µW	---
Operating temp. range	Topr	-30	-	+85	°C	---
Storage temp. range	Tstr	-40	-	+85	°C	---
Insulation resistance	-	500	-	-	MΩ	When terminal to terminal and terminal to cover were applied at DC100V ±15V.
Air-tightness	-	-	-	1.1×10-9	Pa m3/s	---
Thermistor resistance	-	-1%	100	+1%	kΩ	@ +25°C
B-Constant	-	-1%	4250	+1%	K	@ +25 / +50 °C

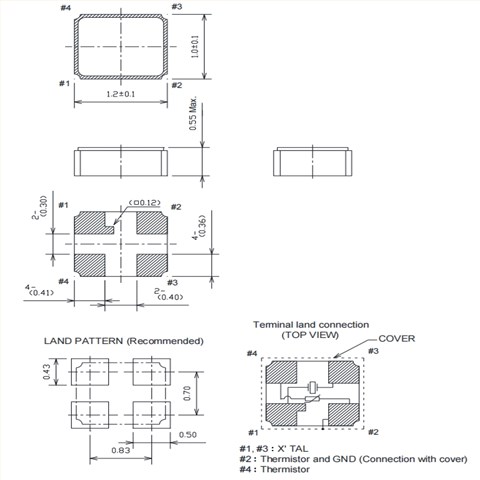

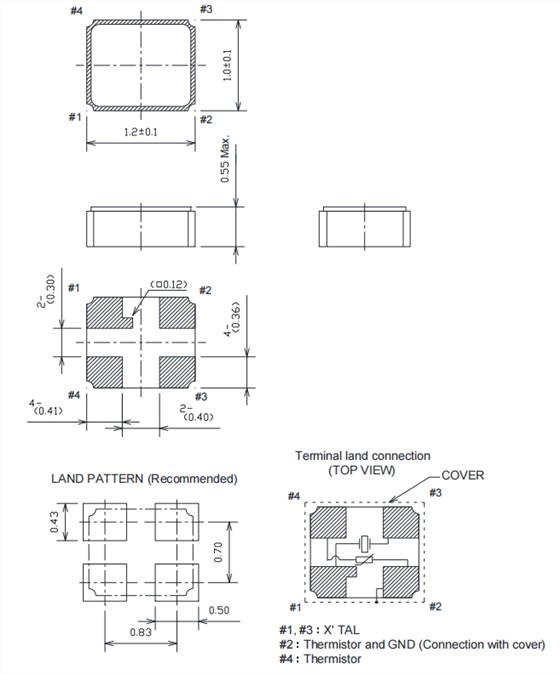

NX1210AC-52MHz-STD-CTR-1,NX1210AC小體積晶振,NDK通信晶振 尺寸圖

NX1210AC-52MHz-STD-CTR-1,NX1210AC小體積晶振,NDK通信晶振

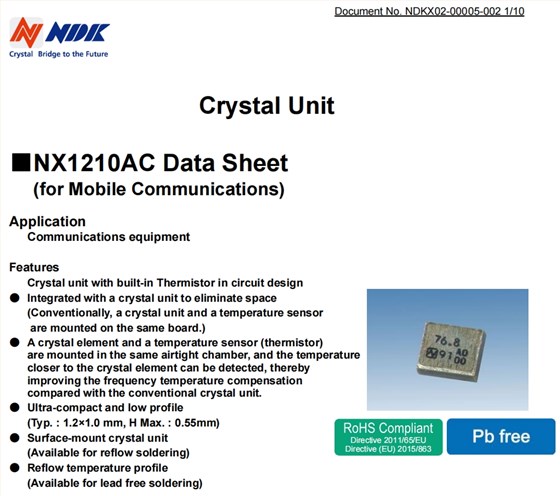

產品特性：

晶體單位隨著內置熱敏電阻

集成隨著消除電路設計中的空間的石英晶體單元(通常，晶體單元和溫度傳感器安裝在同一電路板上。)

晶體元件和溫度傳感器(熱敏電阻)安裝在同一個氣密室內，和溫度越來越近到晶體元件可以被檢測，從而改善了頻率溫度補償比較隨著傳統的晶體單元。

超緊湊和薄型(典型值。:1.2×1.0毫米，最大高度:0.55毫米)

表面貼裝晶體單元(可用為回流焊接)

回流溫度曲線(可用為無鉛焊接)

NDK石英晶振型號	Nominal frequency[MHz]	Specification number	Package size(LxW)[mm]	Operating temperature rang[℃]	Storage temperature range[℃]	Frequency tolerance[ppm]
AT-41CD2	33.869	LN-L-0002	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	36.864	LN-L-0002	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	26.9	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	27	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	36.444	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	36.864	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	38.277	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	40	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	41.14	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	41.6	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	42	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	45.158	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	48	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	50	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	54	STD-LPH-3	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	60	STD-LPH-5	11.4×4.8	-10~+70	-40~+85	±20
AT-41CD2	74.1	STD-LPH-5	11.4×4.8	-10~+70	-40~+85	±20
RC-8	5≦F≦20	STD-CWB-2	15.60×15.60	-40~+120	-55~+125	±3
NC-18C	10≦F≦20	STD-CWB-1	10.10×3.55	-40~+120	-55~+125	±3
NX1210AC	38.4	STD-CTR-1	1.2×1.0	-30~+85	-40~+85	±12
NX1210AC	52	STD-CTR-1	1.2×1.0	-30~+85	-40~+85	±12
NX1210AC	64	STD-CTR-1	1.2×1.0	-30~+85	-40~+85	±12
NX1210AC	76.8	STD-CTR-1	1.2×1.0	-30~+85	-40~+85	±12
NX1612SD	38.4	STD-CTI-2	1.6×1.2	-30~+85	-40~+105	±10
NX1612SD	52	STD-CTI-2	1.6×1.2	-30~+85	-40~+105	±10
NX1612SD	76.8	STD-CTI-2	1.6×1.2	-30~+85	-40~+105	±10
NX2016SF	19.2	STD-CTZ-1	2.0×1.6	-30~+85	-40~+105	±10
NX2016SF	26	STD-CTZ-1	2.0×1.6	-30~+85	-40~+105	±10
NX2016SF	38.4	STD-CTZ-1	2.0×1.6	-30~+85	-40~+105	±10
NX2016SF	52	STD-CTZ-1	2.0×1.6	-30~+85	-40~+105	±10
NX2520SG	19.2	STD-CTX-1	2.5×2.0	-30~+85	-40~+105	±10
NX2520SG	26	STD-CTX-1	2.5×2.0	-30~+85	-40~+105	±10
NX2520SG	38.4	STD-CTX-1	2.5×2.0	-30~+85	-40~+105	±10
NX2520SG	48	STD-CTX-1	2.5×2.0	-30~+85	-40~+105	±10
NX2520SG	52	STD-CTX-1	2.5×2.0	-30~+85	-40~+105	±10
