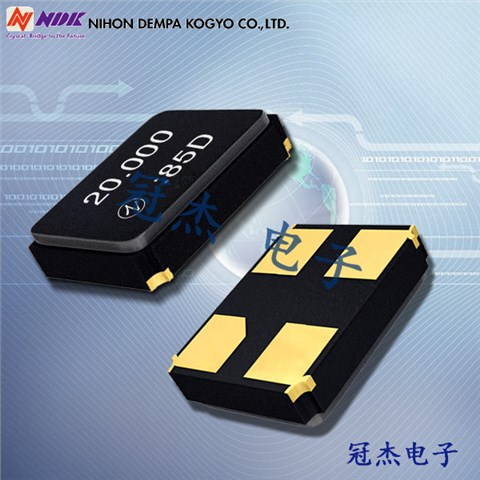

NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,±30ppm,3225mm，日本電波株式會社NDK晶振NX3225GA，編碼為：NX3225GA-16.9344M-STD-CRG-2，是一款小體積晶振尺寸3.2x2.5mm四腳貼片晶振，石英晶體諧振器，無源晶振，石英晶振，無鉛環保晶振，頻率為16.9344MHz，工作溫度范圍：-40℃至+150℃。具有超小型，輕薄型，耐振、耐沖擊等優良的耐環境特性，滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。該諧振器特別適用于：汽車電子設備，車載電子晶振，汽車音影晶振，汽車氛圍燈控制器，汽車充電樁，汽車電子控制板，汽車大燈恒溫器，無線網絡，藍牙模塊，移動通訊設備，數碼電子等應用。

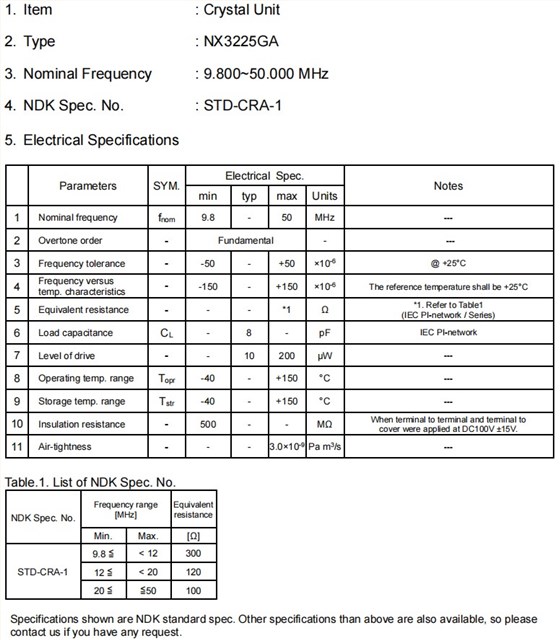

NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,±30ppm,3225mm，參數表
項目
NX3225GA
標稱頻率
9.840 to 50 MHz
序曲順序
Fundamental
頻率公差（25±3°C）
±20 × 10−6
頻率與溫度特性（參考+25°C）
±30 × 10−6
工作溫度范圍
−40 to +85 °C
儲存溫度范圍
−40 to +85 °C
等效串聯電阻
Refer to *1
驅動級別
10 μW (Max. 200 μW)
負載電容
8pF
規格編號
STD-CRG-2

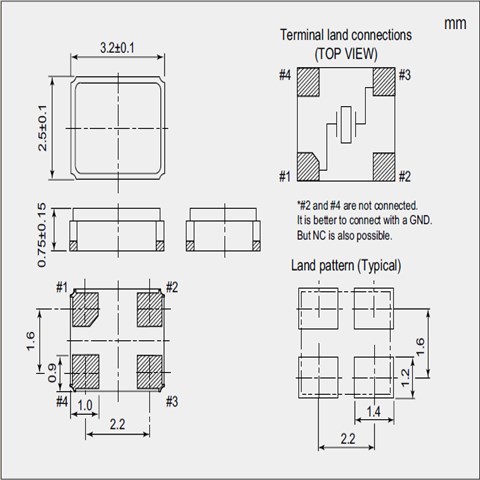

NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,±30ppm,3225mm，尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 包裝/封裝 |
| NX3225GA-26.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 26MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-26MHZ-TI | NDK晶振 | NX3225GA | 26MHz | ±40ppm | 4-SMD, No Lead |
| NX3225GA-16.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 16MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-27.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 27MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-20.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 20MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-24.576M-STD-CRG-2 | NDK晶振 | NX3225GA | 24.576MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-26.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 26MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.31818M-STD-CRG-2 | NDK晶振 | NX3225GA | 14.31818MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-32M-EXS00A-CG02611 | NDK晶振 | NX3225GA | 32MHz | ±20ppm | 4-SMD, No Lead |
| NX3225GA-20.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 20MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.7456M-STD-CRG-1 | NDK晶振 | NX3225GA | 14.7456MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-27M-STD-CRG-2 | NDK晶振 | NX3225GA | 27MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-20MHZ-STD-CRA-1 | NDK晶振 | NX3225GA | 20MHz | ±150ppm | 4-SMD, No Lead |
| NX3225GA-19.2M-STD-CRG-2 | NDK晶振 | NX3225GA | 19.2MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-16.9344M-STD-CRG-2 | NDK晶振 | NX3225GA | 16.9344MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-10.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 10MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-12MHZ- STD-CRG-2 | NDK晶振 | NX3225GA | 12MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-12.000M-STD-CRA-1 | NDK晶振 | NX3225GA | 12MHz | ±150ppm | 4-SMD, No Lead |
| NX3225GA-12.288M-STD-CRG-2 | NDK晶振 | NX3225GA | 12.288MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-13.56M-STD-CRG-2 | NDK晶振 | NX3225GA | 13.56MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.7456M-STD-CRG-2 | 3225晶振 | NX3225GA | 14.7456MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-27.12M-STD-CRG-2 | NDK晶振 | NX3225GA | 27.12MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-25.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 25MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-25.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 25MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-16.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 16MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-12MHZ- STD-CRG-1 | NDK晶振 | NX3225GA | 12MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-14.31818M-STD-CRG-1 | NDK晶振 | NX3225GA | 14.31818MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-10.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 10MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-30.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 30MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-30.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 30MHz | ±30ppm | 4-SMD, No Lead |
