QC20測試設備晶振,Qantek小型晶體,QC2026.0000F12B23R，尺寸2.0*1.6mm,頻率26MHZ，美國康泰克晶振，美國進口晶振，進口貼片晶振，2016mm小尺寸晶振，無源貼片晶振，無源晶振，SMD晶體，石英貼片晶振，石英晶振，無源石英晶體，石英晶體諧振器，26MHZ無源晶振，水晶振動子，綠色環保晶振，高質量晶振，高性能晶振，低損耗晶振，低功耗晶振，低成本晶振，測試設備晶振，無線應用晶振，高密度應用晶振，通信設備晶振，測試設備晶振，小型設備晶振，娛樂設備晶振，汽車應用晶振，消費電子晶振，多媒體設備晶振，產品具有低成本低功耗的特點。
比較適合用于高密度應用，調制解調器、無線通訊晶振和測試設備，PMCIA，還可以廣泛用于娛樂設備,小型設備，多媒體設備等領域.QC20測試設備晶振,Qantek小型晶體,QC2026.0000F12B23R.

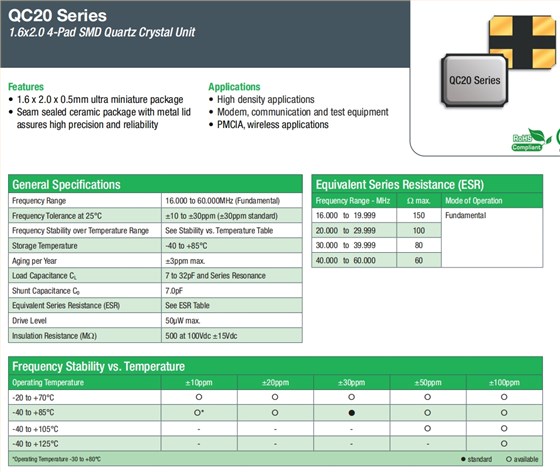

QC20測試設備晶振,Qantek小型晶體,QC2026.0000F12B23R 參數表
| General Specifications | |||||||||||||||||||
| Frequency Range | 26.000MHz (Fundamental) | ||||||||||||||||||
| Frequency Tolerance at 25°C | ±10 to ±30ppm (±30ppm standard) | ||||||||||||||||||
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | ||||||||||||||||||
| Storage Temperature | -40 to +85°C | ||||||||||||||||||
| Aging per Year | ±3ppm max. | ||||||||||||||||||
| Load Capacitance CL | 7 to 32pF and Series Resonance | ||||||||||||||||||
| Shunt Capacitance C0 | 7.0pF | ||||||||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | ||||||||||||||||||
| Drive Level | 50μW max. | ||||||||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | ||||||||||||||||||

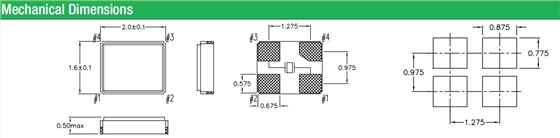

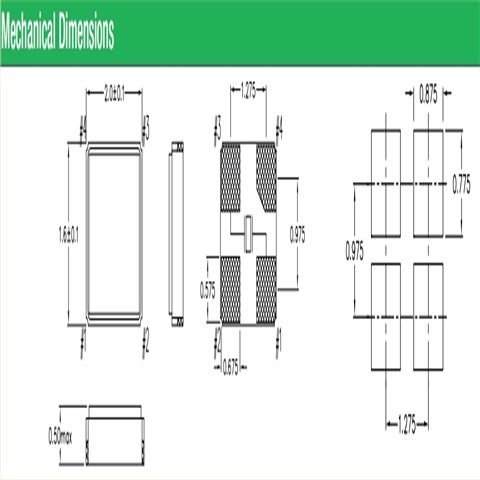

QC20測試設備晶振,Qantek小型晶體,QC2026.0000F12B23R 尺寸圖
QC20測試設備晶振,Qantek小型晶體,QC2026.0000F12B23R
Qantek晶振產品特性：
2.0x1.6x0.5mm超小型封裝
帶金屬蓋的接縫密封陶瓷包裝
確保高精度和可靠性
