康泰克石英晶體,QC25汽車充電樁晶振,QC2524.0000F12B22R，尺寸2.5*2.0mm,頻率24MHZ，美國進口晶振，美國Qantek晶振，Qantek貼片晶振，石英振動子，24MHZ貼片晶振，2520mm石英晶振，無源晶振，石英貼片晶振，貼片石英晶體，石英晶體諧振器，石英晶振，SMD晶振，無源貼片晶振，綠色環保晶振，低功耗晶振，低損耗晶振，低耗能晶振，高質量晶振，高性能晶振，汽車充電樁晶振，無線通信晶振，測試設備晶振，高密度應用晶振，多媒體設備晶振，小型設備晶振，娛樂設備晶振，便攜式設備晶振，產品具備超高的穩定性能。
無源晶振產品常常用于汽車充電樁，無線通信，測試設備，高密度應用，多媒體設備，小型設備，娛樂設備，便攜式設備等領域。康泰克石英晶體,QC25汽車充電樁晶振,QC2524.0000F12B22R.

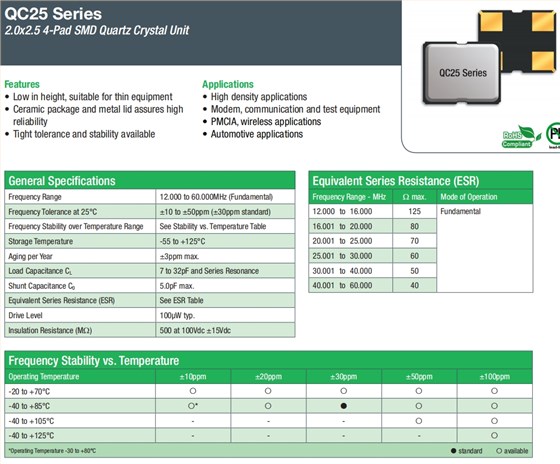

康泰克石英晶體,QC25汽車充電樁晶振,QC2524.0000F12B22R 參數表
| General Specifications | |||||||||||||||||||
| Frequency Range | 24.000MHz (Fundamental) | ||||||||||||||||||
| Frequency Tolerance at 25°C | ±10 to ±50ppm (±30ppm standard) | ||||||||||||||||||
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | ||||||||||||||||||
| Storage Temperature | -55 to +125°C | ||||||||||||||||||
| Aging per Year | ±3ppm max. | ||||||||||||||||||
| Load Capacitance CL | 7 to 32pF and Series Resonance | ||||||||||||||||||
| Shunt Capacitance C0 | 5.0pF max. | ||||||||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | ||||||||||||||||||
| Drive Level | 100μW typ. | ||||||||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | ||||||||||||||||||

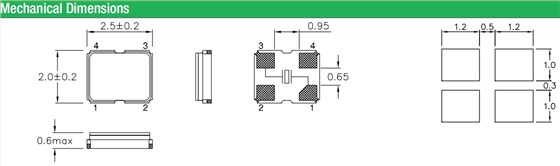

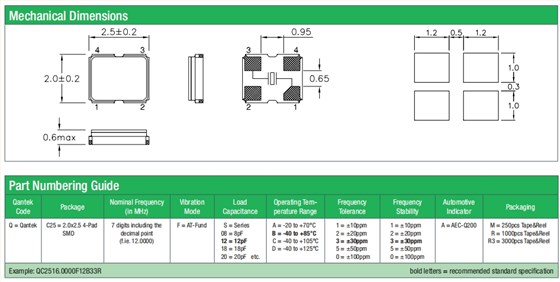

康泰克石英晶體,QC25汽車充電樁晶振,QC2524.0000F12B22R 尺寸圖
康泰克石英晶體,QC25汽車充電樁晶振,QC2524.0000F12B22R
SMD晶振產品特性：
高度低，適用于薄型設備
陶瓷包裝和金屬蓋確?？煽啃?
具有緊密的公差和穩定性
優異的老化
