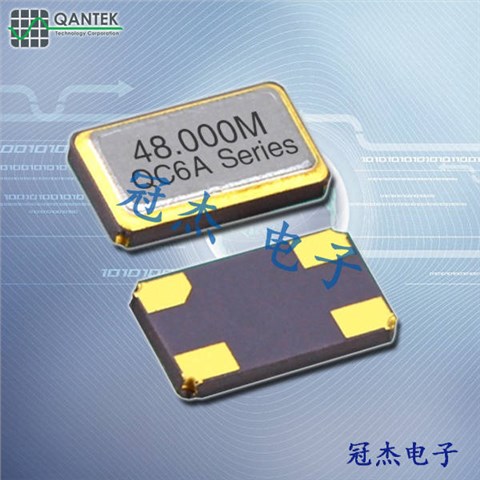

Qantek歐美晶振,QC6A高密度應用晶振,QC6A48.0000F12B33R，尺寸6.0*3.5mm,頻率48MHZ，美國康泰克晶振，Qantek無源晶振，歐美無源晶振，輕薄型晶振，四腳貼片晶振，石英晶振，石英貼片晶振，無源石英晶體，石英晶體諧振器，SMD晶振，6035mm進口晶振，48MHZ貼片晶振，無線通訊晶振，無源貼片晶振，低功耗晶振，低損耗晶振，低耗能晶振，高質量晶振，高性能晶振，高密度應用晶振，汽車應用晶振，汽車音響晶振，智能家居晶振，藍牙耳機晶振，具有良好的耐壓性能。
SMD晶振產品超級適合用于高密度應用，智能家居，藍牙耳機，調制解調器、通信和測試設備，PMCIA，無線應用，汽車應用等領域。Qantek歐美晶振,QC6A高密度應用晶振,QC6A48.0000F12B33R.
Qantek歐美晶振,QC6A高密度應用晶振,QC6A48.0000F12B33R 參數表
| General Specifications | |||||||||||||||||||
| Frequency Range | 48.000MHz | ||||||||||||||||||
| Mode of Oscillation | Fundamental | 7.500 to 60.000MHz | |||||||||||||||||
| Third Overtone | 30.000 to 150.000MHz | ||||||||||||||||||
| Frequency Tolerance at 25°C | ±10 to ±30ppm (±30ppm standard) | ||||||||||||||||||
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | ||||||||||||||||||
| Storage Temperature | -55 to +125°C | ||||||||||||||||||
| Aging per Year | ±3ppm max. | ||||||||||||||||||
| Load Capacitance CL | 10 to 32pF and Series Resonance | ||||||||||||||||||
| Shunt Capacitance C0 | 7.0pF max. | ||||||||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | ||||||||||||||||||
| Drive Level | 500μW max. | ||||||||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | ||||||||||||||||||

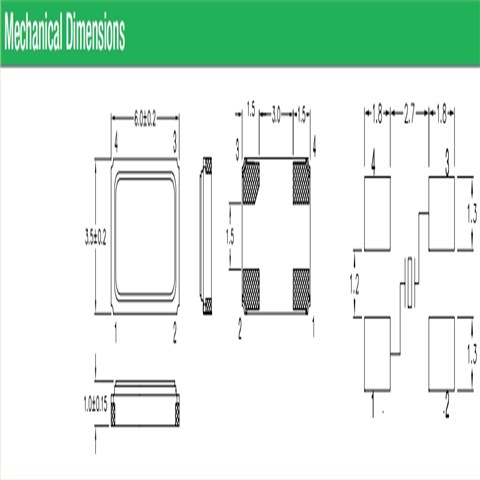

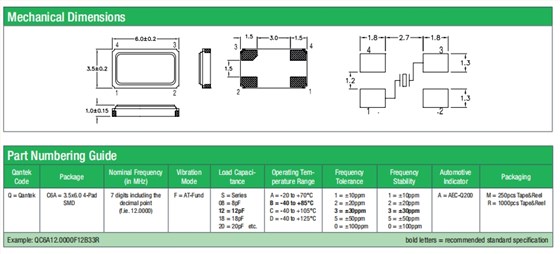

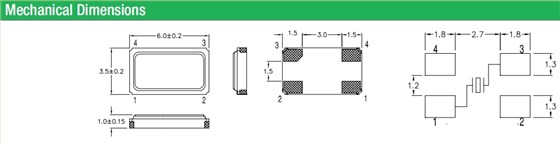

Qantek歐美晶振,QC6A高密度應用晶振,QC6A48.0000F12B33R 尺寸圖
Qantek歐美晶振,QC6A高密度應用晶振,QC6A48.0000F12B33R
石英晶體產品特性：
高度低，適用于薄型設備
陶瓷包裝和金屬蓋確?？煽啃?
具有緊密的公差和穩定性
