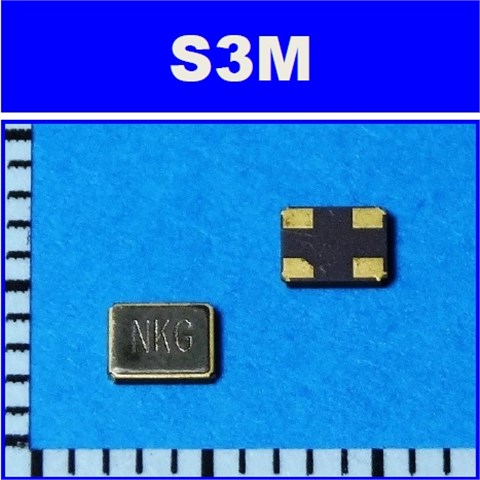

S3M16.0000F16M25-EXT/6G移動通信晶振/NKG汽車級晶振，尺寸為3.2x2.5x0.7mm,頻率16MHZ，香港NKG無源晶振，NKG石英晶體，石英晶體諧振器，石英晶體，石英貼片晶振，SMD晶振，小體積晶振，無源貼片晶振，貼片諧振器，藍牙專用貼片晶振，智能家居專用晶振，智能音響晶振，移動通信晶振，無線應用專用晶振，6G無線設備晶振，6G移動通信晶振，低損耗無源晶振，高精度石英晶體，高品質晶振，高性能石英晶振，產品具備低損耗高質量的特點.
諧振器產品常常用于移動通信，無線、藍牙，便攜式設備，USB存儲設備，智能音響，儀器設備，醫療產品等領域。S3M16.0000F16M25-EXT/6G移動通信晶振/NKG汽車級晶振.

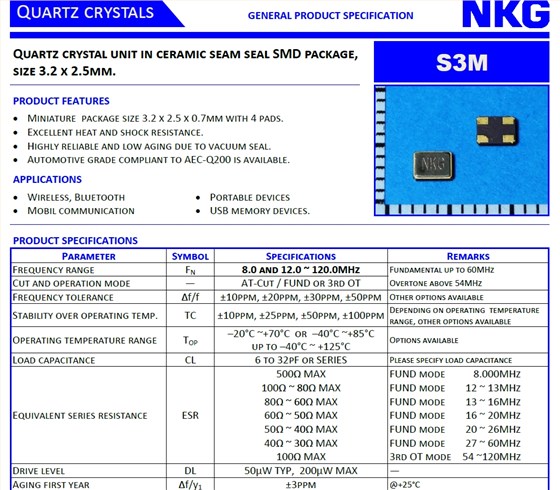

S3M16.0000F16M25-EXT/6G移動通信晶振/NKG汽車級晶振參數表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
16.0MHz
Fundamental up to 60MHz
Overtone above 54MHz
Cut and operation mode
—
AT-Cut / FUND or 3rd OT
Frequency tolerance
Δf/f
±10ppm, ±20ppm, ±30ppm, ±50ppm
Other options available
Stability over operating temp.
TC
±10ppm, ±25ppm, ±50ppm, ±100ppm
Depending on operatingtemperature
range, other options available
Operating temperature range
TOP
– 20°C ~+70°Cor –40°C ~+85°C
up to –40°C ~ +125°C
Options available
Load capacitance
CL
6 to 32pF or SERIES
Please specify load capacitance
Equivalent series resistance
ESR
500Ω MAX
100Ω ~ 80Ω MAX
80Ω ~ 60Ω MAX
60Ω ~ 50Ω MAX
50Ω ~ 40Ω MAX
40Ω ~ 30Ω MAX
100Ω MAX
FUND mode
FUND mode
FUND mode
FUND mode
FUND mode
FUND mode
3rd OT mode
8.000MHz
12 ~ 13MHz
13 ~ 16MHz
16 ~ 20MHz
20 ~ 26MHz
27 ~ 60MHz
54 ~120MHz
Drive level
DL
50µW TYP,200µW MAX
—
Aging first year
Δf/y1
±3ppm
@+25°C

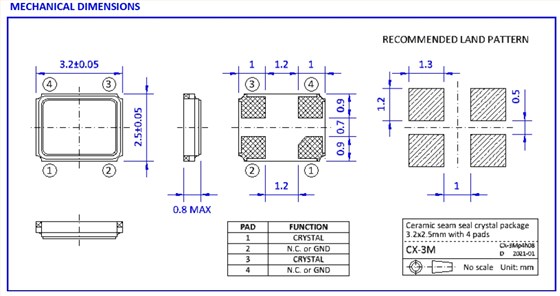

S3M16.0000F16M25-EXT/6G移動通信晶振/NKG汽車級晶振尺寸圖
貼片晶振產品特性：
微型封裝尺寸3.2x2.5x0.7毫米，帶4個焊盤。
卓越的耐熱性和抗震性。
真空密封，可靠性高，老化程度低。
可提供符合AEC-Q200標準的汽車級
更多相關香港NKG晶振型號，請聯系我們！
