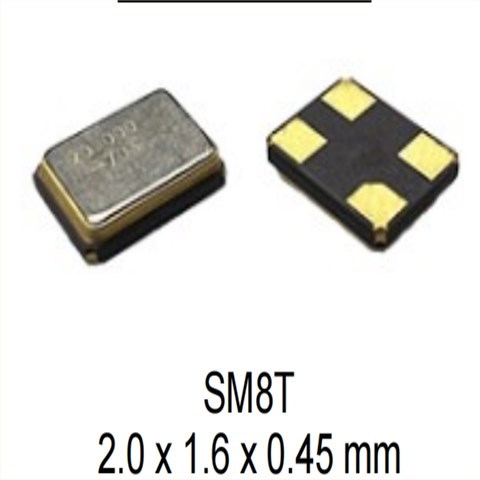

SM8T-18-20.0M-20H1LK 6GWIFI晶振 美國Pletronics晶振，尺寸2.0x1.6x0.45mm,頻率20MHZ，Pletronics晶振，歐美進口晶振，SMD晶振，水晶振動子，石英貼片晶體，石英晶體，石英晶體諧振器，無源石英晶體，2016mm石英晶振，SMD無源晶振，無線通訊晶振，進口無源晶振，低功耗晶振，低損耗無源晶體，高性能貼片晶振，高精度石英晶振，高品質晶振，通信產品晶振，可穿戴設備專用晶振，藍牙音響晶振，物聯網專用晶振，儀器儀表晶振，產品具備低損耗高精度的特點.

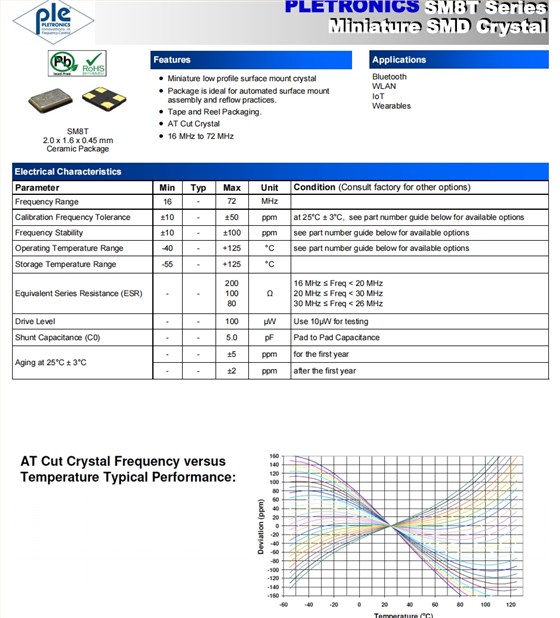

SM8T-18-20.0M-20H1LK 6GWIFI晶振 美國Pletronics晶振參數表
Parameter
Min
Typ
Max
Unit
Condition(Consult factory for other options)
Frequency Range
20
MHz
Calibration Frequency Tolerance
±10
-
±50
ppm

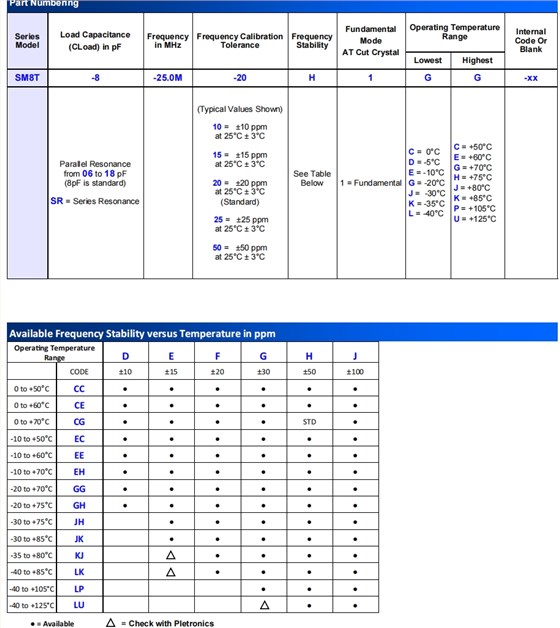

at +25°C ± 3°C,see part number guide below for available options
Frequency Stability
±10
-
±50
ppm
see part number guide below for available options
Operable Temperature Range
-40
-
125
°C
see part number guide below for available options
Storage Temperature Range
-55
-
125
°C
Equivalent Series Resistance (ESR)
-
-
200
Ω
16 MHz ≤ Freq < 20 MHz
100
20 MHz ≤ Freq < 30 MHz
80
30 MHz ≤ Freq < 26 MHz
Drive Level
-
-
100
µW
Use 10µW for testing
Shunt Capacitance (C0)
-
-
5
pF
Pad to Pad Capacitance
Aging at 25°C ± 3°C
-
-
±5
ppm
for the first year
-
-
±2
ppm
after the first year

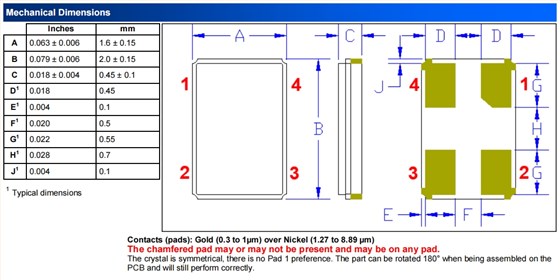

SM8T-18-20.0M-20H1LK 6GWIFI晶振 美國Pletronics晶振尺寸圖
諧振器產品特性：
微型低剖面表面貼裝水晶
包裝是自動表面安裝的理想選擇組裝和回流實踐。
磁帶和卷軸包裝。
AT切割水晶
16MHz至72MHz
更多相關普銳特美國Pletronics晶振型號，請咨詢我們！
