GED壓控振蕩器,SMD2200.3C-52.000MHz,7050mm微波通信晶振,52MHZ特點:

具有三態功能的HCMOS輸出有源晶體振蕩器

5.0V電源電壓

陶瓷6片SMD封裝

焊盤#2無連接；焊盤#5三態

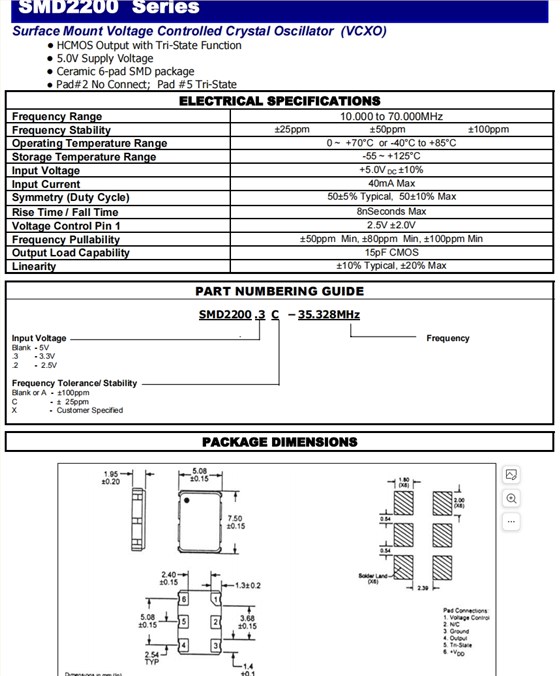

GED壓控振蕩器,SMD2200.3C-52.000MHz,7050mm微波通信晶振,52MHZ 參數表

ELECTRICAL SPECIFICATIONS
Frequency Range		52.000MHz
Frequency Stability		±25ppm±50ppm±100ppm
Operating Temperature Range		0 ~+70°Cor -40°C to +85°C
Storage Temperature Range		-55 ~ +125°C
Input Voltage		+5.0VDC±10%
Input Current		40mA Max
Symmetry (Duty Cycle)		50±5% Typical,50±10% Max
Rise Time / Fall Time		8nSeconds Max
Voltage Control Pin 1		2.5V ±2.0V
Frequency Pullability		±50ppmMin, ±80ppmMin, ±100ppm Min
Output Load Capability		15pF CMOS
Linearity		±10% Typical, ±20% Max

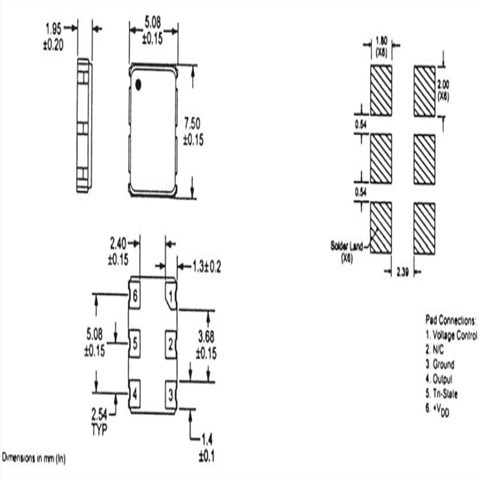

GED壓控振蕩器,SMD2200.3C-52.000MHz,7050mm微波通信晶振,52MHZ 尺寸圖
