產品簡介

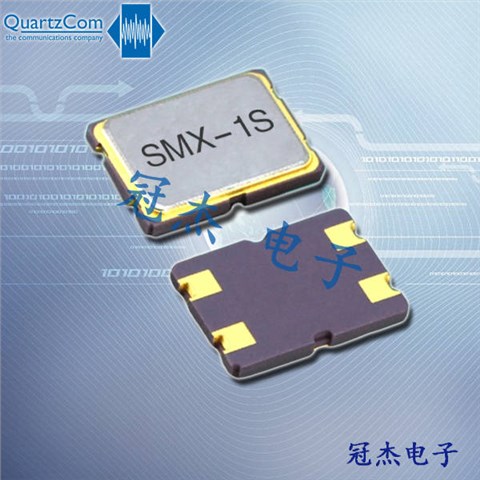

SMX-1S儀器儀表晶振,7050高頻晶振,瑞士石英通無源晶振，尺寸7.0*5.0mm,頻率范圍8~250MHZ，QuartzCom瑞士晶振，石英通石英晶振，石英晶體諧振器，石英貼片晶振，無源石英晶振，SMD晶振，水晶振動子，7050mm貼片晶振，四腳貼片晶振，無源晶振，高頻晶振，低功耗晶振，低耗能晶振，高品質晶振，高性能晶振，高精度晶振，數字音頻晶振，儀器儀表專用晶振，導航定位晶振，平板電腦晶振，網絡應用晶振，影音系統晶振，播放器晶振，具有高性能高精度的特點。

在極端嚴酷的環境條件下,晶振也能正常工作,具有穩定的起振特性,高耐熱性,耐熱循環性和耐振性等，高品質晶振產品適合用于數字音頻，儀器儀表，導航定位，平板電腦，網絡應用，影音系統，播放器等領域。SMX-1S儀器儀表晶振,7050高頻晶振,瑞士石英通無源晶振.

產品詳情

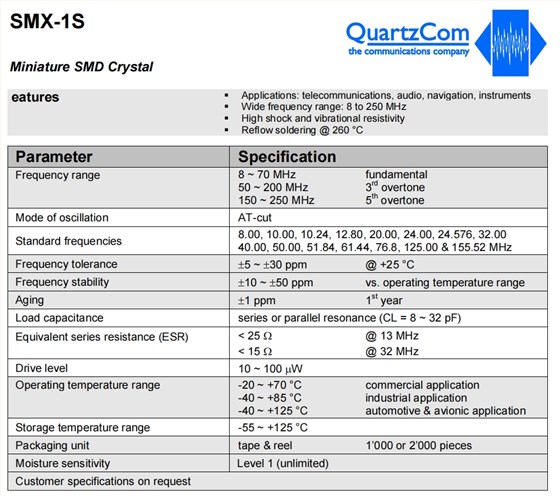

SMX-1S儀器儀表晶振,7050高頻晶振,瑞士石英通無源晶振 參數表

Parameter	Specification
Frequency range	8 ~ 70 MHz 50 ~ 200 MHz 150 ~ 250 MHz	fundamental 3rdovertone 5thovertone
Mode of oscillation	AT-cut
Standard frequencies	8.00, 10.00, 10.24, 12.80, 20.00, 24.00, 24.576, 32.00 40.00, 50.00, 51.84, 61.44, 76.8, 125.00 & 155.52 MHz
Frequency tolerance	土5 ~土30 ppm@ +25 °C
Frequency stability	土10 ~土50 ppmvs. operating temperature range
Aging	土1 ppm	1st	year
Load capacitance	series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)	< 25Ω < 15Ω	@ 13 MHz @ 32 MHz
Drive level	10 ~ 100μW
Operating temperature range	-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C	commercial application industrial application automotive & avionic application
Storage temperature range	-55 ~ +125 °C
Packaging unit	tape & reel1’000 or 2’000 pieces
Moisture sensitivity	Level 1 (unlimited)
