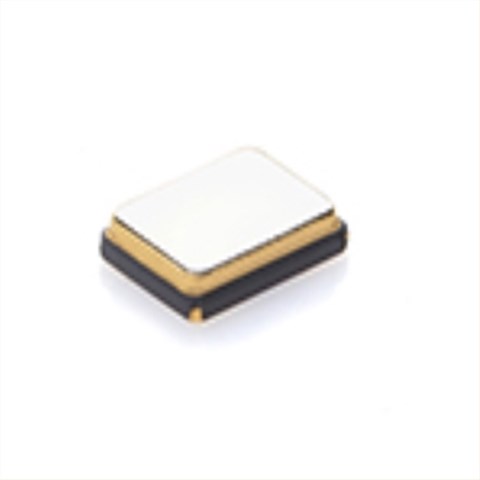

SUNNYCrystal-SP10120G5-16.00000-T&R-6G基站晶振-SX-A32汽車電子晶振，尺寸3.2*2.5mm,頻率16MHZ，韓國進口晶振，三星無源晶振，3225晶體諧振器，高精度晶振，低損耗晶振，高性能晶振，低老化晶振，汽車電子晶振，石英晶體，SMD晶振，石英晶體諧振器，石英貼片晶振，無源晶體，四腳貼片晶振，6G基站晶振，水晶振動子，無源諧振器，無線設備貼片晶振，語音設備晶振，平板電腦晶振，藍牙音響專用晶振，儀器儀表專用晶振，具有高精度低老化的特點。
SMD晶振產品很適合用于6G基站，無線設備，語音設備，平板電腦，藍牙音響，儀器儀表等，還可以廣泛用于通訊模塊等領域。SUNNYCrystal-SP10120G5-16.00000-T&R-6G基站晶振-SX-A32汽車電子晶振.

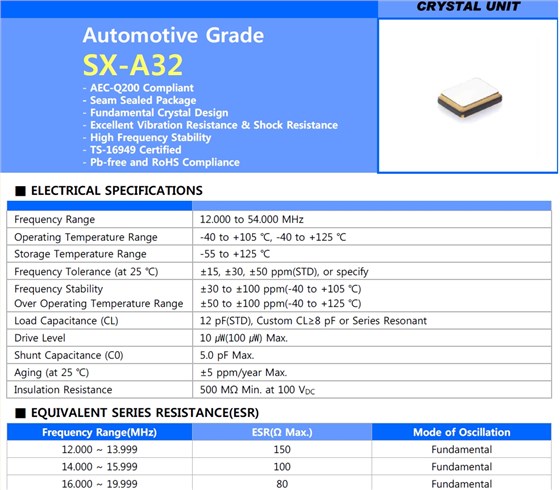

SUNNYCrystal-SP10120G5-16.00000-T&R-6G基站晶振-SX-A32汽車電子晶振參數表
Frequency Range
16.000 MHz
Operating Temperature Range
-40 to +105 ℃, -40 to +125 ℃
Storage Temperature Range
-55 to +125 ℃
Frequency Tolerance (at 25 ℃)
±15, ±30, ±50 ppm(STD), or specify
Frequency Stability
Over Operating Temperature Range
±30 to ±100 ppm(-40 to +105 ℃)
±50 to ±100 ppm(-40 to +125 ℃)
Load Capacitance (CL)
12 pF(STD), Custom CL≥8 pF or Series Resonant
Drive Level
10μw(100μw) Max.
Shunt Capacitance (C0)
5.0 pF Max.
Aging (at 25 ℃)
±5 ppm/year Max.
Insulation Resistance
500 MΩ Min. at 100 VDC

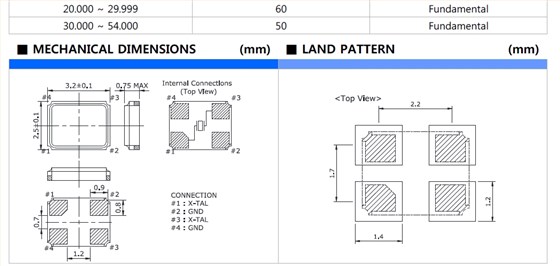

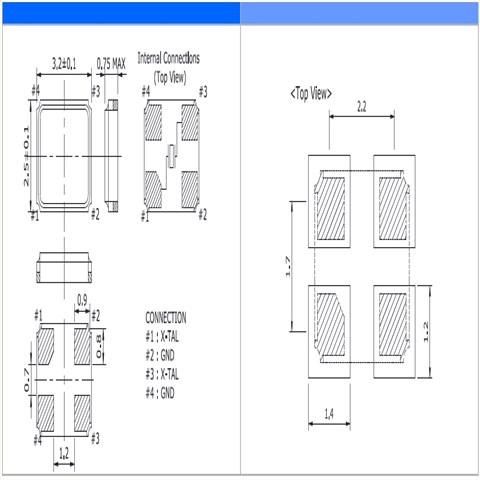

SUNNYCrystal-SP10120G5-16.00000-T&R-6G基站晶振-SX-A32汽車電子晶振尺寸圖
3225晶振產品特性：
AEC-Q200兼容
密封封裝
基本晶體設計
優秀的抗振動和抗沖擊
高頻穩定性
TS-16949認證
無Pb和RoHS兼容
更多相關韓國三呢SUNNYCrystal型號，請咨詢我們！
