艾西迪32.768K晶振\WXS00003GIHD‐PF\6G交換機晶振\WX16S音叉晶體，尺寸1.6x1.0mm,頻率32.768KHZ，ACT無源晶體，英國進口晶振，兩腳貼片晶振，石英晶體，1610小體積晶振，32.768K貼片晶振，音叉晶體，SMD晶振，電話機晶振，時計專用晶振，時鐘晶體，游戲機晶振，無線網絡晶振，數碼相機晶振，高質量晶振，高性能晶振，低損耗晶振，具有低功耗低損耗的特點.

無源晶振比較適合用于電話機，時鐘產品，數字電表水表，游戲機，數碼相機，兒童智能手表，無線網絡，6G交換機等領域.艾西迪32.768K晶振\WXS00003GIHD‐PF\6G交換機晶振\WX16S音叉晶體.

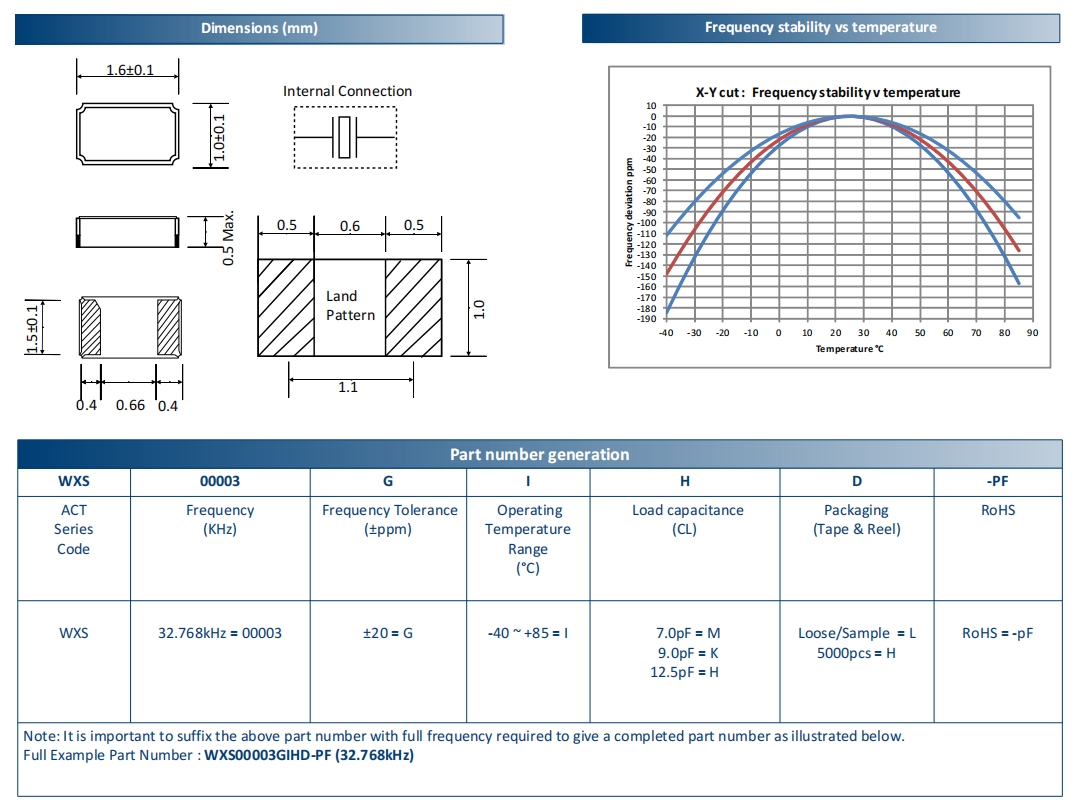

艾西迪32.768K晶振\WXS00003GIHD‐PF\6G交換機晶振\WX16S音叉晶體參數表

Parameters			Specification	Remarks
Frequency		F_nom	32.768kHz
Frequency tolerance		F_tol	±20ppm	At25°C±3°C
Operating temperaturerange		T_use	‐40°C ~+85°C
Storage temperature		T_stg	‐55°C ~+125°C
Temperature coefficient		K	‐0.036±10%ppm/Δ°C²
Turnover temperature		Ti	25°C±5°C
Load capacitance		CL	7pF, 9pF,12.5pF	Otherload capacitances areavailable ‐please contactACT
Equivalent seriesresistance		ESR	90KΩmax	OtherlowerESR options are available‐pleasecontact ACT
Shunt capacitance		C0	2.0pFmax
Drivelevel		DL	0.1μWtypical,1.0μWmax
Frequency aging		F_age	±3.0ppmmax	At25°C,Firstyear
Insulationresistance		IR	500MΩmin	AtDC100V ±15V

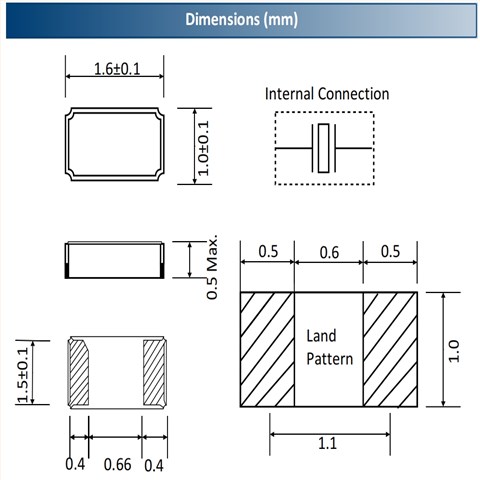

艾西迪32.768K晶振\WXS00003GIHD‐PF\6G交換機晶振\WX16S音叉晶體尺寸圖

石英晶體產品特性：

符合RoHS和REACH標準

真空密封微型陶瓷封裝，穩定性極佳

低功耗

更多相關ACT艾西迪晶體型號，請咨詢我們！
