愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038，尺寸3.2*2.5mm,頻率16.368MHZ，日本進口晶振，EPSON有源晶振，石英晶體振蕩器，溫補石英晶振，貼片溫補晶振，3225mm溫補晶振，有源溫補振蕩器，TCXO晶體振蕩器，溫度補償晶體振蕩器，衛星導航晶振，低電壓溫補晶振，低功耗溫補晶振，低耗能溫補晶振，低抖動溫補晶振，低相位溫補晶振，低相噪溫補晶振，高品質溫補晶振，GPS導航定位專用溫補晶振，無線通信溫補晶振，無線路由器溫補晶振，航空電子溫補晶振，智能家居溫補晶振，AOA定位溫補晶振，北斗模塊溫補晶振，具有穩定性高低相位低相噪的特點。

超小型溫補晶振產品可滿足不同應用的需求，適合用于GPS、RF、無線通信設備（CDMA、WCDMA、LTE、WiMAX等），北斗模塊，AOA定位，智能家居等應用.愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038.

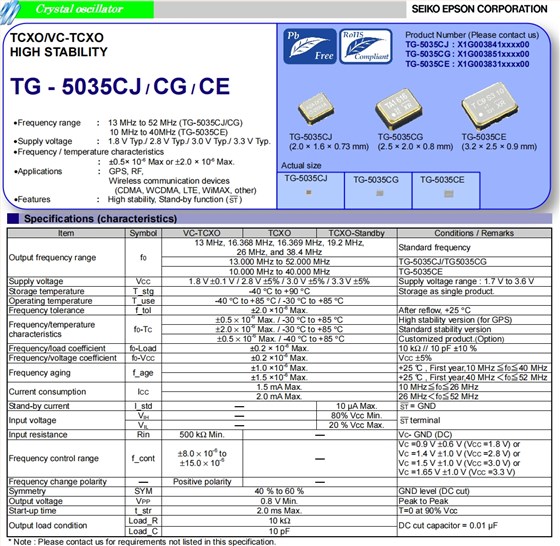

愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038 參數表

Item

Symbol

VC-TCXO

TCXO

TCXO-Standby

Conditions / Remarks

Output frequency range

16.368 MHz

16.369 MHz, 19.2 MHz,

26 MHz, and 38.4 MHz

Standard frequency

13.000 MHz to 52.000 MHz

TG-5035CJ/TG5035CG

10.000 MHz to 40.000 MHz

TG-5035CE

Supply voltage

VCC

1.8 V±0.1 V / 2.8 V±5% / 3.0 V±5% / 3.3 V±5%

Supply voltage range : 1.7 V to 3.6 V

Storage temperature

T_stg

-40。C to +90。C

Storage as single product.

Operating temperature

T_use

-40。C to +85。C / -30。C to +85。C

Frequency tolerance

f_tol

±2.0 ×10-6Max.

After reflow, +25。C

Frequency/temperature
characteristics

f0-TC

±0.5x10-6Max. / -30。C to +85。C

High stability version (for GPS)

±2.0x10-6Max. / -30。C to +85。C

Standard stability version

±0.5x10-6Max. / -40。C to +85。C

Customized product.(Option)

Frequency/load coefficient

f0-Load

±0.2 × 10-6Max.

10 kΩ// 10 pF ±10 %

Frequency/voltage coefficient

f0-VCC

±0.2 ×10-6Max.

VCC±5%

Frequency aging

f_age

±1.0 ×10-6Max.

+25 °C , First year,10 MHz三f0三40 MHz

±1.5 ×10-6Max.

+25 °C , First year,40 MHz

Current consumption

ICC

1.5 mA Max.

10 MHz三f0三26 MHz

2.0 mA Max.

26 MHz

Stand-by current

I_std

10 μA Max.

ST= GND

Input voltage

VIH

80% Vcc Min.

STterminal

VIL

20 % Vcc Max.

Input resistance

Rin

500 kΩMin.

VC- GND (DC)

Frequency control range

f_cont

±8.0x10-6to
±15.0x10-6

VC=0.9 V±0.6 V (VCC=1.8 V) or
VC=1.4 V±1.0 V (VCC=2.8 V) or
VC=1.5 V±1.0 V (VCC=3.0 V) or
VC=1.65 V±1.0 V (VCC=3.3 V)

Frequency change polarity

Positive polarity

Symmetry

SYM

40 % to 60 %

GND level (DC cut)

Output voltage

VPP

0.8 V Min.

Peak to Peak

Start-up time

t_str

2.0 ms Max.

T=0 at 90% Vcc

Output load condition

Load_R

10 kΩ

DC cut capacitor = 0.01 µF

Load_C

10 pF

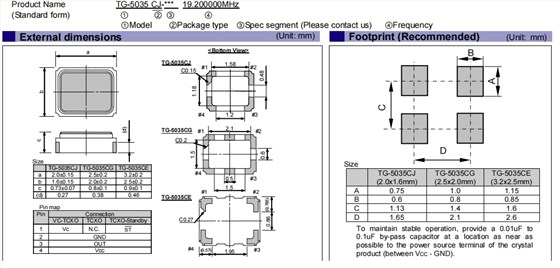

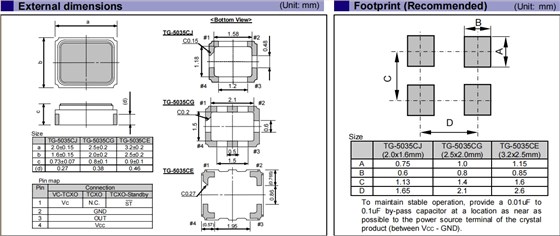

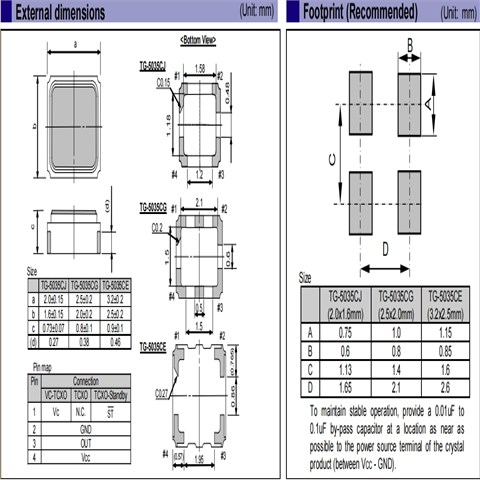

愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038 尺寸圖

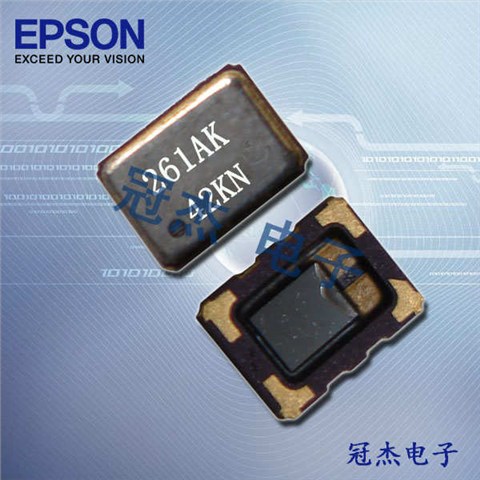

愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038

TCXO溫補晶振產品特性：

頻率范圍：13MHz至52MHz（TG-5035CJ/CG）10 MHz至40MHz（TG-5035CE）

電源電壓：1.8VTyp/2.8VTyp/3.0VTyp/3.3VTyp。

頻率/溫度特性：±0.5×10-6 Max或±2.0×10-6 Max。

Product Number	Model	Frequency	LxWxH	Output Wave	品牌	Supply Voltage
X1G0035610010	TG-5500CA	12.800000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610048	TG-5500CA	20.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610049	TG-5500CA	24.576000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610050	TG-5500CA	49.152000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610059	TG-5500CA	20.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610066	TG-5500CA	30.720000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610067	TG-5500CA	40.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610083	TG-5500CA	27.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610085	TG-5500CA	15.360000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610087	TG-5500CA	26.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610089	TG-5500CA	16.384000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610090	TG-5500CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610091	TG-5500CA	19.440000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610093	TG-5500CA	40.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610094	TG-5500CA	12.800000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610097	TG-5500CA	50.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610098	TG-5500CA	10.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0035610101	TG-5500CA	10.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610102	TG-5500CA	12.800000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610103	TG-5500CA	16.384000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610104	TG-5500CA	19.440000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610107	TG-5500CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610108	TG-5500CA	26.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610109	TG-5500CA	27.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610200	TG-5500CA	30.720000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610201	TG-5500CA	40.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610202	TG-5500CA	49.152000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610203	TG-5500CA	50.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0035610204	TG-5500CA	15.360000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0038310001	TG-5035CE	19.200000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038310004	TG-5035CE	16.369000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	2.650 to 3.040 V
X1G0038310005	TG-5035CE	16.368000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	2.650 to 3.040 V
X1G0038310014	TG-5035CE	16.369000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	1.800 to 3.000 V
X1G0038310025	TG-5035CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038310034	TG-5035CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	2.900 to 3.100 V
X1G0038310035	TG-5035CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	1.700 to 3.300 V
X1G0038310038	TG-5035CE	16.368000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	2.400 to 2.600 V
X1G0038310047	TG-5035CE	19.200000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0038310051	TG-5035CE	30.720000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0038310053	TG-5035CE	16.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	1.700 to 3.600 V
X1G0038310055	TG-5035CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	2.660 to 2.940 V
X1G0038310056	TG-5035CE	24.576000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	愛普生晶振	1.700 to 3.600 V
X1G0038410002	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038410004	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038410010	TG-5035CJ	33.600000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 3.300 V
X1G0038410011	TG-5035CJ	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038410015	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038410017	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038410026	TG-5035CJ	38.400000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038410027	TG-5035CJ	52.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038410029	TG-5035CJ	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 3.300 V
X1G0038410030	TG-5035CJ	24.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	2.600 to 3.000 V
X1G0038410033	TG-5035CJ	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038410034	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 3.300 V
X1G0038410040	TG-5035CJ	24.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	2.600 to 3.000 V
X1G0038410048	TG-5035CJ	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 3.300 V
X1G0038410052	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038410054	TG-5035CJ	16.367667 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	愛普生晶振	1.700 to 3.300 V
X1G0038510014	TG-5035CG	16.369000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038510016	TG-5035CG	16.368000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	愛普生晶振	2.660 to 2.940 V
X1G0038510032	TG-5035CG	24.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0038510039	TG-5035CG	32.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	愛普生晶振	1.700 to 3.300 V
X1G0038510042	TG-5035CG	40.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	愛普生晶振	1.700 to 3.300 V
X1G0038510043	TG-5035CG	38.400000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0038510049	TG-5035CG	16.369000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	愛普生晶振	1.700 to 3.300 V
X1G0038510051	TG-5035CG	33.600000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	愛普生晶振	1.700 to 3.300 V
X1G0038510077	TG-5035CG	24.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	愛普生晶振	1.700 to 3.600 V
X1G003851A058	TG-5035CG	26.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	愛普生晶振	1.700 to 1.900 V
X1G0039010051	TG-5501CA	24.576000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010057	TG-5501CA	49.152000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010083	TG-5501CA	27.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010085	TG-5501CA	15.360000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010087	TG-5501CA	26.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010089	TG-5501CA	16.384000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010090	TG-5501CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010091	TG-5501CA	19.440000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010093	TG-5501CA	40.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010095	TG-5501CA	20.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010097	TG-5501CA	50.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010098	TG-5501CA	10.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	愛普生晶振	3.135 to 3.465 V
X1G0039010101	TG-5501CA	10.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0039010102	TG-5501CA	12.800000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0039010103	TG-5501CA	16.384000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0039010104	TG-5501CA	19.440000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0039010107	TG-5501CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0039010108	TG-5501CA	26.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0039010109	TG-5501CA	27.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0039010200	TG-5501CA	30.720000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0039010201	TG-5501CA	40.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0039010202	TG-5501CA	49.152000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0039010203	TG-5501CA	50.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
X1G0039010204	TG-5501CA	15.360000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	愛普生晶振	3.135 to 3.465 V
