DSK321STD時計溫補晶振,KDS高精度晶振,1XZA032768AD19，尺寸3.2*2.5mm,頻率32.768KHZ，輸出邏輯CMOS，日本進口晶振，日本大真空晶振，大真空溫補晶振，四腳有源晶振，TCXO溫補晶振，3225mm有源晶振，有源晶體振蕩器，TCXO晶振，時鐘晶體振蕩器，溫度補償晶體振蕩器，32.768KHZ有源晶振，石英溫補晶振，時計應用有源晶振，導航定位專用有源晶振，北斗定位有源晶振，航空電子專用有源晶振，智能家居有源晶振，智能電網有源晶振，低電壓有源晶振，低功耗有源晶振，低抖動有源晶振，低耗能有源晶振，具有良好的可靠性能以及穩定性能。
SMD振蕩器產品比較適合用于時計應用，導航定位，北斗定位，航空電子，智能家居，智能電網等領域。DSK321STD時計溫補晶振,KDS高精度晶振,1XZA032768AD19.

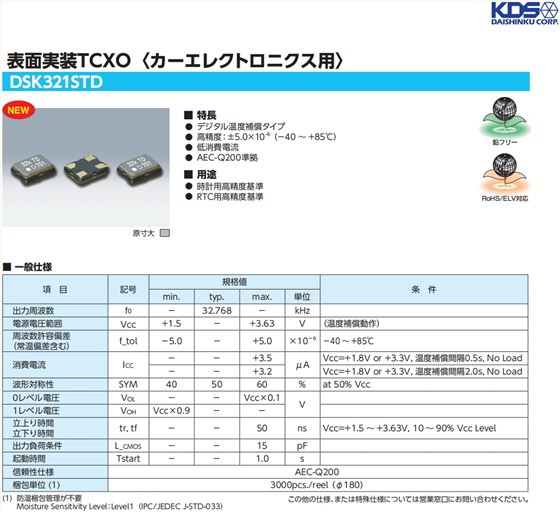

DSK321STD時計溫補晶振,KDS高精度晶振,1XZA032768AD19 參數表
| 項目 | 記號 | 規格値 | 條件 | |||
|---|---|---|---|---|---|---|
| min. | typ. | max. | 単位 | |||
| 出力周波數 | fo | - | 32.768 | - | kHz | |
| 電源電圧範囲 | VCC | +1.5 | - | +3.63 | V | （溫度補償動作） |
|
周波數許容偏差 （常溫偏差含む） |
f_tol | -5.0 | - | +5.0 | ×10-6 | -40?+85℃ |
| 消費電流 | ICC | - | - | +3.5 | μA | VCC=+1.8V or +3.3V, 溫度補償間隔0.5s, No Load |
| - | - | +3.2 | VCC=+1.8V or +3.3V, 溫度補償間隔2.0s, No Load | |||
| 波形対稱性 | SYM | 40 | 50 | 60 | % | at 50% VCC |
| 0レベル電圧 | VOL | - | - | VCC×0.1 | V | |
| 1レベル電圧 | VOH | VCC×0.9 | - | - | ||
|
立上り時間 立下り時間 |
tr, tf | - | - | 50 | ns | VCC=+1.5?+3.63V, 10~90% VCCLevel |
| 出力負荷條件 | L_CMOS | - | - | 15 | pF | |
| 起動時間 | Tstart | - | - | 1.0 | s | |
| 信頼性仕様 | AEC-Q200 | |||||
| 梱包単位（1） | 2000pcs./reel （φ180） | |||||

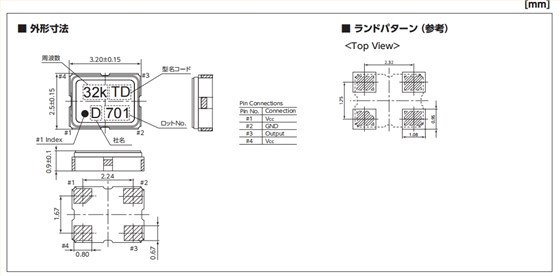

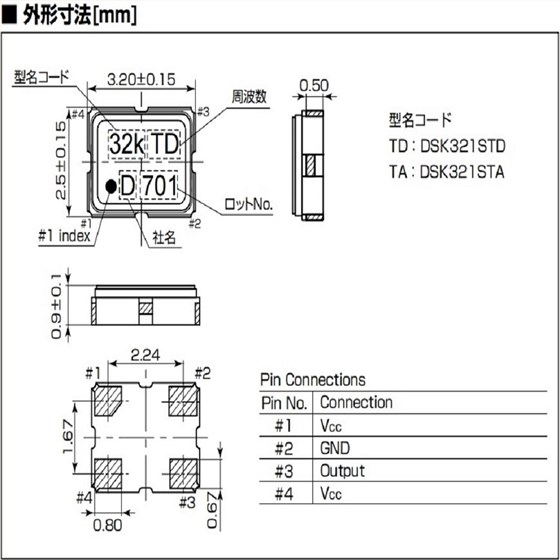

DSK321STD時計溫補晶振,KDS高精度晶振,1XZA032768AD19 尺寸圖
DSK321STD時計溫補晶振,KDS高精度晶振,1XZA032768AD19
3225有源晶振產品特性：
數字溫度補償型
高精度:±5.0×10-6(-40 ~ +85℃)
低耗電流
兼容AEC-Q200
CMOS輸出
| 品牌 | 原廠代碼 | 高品質晶振型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 |
| KDS晶振 | SB103CE1MM | SINGLE | ||||
| KDS晶振 | 1JAAL0032768BAAX | MO1532 | 32.768K | |||
| KDS晶振 | 17CG03840A06 | DSR1612ATH | 1612 | 38.400M | 8PF | 10ppm |
| KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4M | 7pf | 12ppm |
| KDS晶振 | 1XZA032768AD19 | DSK321STD | 3225 | 32.768K | ||
| KDS晶振 | 7FG00003A03 | DSO1612AR | 1612 | 32.768KHZ | 3.3V | 20PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000M | 3.3V | 50ppm |
| KDS晶振 | 1XSF016000EH | DSO221SHF | 2520 | 16.000M | ||
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000M | 3.3V | 50ppm |
| KDS晶振 | 7FE02496A00 | DSO221SX | 2520 | 24.96M | ||
| KDS晶振 | 1XSF033333ARA | DSO221SR | 2520 | 33.3333M | 100ppm | |
| KDS晶振 | 1XSE024000AW1 | DSO321SW | 3225 | 24.000M | ||
| KDS晶振 | 1XSE025000AR5 | DSO321SR | 3225 | 25.000M | ||
| KDS晶振 | 1XSE033333ARD | DSO321SR | 3225 | 33.3333M | ||
| KDS晶振 | 1XSE038702AR | DSO321SRAB | 3225 | 38.7024M | ||
| KDS晶振 | 1XSE050000ART | DSO321SR | 3225 | 50.000M | 100ppm | |
| KDS晶振 | 1XST156250AKM | DSO323SK | 3225 | 156.25M | 50PPM | |
| KDS晶振 | 1XSR025000AR25 | DSO751SR | 7050 | 25.000M | 3.3V | 50ppm |
| KDS晶振 | 1XSA050000AVW | DSO751SV | 7050 | 50.000M | 3.3V | 100ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367667M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367667M | 2.8V | 1.5ppm |
| KDS晶振 | 1XXD24000MBA | DSB211SDN | 2016 | 24.000M | ||
| KDS晶振 | 1XXD26000MAA | DSB211SDN | 2016 | 26.000M | ||
| KDS晶振 | 1XXD38400MFA | DSB211SDN | 2016 | 38.400M | ||
| KDS晶振 | 1XXD40000PDA | DSB211SDN | 2016 | 40.000M | ||
| KDS晶振 | 1XXD32000PBA | DSB211SDN | 2016 | 32.000M | ||
| KDS晶振 | 1XXD52000PBA | DSB211SDN | 2016 | 52.000M | ||
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32M | 3.3V | 1.5ppm |
| KDS晶振 | 7DF01920A09 | DSA211SDN | 2016 | 19.200M | ||
| KDS晶振 | 1XXC20000MAA | DSA211SDN | 2016 | 20.000M | ||
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB24000MEA | DSB221SDN | 2520 | 24.000M | ||
| KDS晶振 | 1XXB25000PAA | DSB221SDN | 2520 | 25.000M | ||
| KDS晶振 | 1XXB26000MAA | DSB221SDN | 2520 | 26.000M | ||
| KDS晶振 | 1XXB30000MBA | DSB221SDN | 2520 | 30.000M | ||
| KDS晶振 | 1XXB32000PAA | DSB221SDN | 2520 | 32.000M | ||
| KDS晶振 | 7ED03360A00 | DSB321SDN | 3225 | 33.6M | ||
| KDS晶振 | 7ED01638A03 | DSB321SDN | 3225 | 16.384M | ||
| KDS晶振 | 1XSE022579ARC | DSO321SR | 3225 | 22.5792M | 50PPM | |
| KDS晶振 | 1XTQ19200ELA | DSA535SG | 5032 | 19.200M | 50PPM | |
| KDS晶振 | 1XXA26000FSB | DSA221SCL | 2520 | 26.000M | ||
| KDS晶振 | 1XXB38400MCB | DSB221SDN | 2520 | 38.4M | 3.3V | |
| KDS晶振 | 7EE05200A02 | DSB221SDN | 2520 | 52.000M | ||
| KDS晶振 | 1XXA10000MBA | DSA221SDN | 2520 | 10.000M | 3.3V | 0.5PPM |
| KDS晶振 | 1XXA26000MAA | DSA221SDN | 2520 | 26.000M | ||
| KDS晶振 | 1XXA32000MBA | DSA221SDN | 2520 | 32.000M | ||
| KDS晶振 | 1XXA20000CAA | DSA221SDN | 2520 | 20.000M | 3.3V | 1.5ppm |
| KDS晶振 | 1XTW16368FEA | DSB321SCL | 3225 | 16.368M | 2.8V | 2.5ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6M | 3.3V | 100ppm |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304M | 3.3V | 50ppm |
| KDS晶振 | 1XTW38400MAA | DSB321SDN | 3225 | 38.400M | ||
| KDS晶振 | 1XTV21700PAA | DSA321SDN | 3225 | 21.7M | ||
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04M | 3.3V | 1.5ppm |
| KDS晶振 | 1XVD008192VB | DSV321SV | 3225 | 8.192M | 3.3V | 40ppm |
| KDS晶振 | 1XVD024000VA | DSV321SV | 3225 | 24.000M | 3.3V | 40ppm |
| KDS晶振 | 1XVD030240VA | DSV321SV | 3225 | 30.240M | 3.3V | 50ppm |
| KDS晶振 | 1XVD051993VB | DSV321SV | 3225 | 51.993652M | 3.3V | 50ppm |
| KDS晶振 | 1XVD059928VA | DSV321SV | 3225 | 59.9285M | 3.3V | 50ppm |
