SMD100.3C (E/D)-30.000MHz,SMD100系列,7050mm,GED石英振蕩器特點:
HCMOS/TTL輸出
5.0V電源電壓
陶瓷SMD振蕩器封裝
可用于磁帶和卷軸
SMD100.3C (E/D)-30.000MHz,SMD100系列,7050mm,GED石英振蕩器 參數表
| ELECTRICAL SPECIFICATIONS | |||||
| Frequency Range | 30.000MHz | ||||
| Frequency Stability | ±20ppm±25ppm±50ppm±100ppm | ||||
| Operating Temperature Range | 0°Cto+70°Cor–40°Cto 85°C | ||||
| Storage Temperature Range | -55 ~ +125°C | ||||
| Input Voltage | +5.0VDC±10% | ||||
| Input Current |
1.000MHz to 32.000MHz 33.000MHz to 49.000MHz 50.000MHz to 69.000MHz 70.000MHz to 133.000MHz |
20mA Max 45mA Max 50mA Max 100mA Max |
|||
| Symmetry | 50±10% Standard,50±5% Available | ||||
| Rise / Fall Time | TTL | 5nSeconds Typical, 10nSeconds Max | |||
| CMOS | 5nSeconds Typical, 10nSeconds Max | ||||
| Output Level | TTL | VOL: 0.4V MaxVOH: +2.4V Min | |||
| CMOS | VOL: 0.5V MaxVOH: VDD– 0.5V Min | ||||
| Output Load | CMOS, compatible, 1~10TTL Gates | ||||
| Pin 1 Option | No connectionEnable/Disable (Tristate) | ||||

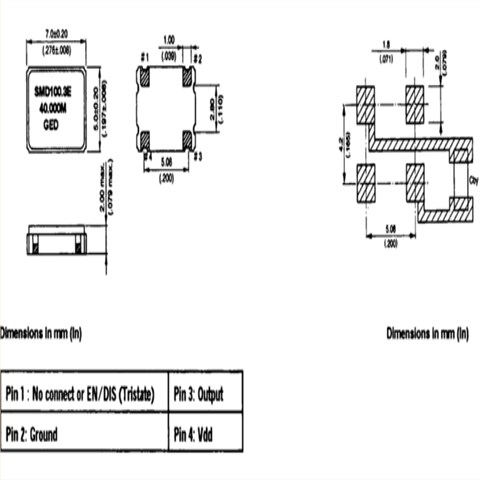

SMD100.3C (E/D)-30.000MHz,SMD100系列,7050mm,GED石英振蕩器 尺寸圖
