產品簡介

MTI-milliren衛星通信晶振,405系列溫補振蕩器,5032mm歐美晶振，尺寸5.0*3.2mm,頻率范圍10~40MHZ，歐美進口晶振，米利倫石英振蕩子，石英溫補晶振，5032石英晶體振蕩器，溫度補償晶體振蕩器，TCXO晶體振蕩器，貼片溫補振蕩器，有源溫補晶振，衛星通信溫補晶振，定位系統專用溫補晶振，測試測量溫補晶振，智能家電溫補晶振，娛樂設備溫補晶振，以太網溫補晶振，低電壓溫補晶振，低功耗溫補晶振，低耗能溫補晶振，低相位溫補晶振，低相噪溫補晶振，具有低電壓高性能的特點，TCXO晶振產品非常適合用于衛星通信，定位系統，測試測量，智能家電，娛樂設備，以太網等應用。MTI-milliren衛星通信晶振,405系列溫補振蕩器,5032mm歐美晶振.

產品詳情

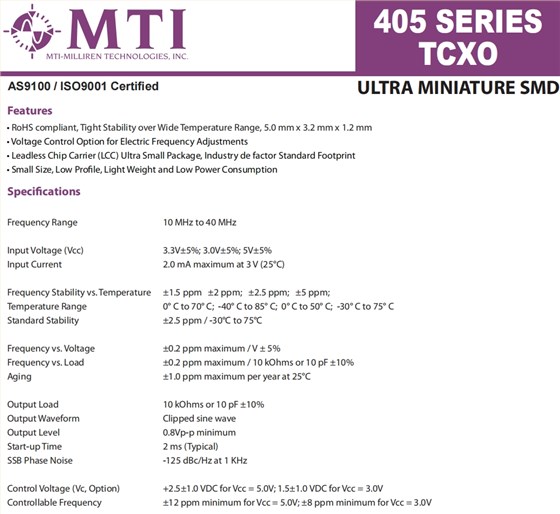

MTI-milliren衛星通信晶振,405系列溫補振蕩器,5032mm歐美晶振 參數表

Frequency Range			10 MHz to 40 MHz
Input Voltage (Vcc)			3.3V±5%; 3.0V±5%; 5V±5% 2.0 mA maximum at 3 V (25°C)
Input Current
Frequency Stability vs. Temperature			±1.5 ppm±2 ppm;±2.5 ppm;±5 ppm;
Temperature Range			0° C to 70° C;-40° C to 85° C;0° C to 50° C;-30° C to 75° C ±2.5 ppm / -30°C to 75°C
Standard Stability
Frequency vs. Voltage			±0.2 ppm maximum / V ± 5%
Frequency vs. Load			±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1.0 ppm maximum per year at 25°C
Aging
Output Load			10 kOhms or 10 pF ±10% Clipped sine wave 0.8Vp-p minimum 2 ms (Typical)
Output Waveform
Output Level
Start-up Time
SSB Phase Noise			-125 dBc/Hz at 1 KHz
Control Voltage (Vc, Option)			+2.5±1.0 VDC for Vcc = 5.0V; 1.5±1.0 VDC for Vcc = 3.0V
Controllable Frequency			±12 ppm minimum for Vcc = 5.0V; ±8 ppm minimum for Vcc = 3.0V
