產品簡介

406系列TCXO振蕩器,3225mm,加拿大米利倫晶振，尺寸3.2*2.5mm,頻率范圍10~52MHZ，進口有源晶振，3225mm溫補振蕩器，TCXO晶體振蕩器，MTI-milliren有源晶振，有源溫補晶振，溫度補償晶體振蕩器，石英溫補振蕩器，北斗定位有源晶振，OSC有源晶振，環保型有源晶振，微波通信有源晶振，可視化智能家居有源晶振，數字視頻有源晶振，測試測量有源晶振，無線局域網有源晶振，低電壓有源晶振，低耗能有源晶振，低抖動有源晶振，低相位有源晶振，低相噪有源晶振，具有低電壓低耗能的特點。有源晶振產品主要應用范圍廣，常用于北斗定位，微波通信，可視化智能家居，數字視頻，測試測量，無線局域網等應用。406系列TCXO振蕩器,3225mm,加拿大米利倫晶振.

產品詳情

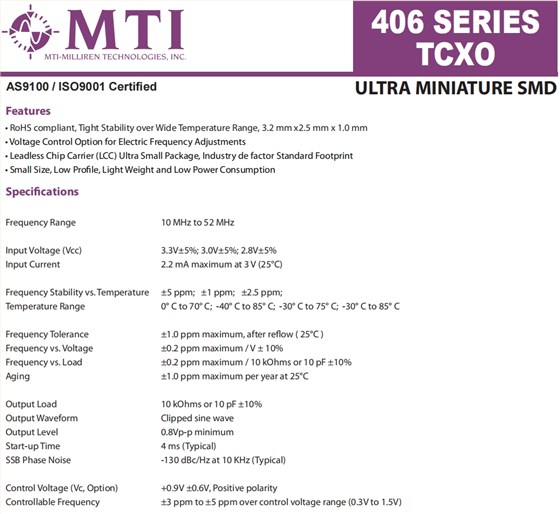

406系列TCXO振蕩器,3225mm,加拿大米利倫晶振 參數表

Frequency Range			10 MHz to 52 MHz
Input Voltage (Vcc)			3.3V±5%; 3.0V±5%; 2.8V±5% 2.2 mA maximum at 3 V (25°C)
Input Current
Frequency Stability vs. Temperature			±5 ppm;±1 ppm;±2.5 ppm;
Temperature Range			0° C to 70° C;-40° C to 85° C;-30° C to 75° C;-30° C to 85° C ±1.0 ppm maximum, after reflow ( 25°C )
Frequency Tolerance
Frequency vs. Voltage			±0.2 ppm maximum / V ± 10%
Frequency vs. Load			±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1.0 ppm maximum per year at 25°C
Aging
Output Load			10 kOhms or 10 pF ±10% Clipped sine wave 0.8Vp-p minimum 4 ms (Typical)
Output Waveform
Output Level
Start-up Time
SSB Phase Noise			-130 dBc/Hz at 10 KHz (Typical) +0.9V ±0.6V, Positive polarity
Control Voltage (Vc, Option)
Controllable Frequency			±3 ppm to ±5 ppm over control voltage range (0.3V to 1.5V)
