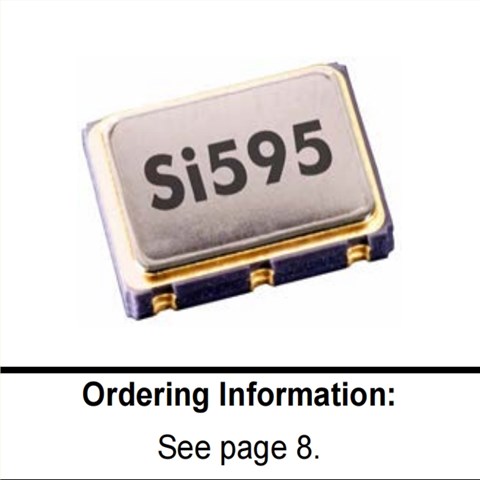

Skyworks壓控晶振-595CD40M0000DGR-Si595有源振蕩器-6G無線晶振

Skyworks壓控晶振-595CD40M0000DGR-Si595有源振蕩器-6G無線晶振Skyworks壓控晶振-595CD40M0000DGR-Si595有源振蕩器-6G無線晶振

產品簡介

Skyworks壓控晶振-595CD40M0000DGR-Si595有源振蕩器-6G無線晶振，尺寸7.0*5.0mm,頻率40MHZ，輸出邏輯CMOS，有源貼片晶振，CMOS輸出有源晶振，VCXO壓控晶振，CMOS貼片型振蕩器，壓控晶體振蕩器，OSC貼片振蕩器，SMD振蕩器，低電壓有源晶振，低損耗有源晶振，低相位有源振蕩器，低功耗有源晶振，低相噪有源晶振，高性能有源晶振，高質量有源晶振，網絡設備有源晶振，娛樂設備有源晶振，時鐘恢復有源晶振，光纖接入壓控晶振，具有低抖動低電壓低功耗的特點.

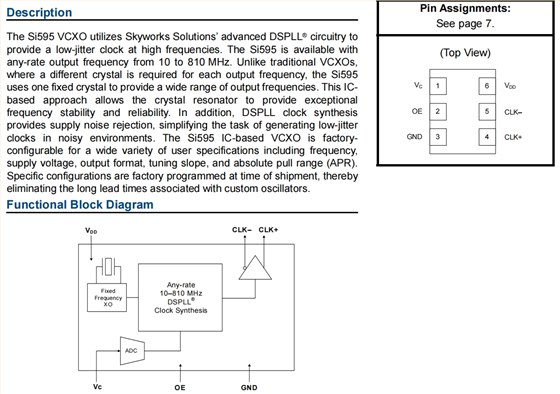

Si595 VCXO利用Skyworks Solutions的先進DSPLL®電路在高頻下提供低抖動時鐘。Si595貼片晶體振蕩器具有從10到810MHz的任何速率輸出頻率。與傳統的VCXO不同，其中每個輸出頻率需要不同的晶體，Si595使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體諧振器提供卓越的性能頻率穩定性和可靠性。此外，DSPLL時鐘合成提供電源噪聲抑制，簡化了生成低抖動的任務噪音環境中的時鐘。Skyworks壓控晶振-595CD40M0000DGR-Si595有源振蕩器-6G無線晶振.




產品詳情

Skyworks壓控晶振-595CD40M0000DGR-Si595有源振蕩器-6G無線晶振，尺寸7.0*5.0mm,頻率40MHZ，輸出邏輯CMOS，有源貼片晶振，CMOS輸出有源晶振，VCXO壓控晶振，CMOS貼片型振蕩器，壓控晶體振蕩器，OSC貼片振蕩器，SMD振蕩器，低電壓有源晶振，低損耗有源晶振，低相位有源振蕩器，低功耗有源晶振，低相噪有源晶振，高性能有源晶振，高質量有源晶振，網絡設備有源晶振，娛樂設備有源晶振，時鐘恢復有源晶振，光纖接入壓控晶振，具有低抖動低電壓低功耗的特點.

Si595 VCXO利用Skyworks Solutions的先進DSPLL®電路在高頻下提供低抖動時鐘。Si595貼片晶體振蕩器具有從10到810MHz的任何速率輸出頻率。與傳統的VCXO不同，其中每個輸出頻率需要不同的晶體，Si595使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體諧振器提供卓越的性能頻率穩定性和可靠性。此外，DSPLL時鐘合成提供電源噪聲抑制，簡化了生成低抖動的任務噪音環境中的時鐘。Skyworks壓控晶振-595CD40M0000DGR-Si595有源振蕩器-6G無線晶振.

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

Skyworks壓控晶振-595CD40M0000DGR-Si595有源振蕩器-6G無線晶振參數表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		110
100
90
80 		125
110
100
90 		mA
Tristate mode — 60 75
Output Enable (OE)2 VIH 0.75 x VDD — — V
VIL — — 0.5
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2 fO LVPECL/LVDS/CML 10 — 810 MHz
CMOS 10 — 160
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Total Stability Note 3, second option code “D” ±20 ppm
Note 3, second option code “C” ±30 ppm
Note 4, second option code “B” — — ±50 ppm
Note 4, second option code “A” — — ±100 ppm
Temperature Stability second option code “D” — — ±7 ppm
second option code “C” ±20 ppm
second option code “B” ±25 ppm
second option code “A” — — ±50 ppm
Powerup Time5 tOSC — — 10 ms
Parameter Symbol Test Condition Min Typ Max Units
LVPECL Output Option1 VO mid-level VDD– 1.42 VDD– 1.25 V
VOD swing (diff) 1.1 1.9 VPP
VSE swing (single-ended) 0.55 0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level — VDD– 1.30 — V
1.8 V option mid-level — VDD– 0.36 —
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50
CMOS Output Option3 VOH 0.8 x VDD — VDD V
VOL — — 0.4
Rise/Fall time (20/80%) tR,tF LVPECL/LVDS/CML — — 350 ps
CMOS with CL= 15 pF — 2 — ns
Symmetry (duty cycle) SYM LVPECL:VDD– 1.3 V (diff)
LVDS:1.25 V (diff)
CMOS:VDD/2 		45 — 55 %
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

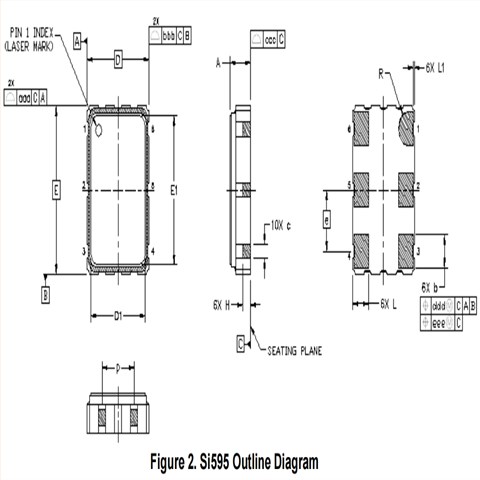

Skyworks壓控晶振-595CD40M0000DGR-Si595有源振蕩器-6G無線晶振尺寸圖

Si595 7.050

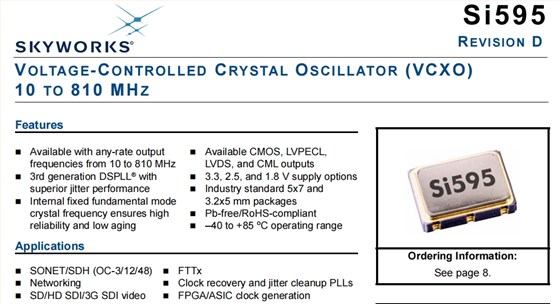

SMD振蕩器產品特性：

可用于任何速率輸出

頻率從10到810兆赫

第三代DSPLL®卓越的抖動性能

內部固定基本模式

晶體頻率確保高

可靠性和低老化

可用的CMOS、LVPECL、LVDS和CML輸出

3.3、2.5和1.8 V電源選項

行業標準5x7和3.2x5 mm包裝

無鉛/符合RoHS

–40至+85ºC工作范圍


Si595 1Si595 2

更多相關Skyworks有源晶振型號

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply
595CA000149DGR Skyworks有源晶振 XTAL OSC VCXO 149.0000KHZ CMOS Si595 149 kHz CMOS 3.3V
595CA12M2880DGR Skyworks有源晶振 XTAL OSC VCXO 12.2880MHZ CMOS Si595 12.288 MHz CMOS 3.3V
595CA28M0000DGR Skyworks有源晶振 XTAL OSC VCXO 28.0000MHZ CMOS Si595 28 MHz CMOS 3.3V
595CA65M0000DGR Skyworks有源晶振 XTAL OSC VCXO 65.0000MHZ CMOS Si595 65 MHz CMOS 3.3V
595CA74M2500DGR Skyworks有源晶振 XTAL OSC VCXO 74.2500MHZ CMOS Si595 74.25 MHz CMOS 3.3V
595CB10M0000DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CB10M2400DGR Skyworks有源晶振 XTAL OSC VCXO 10.2400MHZ CMOS Si595 10.24 MHz CMOS 3.3V
595CB12M2880DGR Skyworks有源晶振 XTAL OSC VCXO 12.2880MHZ CMOS Si595 12.288 MHz CMOS 3.3V
595CB12M2890DGR Skyworks有源晶振 XTAL OSC VCXO 12.2890MHZ CMOS Si595 12.289 MHz CMOS 3.3V
595CB28M0000DGR Skyworks有源晶振 XTAL OSC VCXO 28.0000MHZ CMOS Si595 28 MHz CMOS 3.3V
595CB70M6560DGR Skyworks有源晶振 XTAL OSC VCXO 70.6560MHZ CMOS Si595 70.656 MHz CMOS 3.3V
595CB95M5730DGR Skyworks有源晶振 XTAL OSC VCXO 95.5730MHZ CMOS Si595 95.573 MHz CMOS 3.3V
595CD000299DGR Skyworks有源晶振 XTAL OSC VCXO 299.0000KHZ CMOS Si595 299 kHz CMOS 3.3V
595CD122M880DGR Skyworks有源晶振 XTAL OSC VCXO 122.8800MHZ CMOS Si595 122.88 MHz CMOS 3.3V
595CD34M3680DGR Skyworks有源晶振 XTAL OSC VCXO 34.3680MHZ CMOS Si595 34.368 MHz CMOS 3.3V
595CD35M3280DGR Skyworks有源晶振 XTAL OSC VCXO 35.3280MHZ CMOS Si595 35.328 MHz CMOS 3.3V
595CD40M0000DGR Skyworks有源晶振 XTAL OSC VCXO 40.0000MHZ CMOS Si595 40 MHz CMOS 3.3V
595CD44M7360DGR Skyworks有源晶振 XTAL OSC VCXO 44.7360MHZ CMOS Si595 44.736 MHz CMOS 3.3V
595CD50M0000DGR Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ CMOS Si595 50 MHz CMOS 3.3V
595CC10M0000DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CC125M000DG Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ CMOS Si595 125 MHz CMOS 3.3V
595CC60M7500DG Skyworks有源晶振 XTAL OSC VCXO 60.7500MHZ CMOS Si595 60.75 MHz CMOS 3.3V
595CF10M0000DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CF24M0000DG Skyworks有源晶振 XTAL OSC VCXO 24.0000MHZ CMOS Si595 24 MHz CMOS 3.3V
595CF27M0000DG Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si595 27 MHz CMOS 3.3V
595CF60M7500DG Skyworks有源晶振 XTAL OSC VCXO 60.7500MHZ CMOS Si595 60.75 MHz CMOS 3.3V
595CG38M7853DG Skyworks有源晶振 XTAL OSC VCXO 38.7853MHZ CMOS Si595 38.7853 MHz CMOS 3.3V
595CG50M0000DG Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ CMOS Si595 50 MHz CMOS 3.3V
595CG61M4400DG Skyworks有源晶振 XTAL OSC VCXO 61.4400MHZ CMOS Si595 61.44 MHz CMOS 3.3V
595CG67M5000DG Skyworks有源晶振 XTAL OSC VCXO 67.5000MHZ CMOS Si595 67.5 MHz CMOS 3.3V
595PG27M0000DG Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si595 27 MHz CMOS 3.3V
595VF49M1520DG Skyworks有源晶振 XTAL OSC VCXO 49.1520MHZ CMOS Si595 49.152 MHz CMOS 1.8V
595CG10M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 10 MHz CMOS 3.3V
595CG93M3120DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 93.312 MHz CMOS 3.3V
595CS61M4400DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 61.44 MHz CMOS 3.3V
595JM49M1520DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 49.152 MHz CMOS 1.8V
595CM20M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 20 MHz CMOS 3.3V
595CS54M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 54 MHz CMOS 3.3V
595CS49M1520DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 49.152 MHz CMOS 3.3V
595CC10M0000DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CC125M000DGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ CMOS Si595 125 MHz CMOS 3.3V
595CC60M7500DGR Skyworks有源晶振 XTAL OSC VCXO 60.7500MHZ CMOS Si595 60.75 MHz CMOS 3.3V
595CF10M0000DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CF24M0000DGR Skyworks有源晶振 XTAL OSC VCXO 24.0000MHZ CMOS Si595 24 MHz CMOS 3.3V
595CF27M0000DGR Skyworks oscillator XTAL OSC VCXO 27.0000MHZ CMOS Si595 27 MHz CMOS 3.3V
595CF60M7500DGR Skyworks有源晶振 XTAL OSC VCXO 60.7500MHZ CMOS Si595 60.75 MHz CMOS 3.3V
595CG38M7853DGR Skyworks有源晶振 XTAL OSC VCXO 38.7853MHZ CMOS Si595 38.7853 MHz CMOS 3.3V
595CG50M0000DGR Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ CMOS Si595 50 MHz CMOS 3.3V
595CG61M4400DGR Skyworks有源晶振 XTAL OSC VCXO 61.4400MHZ CMOS Si595 61.44 MHz CMOS 3.3V
595CG67M5000DGR Skyworks有源晶振 XTAL OSC VCXO 67.5000MHZ CMOS Si595 67.5 MHz CMOS 3.3V
595PG27M0000DGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si595 27 MHz CMOS 3.3V
595VF49M1520DGR Skyworks有源晶振 XTAL OSC VCXO 49.1520MHZ CMOS Si595 49.152 MHz CMOS 1.8V
595CG93M3120DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 93.312 MHz CMOS 3.3V
595CG10M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 10 MHz CMOS 3.3V
595JM49M1520DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 49.152 MHz CMOS 1.8V
595CS54M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 54 MHz CMOS 3.3V
595CS61M4400DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 61.44 MHz CMOS 3.3V
595CS49M1520DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 49.152 MHz CMOS 3.3V
595CM20M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si595 20 MHz CMOS 3.3V
595CA000149DG Skyworks有源晶振 XTAL OSC VCXO 149.0000KHZ CMOS Si595 149 kHz CMOS 3.3V
595CA12M2880DG Skyworks有源晶振 XTAL OSC VCXO 12.2880MHZ CMOS Si595 12.288 MHz CMOS 3.3V
595CA28M0000DG Skyworks有源晶振 XTAL OSC VCXO 28.0000MHZ CMOS Si595 28 MHz CMOS 3.3V
595CA65M0000DG Skyworks有源晶振 XTAL OSC VCXO 65.0000MHZ CMOS Si595 65 MHz CMOS 3.3V
595CA74M2500DG Skyworks有源晶振 XTAL OSC VCXO 74.2500MHZ CMOS Si595 74.25 MHz CMOS 3.3V
595CB10M0000DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si595 10 MHz CMOS 3.3V
595CB10M2400DG Skyworks有源晶振 XTAL OSC VCXO 10.2400MHZ CMOS Si595 10.24 MHz CMOS 3.3V
595CB12M2880DG Skyworks有源晶振 XTAL OSC VCXO 12.2880MHZ CMOS Si595 12.288 MHz CMOS 3.3V
595CB12M2890DG Skyworks有源晶振 XTAL OSC VCXO 12.2890MHZ CMOS Si595 12.289 MHz CMOS 3.3V
595CB28M0000DG Skyworks有源晶振 XTAL OSC VCXO 28.0000MHZ CMOS Si595 28 MHz CMOS 3.3V
595CB70M6560DG Skyworks有源晶振 XTAL OSC VCXO 70.6560MHZ CMOS Si595 70.656 MHz CMOS 3.3V
595CB95M5730DG Skyworks有源晶振 XTAL OSC VCXO 95.5730MHZ CMOS Si595 95.573 MHz CMOS 3.3V
595CD000299DG Skyworks有源晶振 XTAL OSC VCXO 299.0000KHZ CMOS Si595 299 kHz CMOS 3.3V
595CD122M880DG Skyworks有源晶振 XTAL OSC VCXO 122.8800MHZ CMOS Si595 122.88 MHz CMOS 3.3V
595CD34M3680DG Skyworks有源晶振 XTAL OSC VCXO 34.3680MHZ CMOS Si595 34.368 MHz CMOS 3.3V
595CD35M3280DG Skyworks有源晶振 XTAL OSC VCXO 35.3280MHZ CMOS Si595 35.328 MHz CMOS 3.3V
595CD40M0000DG Skyworks有源晶振 XTAL OSC VCXO 40.0000MHZ CMOS Si595 40 MHz CMOS 3.3V
595CD44M7360DG Skyworks有源晶振 XTAL OSC VCXO 44.7360MHZ CMOS Si595 44.736 MHz CMOS 3.3V
595CD50M0000DG Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ CMOS Si595 50 MHz CMOS 3.3V
595CD64M0000DG Skyworks有源晶振 XTAL OSC VCXO 64.0000MHZ CMOS Si595 64 MHz CMOS 3.3V
595CD74M2500DG Skyworks有源晶振 XTAL OSC VCXO 74.2500MHZ CMOS Si595 74.25 MHz CMOS 3.3V
595CD96M0000DG Skyworks有源晶振 XTAL OSC VCXO 96.0000MHZ CMOS Si595 96 MHz CMOS 3.3V
595CE000256DG Skyworks有源晶振 XTAL OSC VCXO 256.0000KHZ CMOS Si595 256 kHz CMOS 3.3V
595CE100M000DG Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ CMOS Si595 100 MHz CMOS 3.3V
