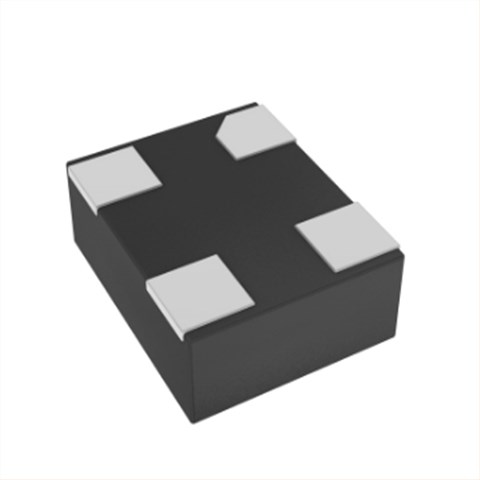

DSC1033CC2-125.0000T,Microchip時鐘振蕩器,125MHZ,3225mm,3.3V,歐美有源晶振,有源貼片晶振,MEMS可編程振蕩器,有源晶體振蕩器,OSC振蕩器,時鐘振蕩器,3225晶體振蕩器,SMD振蕩器,尺寸3.2*2.5mm,頻率125MHZ,電壓3.3V,低功耗晶振,低電壓晶振,低相位晶振,低相噪晶振,便攜式電子晶振,低姿態應用晶振,消費電子晶振,移動應用晶振,工業設備晶振,交換機晶振,路由器晶振.

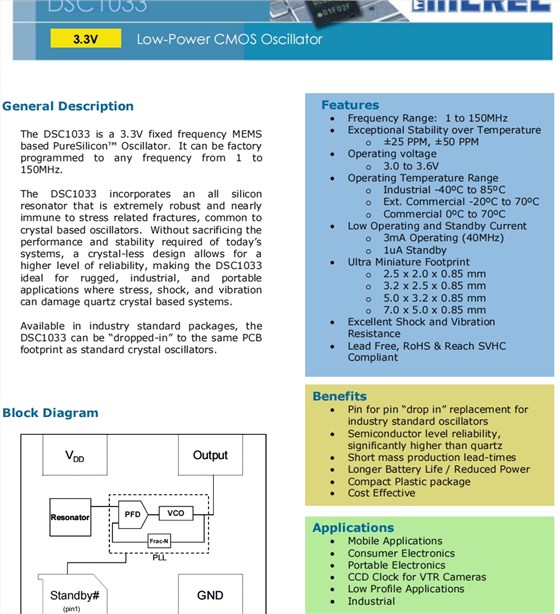

DSC1033CC2-125.0000T,Microchip時鐘振蕩器,125MHZ,3225mm,3.3V特點:
時鐘振蕩器頻率范圍：1至150MHz
卓越的溫度穩定性:±25PPM，±50PPM
工作電壓:3.0至3.6V
工作溫度范圍:工業-40ºC至85ºC,外部商用-20ºC至70ºC,商用0ºC至70ºC
低工作和備用電流,3mA工作（40MHz）,1uA待機
超小型占地面積 3.2 x 3.2 x 0.85毫米
卓越的沖擊和振動
無鉛、RoHS和Reach SVHC
DSC1033CC2-125.0000T,Microchip時鐘振蕩器,125MHZ,3225mm,3.3V 參數表
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | |||||||||||||||||||||||||
| Frequency | f0 | Single Frequency |
|
125 |
|
MHz | |||||||||||||||||||||||||
|
Frequency Tolerance Option 1 Option 2 Option 3 |
Δf |
-40°C to +85°C -20°C to +70°C 0°C to +70°C |
±25,±50 ±25,±50 ±25,±50 |
ppm | |||||||||||||||||||||||||||
| Supply Current, no load | IDD |
CL=0p RL=∞ T=25° C |
1 to 40MHz 40 to 80MHz 80 to 125MHz 125 to 150MHz |
3 4 5 6 |
10 | mA | |||||||||||||||||||||||||
| Supply Current, standby | IDD | T=25°C | 1.0 | uA | |||||||||||||||||||||||||||
|
Output Logic Levels Output logic high Output logic low |
VOH VOL |
CL=15pF |
0.8*VDD - |
- 0.2*VDD |
Volts | ||||||||||||||||||||||||||
|
Output Transition time Rise Time Fall Time |
tR tF |
CL=15pF; T=25°C 20%/80%*VDD |
1.3 1.3 |
2 2 |
ns | ||||||||||||||||||||||||||
| Output Startup Time2 | tSU | T=25°C | 1.5 | 3 | ms | ||||||||||||||||||||||||||
| Output Disable Time | tDA | 20 | 100 | ns | |||||||||||||||||||||||||||
| Output Duty Cycle | SYM | 45 | 55 | % | |||||||||||||||||||||||||||
|
Input Logic Levels Input logic high Input logic low |
VIH VIL |
0.75*VDD - |
- 0.25* VDD |
Volts | |||||||||||||||||||||||||||
| Jitter, Cycle to Cycle | JCC | F = 100MHz3 | 95 | ps | |||||||||||||||||||||||||||

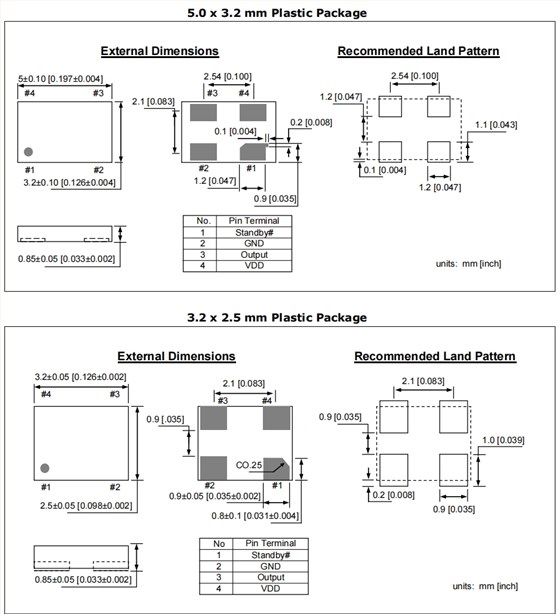

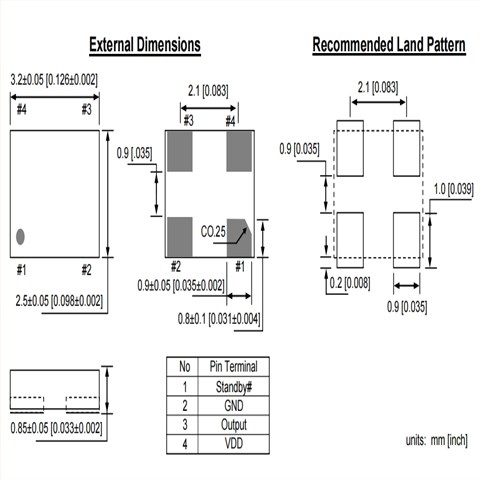

DSC1033CC2-125.0000T,Microchip時鐘振蕩器,125MHZ,3225mm,3.3V 尺寸圖
