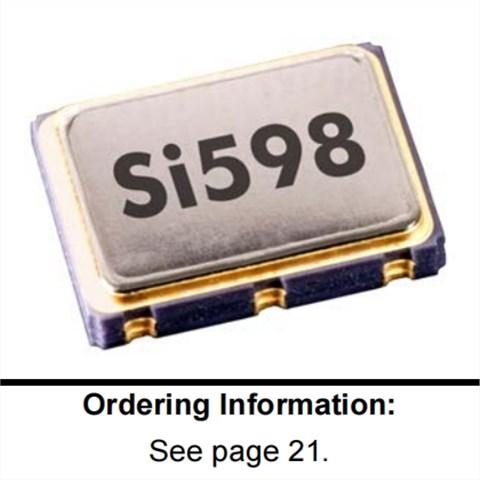

Skyworks貼片振蕩器Si598 598CBC000465DGR 6G移動設備晶振

Skyworks貼片振蕩器Si598 598CBC000465DGR 6G移動設備晶振Skyworks貼片振蕩器Si598 598CBC000465DGR 6G移動設備晶振

產品簡介

Skyworks貼片振蕩器Si598 598CBC000465DGR 6G移動設備晶振，尺寸7.0*5.0mm,頻率60MHZ,支持輸出CMOS，OSC貼片晶體振蕩器，CMOS輸出晶振，SMD振蕩器，XO時鐘振蕩器，60MHZ有源振蕩器，有源貼片晶振，低抖動有源晶振，有源晶體振蕩器，7050mm有源晶振，高性能有源晶振，低相位有源晶振，低功耗有源晶振，低相位有源晶振，低相噪有源晶振，6G移動通信晶振，路由器專用有源晶振，測試測量有源晶振，儀器設備有源晶振，智能家居有源晶振，數字視頻有源晶振，藍牙模塊有源晶振，具備超高的穩定性能以及耐壓性能，SMD振蕩器常常用于SONET/SDH/xDSL，以太網/光纖通道，3G SDI/HD SDI，多速率PLL，多速率參考時鐘，頻率保證金，數字PLL，CPU/FPGA FIFO控制等。

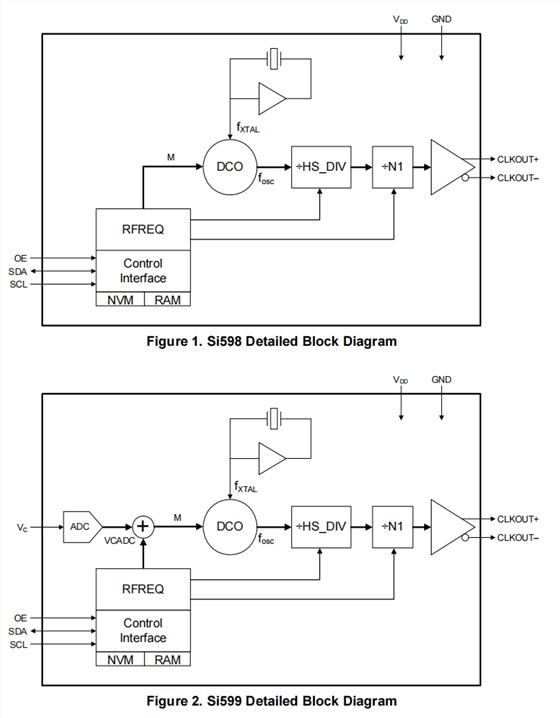

Si598 XO/Si599 VCXO采用Skyworks Solutions的先進DSPLL®電路，以提供任何頻率的低抖動時鐘。它們可由用戶編程為10至810 MHz的任何輸出頻率，每萬億（PPT）分辨率。該時鐘有源晶振通過2引腳I2C兼容進行編程串行接口。寬頻率范圍和超精細編程分辨率使這些設備成為需要電路內動態頻率的應用的理想選擇調整或具有非整數相關速率的多速率操作。使用集成晶體，這些設備提供穩定的低抖動頻率合成和替換多個XO、時鐘生成器和DAC控制的VCXO。Skyworks貼片振蕩器Si598 598CBC000465DGR 6G移動設備晶振.



產品詳情

Skyworks貼片振蕩器Si598 598CBC000465DGR 6G移動設備晶振，尺寸7.0*5.0mm,頻率60MHZ,支持輸出CMOS，OSC貼片晶體振蕩器，CMOS輸出晶振，SMD振蕩器，XO時鐘振蕩器，60MHZ有源振蕩器，有源貼片晶振，低抖動有源晶振，有源晶體振蕩器，7050mm有源晶振，高性能有源晶振，低相位有源晶振，低功耗有源晶振，低相位有源晶振，低相噪有源晶振，6G移動通信晶振，路由器專用有源晶振，測試測量有源晶振，儀器設備有源晶振，智能家居有源晶振，數字視頻有源晶振，藍牙模塊有源晶振，具備超高的穩定性能以及耐壓性能，SMD振蕩器常常用于SONET/SDH/xDSL，以太網/光纖通道，3G SDI/HD SDI，多速率PLL，多速率參考時鐘，頻率保證金，數字PLL，CPU/FPGA FIFO控制等。

Si598 XO/Si599 VCXO采用Skyworks Solutions的先進DSPLL®電路，以提供任何頻率的低抖動時鐘。它們可由用戶編程為10至810 MHz的任何輸出頻率，每萬億（PPT）分辨率。該時鐘有源晶振通過2引腳I2C兼容進行編程串行接口。寬頻率范圍和超精細編程分辨率使這些設備成為需要電路內動態頻率的應用的理想選擇調整或具有非整數相關速率的多速率操作。使用集成晶體，這些設備提供穩定的低抖動頻率合成和替換多個XO、時鐘生成器和DAC控制的VCXO。Skyworks貼片振蕩器Si598 598CBC000465DGR 6G移動設備晶振.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

Skyworks貼片振蕩器Si598 598CBC000465DGR 6G移動設備晶振參數表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
1.8 V option 1.71 1.8 1.89 V
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS


120
108
99
90 		130
120
110
100 		mA
mA
mA
mA
Tristate mode 60 75 mA
Output Enable (OE)2,
Serial Data (SDA),
Serial Clock (SCL) 		VIH 0.75 x VDD V
VIL 0.5 V
Operating Temperature Range TA –40 85 ºC
Parameter Symbol Test Condition Min Typ Max Units
Control Voltage Tuning Slope1,2,3 KV 10 to 90% of VDD —
—
—
—
— 		45
95
125
185
380 		—
—
—
—
— 		ppm/V
ppm/V
ppm/V
ppm/V
ppm/V
Control Voltage Linearity4 LVC BSL –5 ±1 +5 %
Incremental –10 ±5 +10 %
Modulation Bandwidth BW 9.3 10.0 10.7 kHz
VCInput Impedance ZVC 500 — — kΩ
VCInput Capacitance CVC — 50 — pF
Nominal Control Voltage VCNOM @ fO — VDD/2 — V
Control Voltage Tuning Range VC 0 — VDD V
Parameter Symbol Test Condition Min Typ Max Units
Programmable Frequency
Range1,2,3 		fO LVPECL/LVDS/CML 10 — 810 MHz
CMOS 10 — 160 MHz
Total Stability (Si598)1,2,4,5 Temp stability = ±20 ppm — — ±30 ppm
Temp stability = ±25 ppm — — ±50 ppm
Temp stability = ±50 ppm — — ±100 ppm
Temperature Stability (Si599)1,5 TA= –40 to +85 ºC –20
–50 		—
— 		+20
+50 		ppm
Absolute Pull Range1,5(Si599) APR ±10 — ±370 ppm
Powerup Time6 tOSC — — 10 ms
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

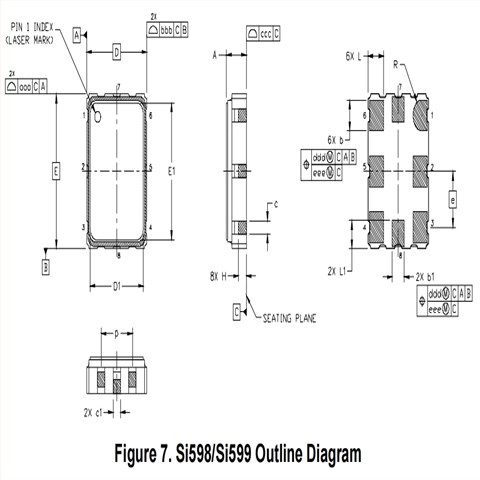

Skyworks貼片振蕩器Si598 598CBC000465DGR 6G移動設備晶振尺寸圖

Si598 Si599

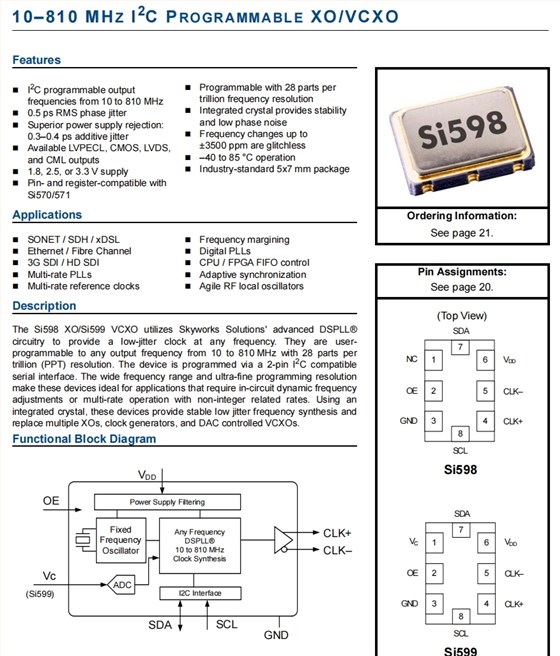

時鐘振蕩器產品特性：

可編程輸出頻率從10到810兆赫

0.5 ps RMS相位抖動

卓越的電源抑制：0.3–0.4ps附加抖動

可用LVPECL、CMOS、LVDS，和CML輸出

1.8、2.5或3.3 V電源

引腳和寄存器兼容Si570/571

可編程，每個28個部件萬億頻率分辨率

集成晶體提供穩定性和低相位噪聲

頻率變化高達±3500 ppm無故障

–40至85°C操作

行業標準5x7mm封裝

Si598 Si599 1Si598 Si599 2

更多相關美國Skyworks晶振型號

Mfr Part # Mfr Description Series Frequency Output
598ACA000105DG Skyworks有源晶振 XTAL OSC XO 622.0800MHZ LVPECL Si598 622.08 MHz LVPECL
598BCA001653DG Skyworks有源晶振 XTAL OSC XO 90.0000MHZ LVDS SMD Si598 90 MHz LVDS
598DAC000112DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CML SMD Si598 10 MHz CML
598CBC000112DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598CAC000107DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598CAC000111DGR Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CMOS SMD Si598 25 MHz CMOS
598CAC000112DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598CAC000121DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si598 100 MHz CMOS
598CAC000736DGR Skyworks有源晶振 XTAL OSC XO 25.165824MHZ CMOS Si598 25.165824 MHz CMOS
598GAC000774DGR Skyworks有源晶振 XTAL OSC XO 50.0000MHZ CMOS SMD Si598 50 MHz CMOS
598JAC000107DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598PAC000107DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598PAC000141DGR Skyworks有源晶振 XTAL OSC XO 56.3200MHZ CMOS SMD Si598 56.32 MHz CMOS
598PAC000383DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ CMOS SMD Si598 150 MHz CMOS
598PAC001583DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598CAC000157DGR Skyworks有源晶振 XTAL OSC CMOS Si598 50 MHz CMOS
598JAC000112DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si598 10 MHz CMOS
598PAC002178DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si598 46.8 MHz CMOS
598JAC000923DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si598 52 MHz CMOS
598DAC000112DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CML SMD Si598 10 MHz CML
598CAC000107DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598CAC000111DG Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CMOS SMD Si598 25 MHz CMOS
598CAC000112DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598CAC000121DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si598 100 MHz CMOS
598CAC000736DG Skyworks有源晶振 XTAL OSC XO 25.165824MHZ CMOS Si598 25.165824 MHz CMOS
598GAC000774DG Skyworks有源晶振 XTAL OSC XO 50.0000MHZ CMOS SMD Si598 50 MHz CMOS
598JAC000107DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598PAC000107DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598PAC000141DG Skyworks有源晶振 XTAL OSC XO 56.3200MHZ CMOS SMD Si598 56.32 MHz CMOS
598PAC000383DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ CMOS SMD Si598 150 MHz CMOS
598PAC001583DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598CAC000157DG Skyworks有源晶振 XTAL OSC CMOS Si598 50 MHz CMOS
598JAC000112DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si598 10 MHz CMOS
598JAC000923DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si598 52 MHz CMOS
598PAC002178DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; I2C P Si598 46.8 MHz CMOS
598CBC000112DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Si598 10 MHz CMOS
598CCC001546DGR Skyworks有源晶振 XTAL OSC XO 65.0000MHZ CMOS SMD Si598 65 MHz CMOS
598JCC001008DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si598 100 MHz CMOS
598PCC001059DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si598 100 MHz CMOS
598BCA000420DG Skyworks有源晶振 XTAL OSC XO 644.53125MHZ LVDS Si598 644.53125 MHz LVDS
598BCA000420DGR Skyworks有源晶振 XTAL OSC XO 644.53125MHZ LVDS Si598 644.53125 MHz LVDS
598CCC001546DG Skyworks有源晶振 XTAL OSC XO 65.0000MHZ CMOS SMD Si598 65 MHz CMOS
598JCC001008DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si598 100 MHz CMOS
598PCC001059DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ CMOS SMD Si598 100 MHz CMOS
598AAC000112DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si598 10 MHz LVPECL
598BAC000102DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si598 100 MHz LVDS
598BAC000121DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si598 100 MHz LVDS
598DAC000716DGR Skyworks有源晶振 XTAL OSC XO 22.2880MHZ CML SMD Si598 22.288 MHz CML
598FAC000112DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si598 10 MHz LVDS
598FAC001431DGR Skyworks有源晶振 XTAL OSC XO 13.5000MHZ LVDS SMD Si598 13.5 MHz LVDS
598FAC001445DGR Skyworks有源晶振 XTAL OSC XO 13.5000MHZ LVDS SMD Si598 13.5 MHz LVDS
598BAC000112DGR Skyworks有源晶振 XTAL OSCILLATOR Si598 10 MHz LVDS
598BAC000159DGR Skyworks有源晶振 XTAL OSCILLATOR Si598 148.5 MHz LVDS
598FAC000305DGR Skyworks有源晶振 XO DIFF I2C PROGR XO Si598 64 MHz LVDS
598BAC000305DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si598 64 MHz LVDS
598BAC002153DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si598 40.96 MHz LVDS
598ABC000112DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si598 10 MHz LVPECL
598BCC000115DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si598 125 MHz LVDS
598ABB000118DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si598 156.25 MHz LVPECL
598ABB000126DGR Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVPECL Si598 200 MHz LVPECL
598BBB000118DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si598 156.25 MHz LVDS
598MBB000118DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si598 156.25 MHz LVPECL
598AAB000112DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si598 10 MHz LVPECL
598AAB000121DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si598 100 MHz LVPECL
598BAB000107DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si598 10 MHz LVDS
598BAB000544DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si598 156.25 MHz LVDS
598MAB000118DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si598 156.25 MHz LVPECL
598ABC000112DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si598 10 MHz LVPECL
598AAC000112DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si598 10 MHz LVPECL
598BAC000102DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si598 100 MHz LVDS
598BAC000121DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si598 100 MHz LVDS
598DAC000716DG Skyworks有源晶振 XTAL OSC XO 22.2880MHZ CML SMD Si598 22.288 MHz CML
598FAC000112DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si598 10 MHz LVDS
598FAC001431DG Skyworks有源晶振 XTAL OSC XO 13.5000MHZ LVDS SMD Si598 13.5 MHz LVDS
598FAC001445DG Skyworks有源晶振 XTAL OSC XO 13.5000MHZ LVDS SMD Si598 13.5 MHz LVDS
598BAC000112DG Skyworks有源晶振 XTAL OSCILLATOR Si598 10 MHz LVDS
598BAC000159DG Skyworks有源晶振 XTAL OSCILLATOR Si598 148.5 MHz LVDS
598FAC000305DG Skyworks有源晶振 XO DIFF I2C PROGR XO Si598 64 MHz LVDS
598BAC002153DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si598 40.96 MHz LVDS
598BAC000305DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si598 64 MHz LVDS
598CBC000111DGR Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CMOS SMD Si598 25 MHz CMOS
598CBC000125DGR Skyworks有源晶振 XTAL OSC XO 128.5000MHZ CMOS SMD Si598 128.5 MHz CMOS
598CBC000148DGR Skyworks有源晶振 XTAL OSC XO 24.5760MHZ CMOS SMD Si598 24.576 MHz CMOS
598CBC000215DGR Skyworks有源晶振 XTAL OSC XO 27.0000MHZ CMOS SMD Si598 27 MHz CMOS
598CBC000358DGR Skyworks有源晶振 XTAL OSC XO 148.5000MHZ CMOS SMD Si598 148.5 MHz CMOS
598CBC000465DGR Skyworks有源晶振 XTAL OSC XO 60.0000MHZ CMOS SMD Si598 60 MHz CMOS
598CBC000508DGR Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CMOS SMD Si598 25 MHz CMOS
598CBC000701DGR Skyworks有源晶振 XTAL OSC XO 157.5000MHZ CMOS SMD Si598 157.5 MHz CMOS
598PBC000110DGR Skyworks有源晶振 XTAL OSC XO 74.2500MHZ CMOS SMD Si598 74.25 MHz CMOS
598VBC000110DGR Skyworks有源晶振 XTAL OSC XO 74.2500MHZ CMOS SMD Si598 74.25 MHz CMOS
598BCC000115DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si598 125 MHz LVDS
598ABB000118DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si598 156.25 MHz LVPECL
598ABB000126DG Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVPECL Si598 200 MHz LVPECL
598BBB000118DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si598 156.25 MHz LVDS
598MBB000118DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si598 156.25 MHz LVPECL
598AAB000112DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si598 10 MHz LVPECL
598AAB000121DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si598 100 MHz LVPECL
598BAB000107DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si598 10 MHz LVDS
598BAB000544DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si598 156.25 MHz LVDS
598MAB000118DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si598 156.25 MHz LVPECL
598CBC000111DG Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CMOS SMD Si598 25 MHz CMOS
598CBC000125DG Skyworks有源晶振 XTAL OSC XO 128.5000MHZ CMOS SMD Si598 128.5 MHz CMOS
598CBC000148DG Skyworks有源晶振 XTAL OSC XO 24.5760MHZ CMOS SMD石英晶體振蕩器 Si598 24.576 MHz CMOS
598CBC000215DG Skyworks有源晶振 XTAL OSC XO 27.0000MHZ CMOS SMD Si598 27 MHz CMOS
598CBC000358DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ CMOS SMD Si598 148.5 MHz CMOS
598CBC000465DG Skyworks有源晶振 XTAL OSC XO 60.0000MHZ CMOS SMD Si598 60 MHz CMOS
598CBC000508DG Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CMOS SMD Si598 25 MHz CMOS
598CBC000701DG Skyworks有源晶振 XTAL OSC XO 157.5000MHZ CMOS SMD Si598 157.5 MHz CMOS
598PBC000110DG Skyworks有源晶振 XTAL OSC XO 74.2500MHZ CMOS SMD Si598 74.25 MHz CMOS
598VBC000110DG Skyworks有源晶振 XTAL OSC XO 74.2500MHZ CMOS SMD Si598 74.25 MHz CMOS
