AAT25M000000DHH20H,STD無源貼片晶振,7050mm,25MHZ,歐美進口晶體,美國STD晶振,無源晶振,SMD晶體諧振器,水晶振動子,25MHZ貼片晶體,陶瓷諧振器,7050mm晶體,兩腳貼片晶振,尺寸7.0*5.0mm,頻率25MHZ,負載20pF,環保晶振,低功耗晶振,低老化晶振,高品質晶振,高性能晶振,微處理器晶振,尋呼機晶振,蜂窩電話晶振,游戲設備晶振.
AAT25M000000DHH20H,STD無源貼片晶振,7050mm,25MHZ特點:
5x7水晶迷你SMD晶振
優異的老化性能
高品質高性能

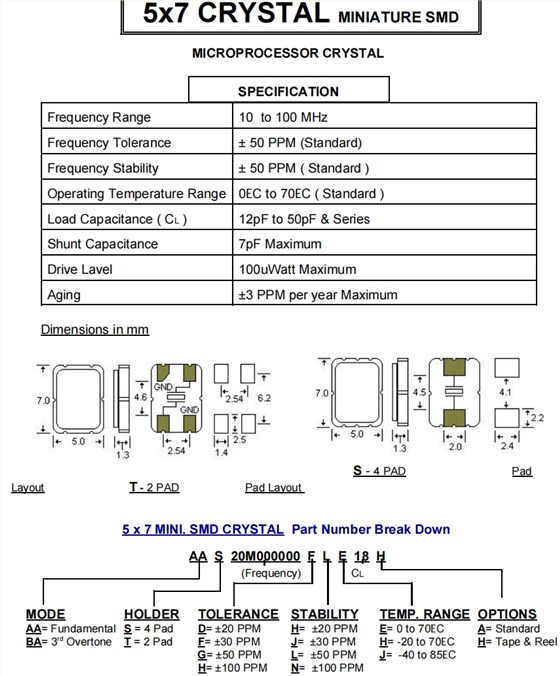

AAT25M000000DHH20H,STD無源貼片晶振,7050mm,25MHZ 參數表
| Frequency Range | 25 MHz | |||||||||
| Frequency Tolerance | ± 50 PPM (Standard) | |||||||||
| Frequency Stability | ± 50 PPM ( Standard ) | |||||||||
| Operating Temperature Range | 0EC to 70EC ( Standard ) | |||||||||
| Load Capacitance ( CL) | 12pF to 50pF & Series | |||||||||
| Shunt Capacitance | 7pF Maximum | |||||||||
| Drive Lavel | 100uWatt Maximum | |||||||||
| Aging | ±3 PPM per year Maximum | |||||||||
