D32G-026.0M,3225mm,TCXO,26MHz,ConnorWinfield低抖動晶振

產品簡介

D32G-026.0M,3225mm,TCXO,26MHz,ConnorWinfield低抖動晶振，美國進口晶振，ConnorWinfield晶振，康納溫菲爾德晶振，型號：D32G系列，編碼為：D32G-026.0M，電壓：3.3V，頻率為：26.000MHz，工作溫度范圍：-30℃至+85℃，小體積晶振尺寸：3.2x2.5mm表面安裝，四腳貼片晶振，有源晶振，TCXO溫補晶振，溫補晶體振蕩器，石英晶振。設計用于在一個非常小的封裝中需要緊密頻率穩定性的應用。符合RoHS的表面安裝包是設計為高密度安裝，是最佳的大規模生產。應用于：通訊設備晶振，導航儀晶振，無線網絡晶振，物聯網晶振，汽車電子晶振，安防設備等。

產品詳情

D32G-026.0M,3225mm,TCXO,26MHz,ConnorWinfield低抖動晶振，產品特點：

•3.3 Vdc操作，削波正弦波輸出

•頻率穩定性：±0.50ppm

•溫度范圍：-30至85°C

•低抖動：<1 ps RMS

•3.2x2.5mm SMT封裝有源晶振

•磁帶和卷軸包裝，符合RoHS標準/無鉛

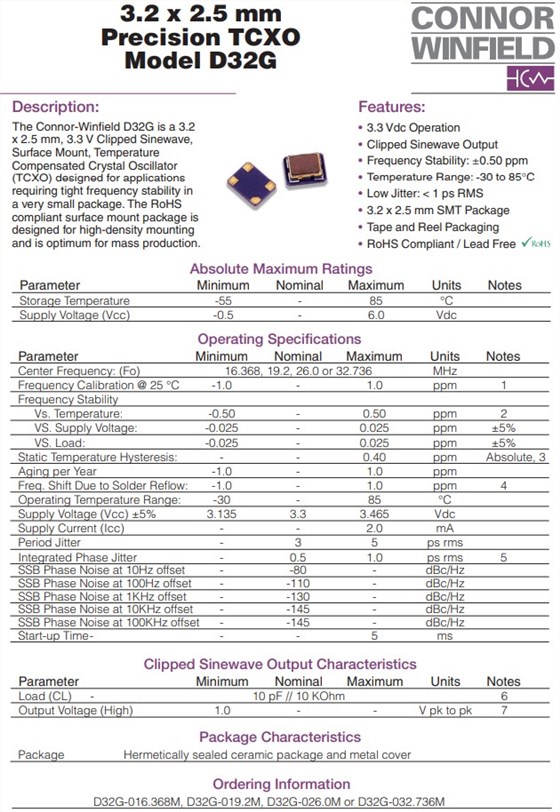

D32G-026.0M,3225mm,TCXO,26MHz,ConnorWinfield低抖動晶振,參數表

ParameterMinimumNominalMaximumUnitsNotes

Center Frequency: (Fo)26.0 MHz

Frequency Calibration @ 25 °C-1.0-1.0ppm1

Frequency Stability

Vs. Temperature:-0.50-0.50ppm2

VS. Supply Voltage:-0.025-0.025ppm±5%

VS. Load:-0.025-0.025ppm±5%

Static Temperature Hysteresis:--0.40ppmAbsolute, 3

Aging per Year-1.0-1.0ppm

Freq. Shift Due to Solder Reflow:-1.0-1.0ppm4

Operating Temperature Range:-30-85°C

Supply Voltage (Vcc) ±5%3.1353.33.465Vdc

Supply Current (Icc)--2.0mA

Period Jitter-35ps rms

Integrated Phase Jitter-0.51.0ps rms5

SSB Phase Noise at 10Hz offset--80-dBc/Hz

SSB Phase Noise at 100Hz offset--110-dBc/Hz

SSB Phase Noise at 1KHz offset--130-dBc/Hz

SSB Phase Noise at 10KHz offset--145-dBc/Hz

SSB Phase Noise at 100KHz offset--145-dBc/Hz

Start-up Time---5ms

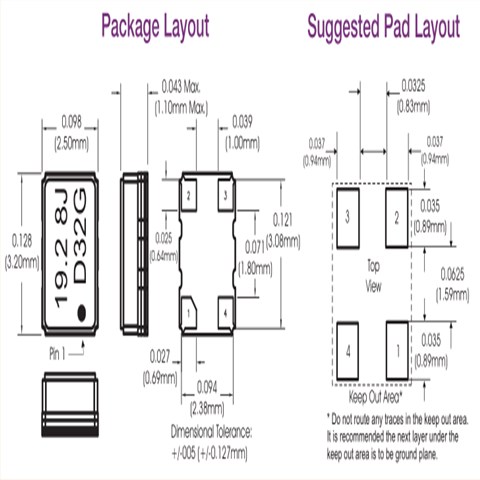

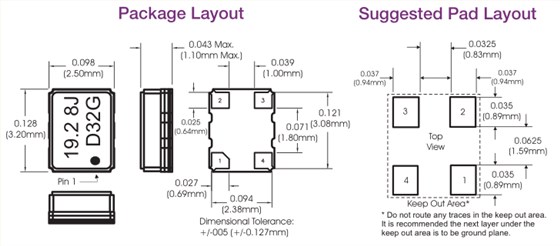

D32G-026.0M,3225mm,TCXO,26MHz,ConnorWinfield低抖動晶振,尺寸圖

原廠代碼	晶振廠家	型號	頻率	工作溫度
D32G-016.368M	ConnorWinfield晶振	D32G	16.368MHz	-30°C ~ 85°C
D32G-026.0M	ConnorWinfield晶振	D32G	26MHz	-30°C ~ 85°C
D32G-019.2M	ConnorWinfield晶振	D32G	19.2MHz	-30°C ~ 85°C
D75J-050.0M	ConnorWinfield晶振	D75J	50MHz	0°C ~ 70°C
D75J-038.88M	ConnorWinfield晶振	D75J	38.88MHz	0°C ~ 70°C
D75J-040.0M	ConnorWinfield晶振	D75J	40MHz	0°C ~ 70°C
D75A-010.0M	ConnorWinfield晶振	D75A	10MHz	0°C ~ 70°C
D75A-019.2M	ConnorWinfield晶振	D75A	19.2MHz	0°C ~ 70°C
D53G-020.0M	ConnorWinfield晶振	D53G	20MHz	-30°C ~ 85°C
D75A-012.8M	ConnorWinfield晶振	D75A	12.8MHz	0°C ~ 70°C
D75A-020.0M	ConnorWinfield晶振	D75A	20MHz	0°C ~ 70°C
D75AS-020.0M	ConnorWinfield晶振	D75AS	20MHz	0°C ~ 70°C
D75F-013.0M	ConnorWinfield晶振	D75F	13MHz	0°C ~ 70°C
D75F-019.44M	ConnorWinfield晶振	D75F	19.44MHz	0°C ~ 70°C
D75F-027.0M	ConnorWinfield晶振	D75F	27MHz	0°C ~ 70°C
D53G-026.0M	康納溫菲爾德晶振	D53G	26MHz	-30°C ~ 85°C
D75F-025.0M	ConnorWinfield晶振	D75F	25MHz	0°C ~ 70°C
D75J-038.88M-T	ConnorWinfield晶振	D75J	38.88MHz	0°C ~ 70°C
D75J-050.0M-T	ConnorWinfield晶振	D75J	50MHz	0°C ~ 70°C
D75J-040.0M-T	ConnorWinfield晶振	D75J	40MHz	0°C ~ 70°C
D75F-013.0M-T	ConnorWinfield晶振	D75F	13MHz	0°C ~ 70°C
D75F-019.44M-T	ConnorWinfield晶振	D75F	19.44MHz	0°C ~ 70°C
D75F-025.0M-T	ConnorWinfield晶振	D75F	25MHz	0°C ~ 70°C
D75F-027.0M-T	ConnorWinfield晶振	D75F	27MHz	0°C ~ 70°C
D53G-020.0M-T	ConnorWinfield晶振	D53G	20MHz	-30°C ~ 85°C
D53G-026.0M-T	ConnorWinfield晶振	D53G	26MHz	-30°C ~ 85°C
D32G-016.368M-T	ConnorWinfield晶振	D32G	16.368MHz	-30°C ~ 85°C
D32G-019.2M-T	ConnorWinfield晶振	D32G	19.2MHz	-30°C ~ 85°C
D32G-026.0M-T	ConnorWinfield晶振	D32G	26MHz	-30°C ~ 85°C
D75A-010.0M-T	ConnorWinfield晶振	D75A	10MHz	0°C ~ 70°C
D75A-012.8M-T	ConnorWinfield晶振	D75A	12.8MHz	0°C ~ 70°C
D75A-019.2M-T	ConnorWinfield晶振	D75A	19.2MHz	0°C ~ 70°C
D75A-020.0M-T	ConnorWinfield晶振	D75A	20MHz	0°C ~ 70°C
D75AS-020.0M-T	ConnorWinfield晶振	D75AS	20MHz	0°C ~ 70°C
