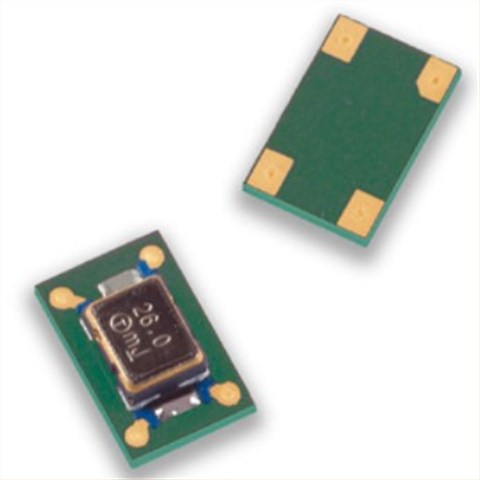

D53G-020.0M-T,5032mm,20MHz,ConnorWinfield溫補晶體振蕩器

產品簡介

D53G-020.0M-T,5032mm,20MHz,ConnorWinfield溫補晶體振蕩器，美國進口晶振，ConnorWinfield晶振，康納溫菲爾德晶振，型號：D53G系列，編碼為：D53G-020.0M-T，電壓：3.3V，頻率為：20.000MHz，工作溫度范圍：-30℃至+85℃，小體積晶振尺寸：5.0x3.2mm表面安裝，四腳貼片晶振，有源晶振，石英晶振，TCXO溫補晶振，5032石英晶體振蕩器。設計用于需要緊密頻率穩定性的應用。符合RoHS的表面安裝包是設計為高密度安裝，是最佳的大規模生產。應用于：移動通訊晶振，無線網絡晶振，物聯網晶振，汽車電子晶振，導航儀晶振，醫療設備等應用。

產品詳情

D53G-020.0M-T,5032mm,20MHz,ConnorWinfield溫補晶體振蕩器，產品特點：

•3.3 Vdc操作，削波正弦波輸出，頻率穩定性：±0.50ppm

•溫度范圍：-30至85°C，低抖動<1ps RMS，石英晶振

•5.0x3.2mm SMT封裝，磁帶和卷軸包裝，符合RoHS，無鉛

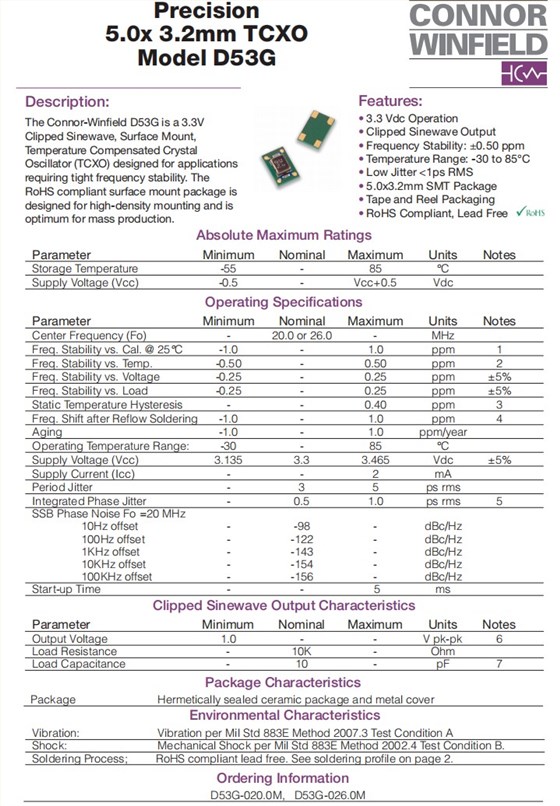

D53G-020.0M-T,5032mm,20MHz,ConnorWinfield溫補晶體振蕩器,參數表

ParameterMinimumNominalMaximumUnitsNotes

Center Frequency (Fo)-20.0 -MHz

Freq. Stability vs. Cal. @ 25。C-1.0-1.0ppm1

Freq. Stability vs. Temp.-0.50-0.50ppm2

Freq. Stability vs. Voltage-0.25-0.25ppm±5%

Freq. Stability vs. Load-0.25-0.25ppm±5%

Static Temperature Hysteresis--0.40ppm3

Freq. Shift after Reflow Soldering-1.0-1.0ppm4

Aging-1.0-1.0ppm/year

Operating Temperature Range:-30-85°C

Supply Voltage (Vcc)3.1353.33.465Vdc±5%

Supply Current (Icc)--2mA

Period Jitter-35ps rms

Integrated Phase Jitter-0.51.0ps rms5

SSB Phase Noise Fo =20 MHz
10Hz offset
100Hz offset
1KHz offset
10KHz offset
100KHz offset

-
-
-
-
-

-98
-122
-143
-154
-156

-
-
-
-
-

dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz

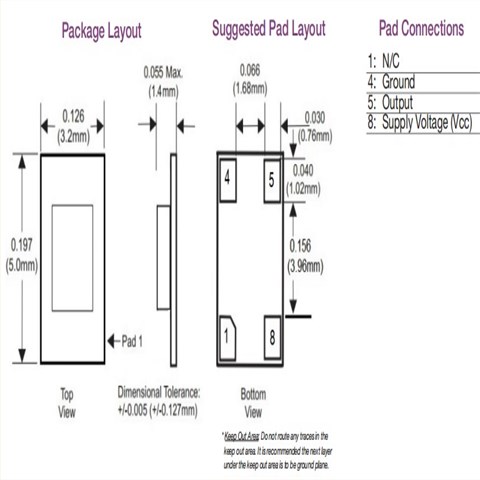

D53G-020.0M-T,5032mm,20MHz,ConnorWinfield溫補晶體振蕩器,尺寸圖

原廠代碼	進口晶振	型號	頻率	工作溫度
D32G-016.368M	ConnorWinfield晶振	D32G	16.368MHz	-30°C ~ 85°C
D32G-026.0M	ConnorWinfield晶振	D32G	26MHz	-30°C ~ 85°C
D32G-019.2M	ConnorWinfield晶振	D32G	19.2MHz	-30°C ~ 85°C
D75J-050.0M	ConnorWinfield晶振	D75J	50MHz	0°C ~ 70°C
D75J-038.88M	ConnorWinfield晶振	D75J	38.88MHz	0°C ~ 70°C
D75J-040.0M	ConnorWinfield晶振	D75J	40MHz	0°C ~ 70°C
D75A-010.0M	ConnorWinfield晶振	D75A	10MHz	0°C ~ 70°C
D75A-019.2M	ConnorWinfield晶振	D75A	19.2MHz	0°C ~ 70°C
D53G-020.0M	ConnorWinfield晶振	D53G	20MHz	-30°C ~ 85°C
D75A-012.8M	ConnorWinfield晶振	D75A	12.8MHz	0°C ~ 70°C
D75A-020.0M	ConnorWinfield晶振	D75A	20MHz	0°C ~ 70°C
D75AS-020.0M	ConnorWinfield晶振	D75AS	20MHz	0°C ~ 70°C
D75F-013.0M	ConnorWinfield晶振	D75F	13MHz	0°C ~ 70°C
D75F-019.44M	ConnorWinfield晶振	D75F	19.44MHz	0°C ~ 70°C
D75F-027.0M	ConnorWinfield晶振	D75F	27MHz	0°C ~ 70°C
D53G-026.0M	貼片晶振	D53G	26MHz	-30°C ~ 85°C
D75F-025.0M	ConnorWinfield晶振	D75F	25MHz	0°C ~ 70°C
D75J-038.88M-T	ConnorWinfield晶振	D75J	38.88MHz	0°C ~ 70°C
D75J-050.0M-T	ConnorWinfield晶振	D75J	50MHz	0°C ~ 70°C
D75J-040.0M-T	ConnorWinfield晶振	D75J	40MHz	0°C ~ 70°C
D75F-013.0M-T	ConnorWinfield晶振	D75F	13MHz	0°C ~ 70°C
D75F-019.44M-T	ConnorWinfield晶振	D75F	19.44MHz	0°C ~ 70°C
D75F-025.0M-T	ConnorWinfield晶振	D75F	25MHz	0°C ~ 70°C
D75F-027.0M-T	ConnorWinfield晶振	D75F	27MHz	0°C ~ 70°C
D53G-020.0M-T	ConnorWinfield晶振	D53G	20MHz	-30°C ~ 85°C
D53G-026.0M-T	ConnorWinfield晶振	D53G	26MHz	-30°C ~ 85°C
D32G-016.368M-T	ConnorWinfield晶振	D32G	16.368MHz	-30°C ~ 85°C
D32G-019.2M-T	ConnorWinfield晶振	D32G	19.2MHz	-30°C ~ 85°C
D32G-026.0M-T	ConnorWinfield晶振	D32G	26MHz	-30°C ~ 85°C
D75A-010.0M-T	ConnorWinfield晶振	D75A	10MHz	0°C ~ 70°C
D75A-012.8M-T	ConnorWinfield晶振	D75A	12.8MHz	0°C ~ 70°C
D75A-019.2M-T	ConnorWinfield晶振	D75A	19.2MHz	0°C ~ 70°C
D75A-020.0M-T	ConnorWinfield晶振	D75A	20MHz	0°C ~ 70°C
D75AS-020.0M-T	ConnorWinfield晶振	D75AS	20MHz	0°C ~ 70°C
