DSC1102AI2-200.0000T,Microchip差分晶振,200MHZ,7050mm,LVPECL,歐美有源晶振,200MHZ晶振,LVPECL差分晶體振蕩器,貼片有源晶振,7050mm有源振蕩器,六腳有源晶振,尺寸7.0*5.0mm,頻率200MHZ,電壓2.25V~3.6V,輸出邏輯LVPECL,頻率穩定性±25ppm,高精度晶振,高沖擊晶振,低功耗晶振,小體積晶振,低成本晶振,6G基站晶振,航空電子晶振,數字視頻晶振,光纖通道晶振,以太網晶振,智能家居晶振,GNSS授時模塊晶振,光通訊晶振.

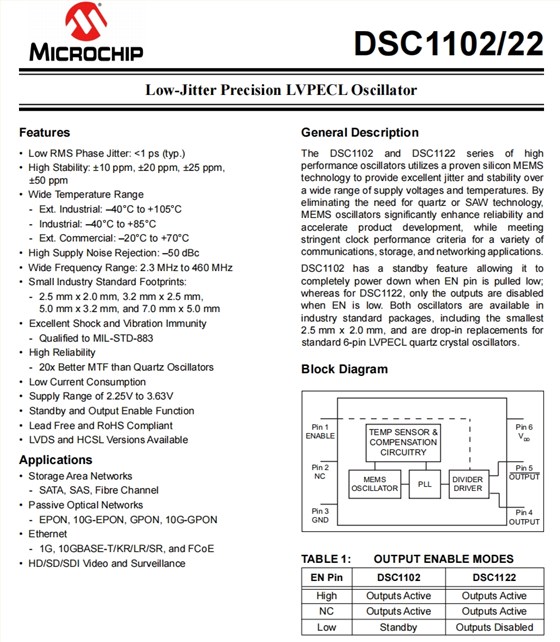

DSC1102AI2-200.0000T,Microchip差分晶振,200MHZ,7050mm,LVPECL特點:

低RMS相位抖動：＜1ps（典型值）,高穩定性：±10ppm、±20ppm、±25ppm，±50ppm

溫度范圍廣泛:外部工業：-40°C至+105°C,工業：-40°C至+85°C,外部商業：-20°C至+70°C

高電源噪聲抑制：-50 dBc,寬頻率范圍：2.3 MHz至460 MHz

差分晶振小型行業標準足跡：7.0毫米x 5.0毫米

卓越的沖擊和振動抗擾性，符合MIL-STD-883

高可靠性，MTF比石英振蕩器好20倍

低電流消耗，供電范圍為2.25V至3.63V

待機和輸出啟用功能，無鉛且符合RoHS

提供LVDS和HCSL版本

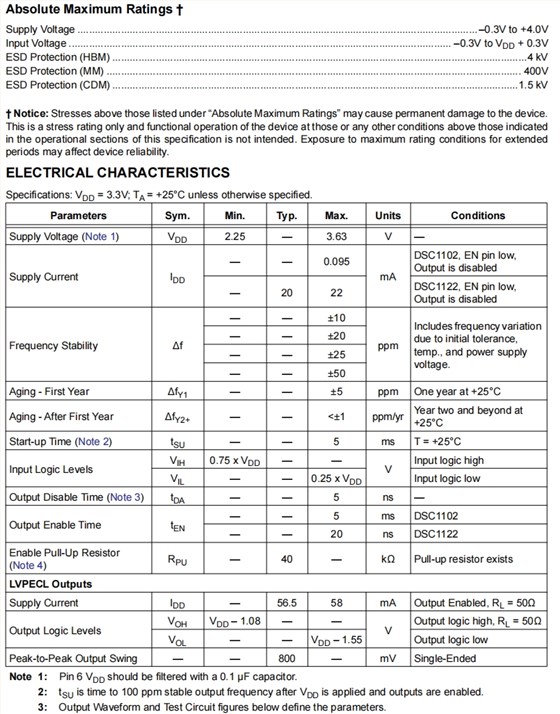

DSC1102AI2-200.0000T,Microchip差分晶振,200MHZ,7050mm,LVPECL 參數表

Parameters

Sym.

Min.

Typ.

Max.

Units

Conditions

Supply Voltage (Note 1)

VDD

2.25

3.63

Supply Current

IDD

—

0.095

DSC1102, EN pin low,
Output is disabled

—

DSC1122, EN pin low,
Output is disabled

Frequency Stability

Δf

±10

ppm

Includes frequency variation
due to initial tolerance,
temp., and power supply
voltage.

±20

±25

±50

Aging - First Year

ΔfY1

±5

ppm

One year at +25°C

Aging - After First Year

ΔfY2+

—

<±1

ppm/yr

Year two and beyond at
+25°C

Start-up Time (Note 2)

tSU

T = +25°C

Input Logic Levels

VIH

0.75 x VDD

Input logic high

VIL

0.25 x VDD

Input logic low

Output Disable Time (Note 3)

tDA

Output Enable Time

tEN

DSC1102

DSC1122

Enable Pull-Up Resistor
(Note 4)

RPU

—

kΩ

Pull-up resistor exists

LVPECL Outputs

Supply Current

IDD

56.5

Output Enabled, RL= 50Ω

Output Logic Levels

VOH

VDD– 1.08

Output logic high, RL= 50Ω

VOL

VDD– 1.55

Output logic low

Peak-to-Peak Output Swing

800

Single-Ended

Parameters

Sym.

Min.

Typ.

Max.

Units

Conditions

Output Transition Time
(Note 3)

—

250

—

Rise time, 20% to 80%

t f

Fall time, RL= 50Ω,
CL= 0 pF

Frequency

2.3

460

MHz

Output Duty Cycle

SYM

Differential

Period Jitter

JPER

2.5

psRMS

Integrated Phase Noise

JPH

—

0.25

—

psRMS

200 kHz to 20 MHz @
156.25 MHz

—

0.38

—

100 kHz to 20 MHz @
156.25 MHz

—

1.7

12 kHz to 20 MHz @
156.25 MHz

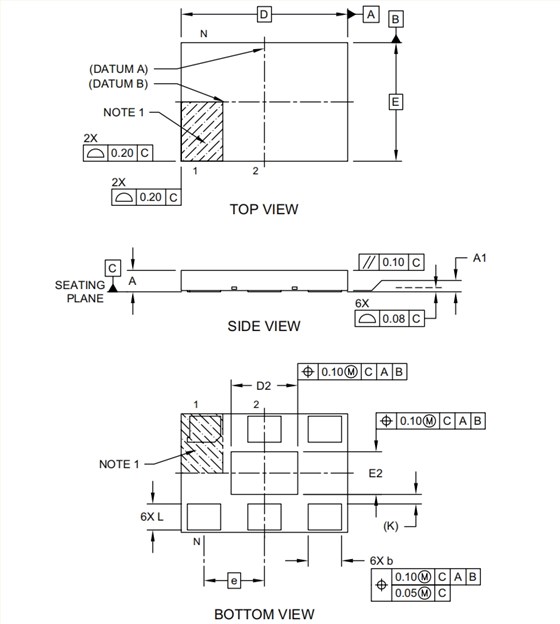

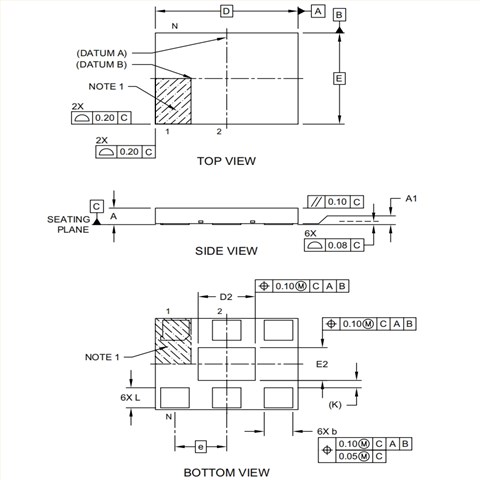

DSC1102AI2-200.0000T,Microchip差分晶振,200MHZ,7050mm,LVPECL 尺寸圖

原廠代碼	品牌	型號	類型	頻率	電壓
DSC1102BI2-125.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	125MHz	2.25 V ~ 3.6 V
DSC1102BI2-153.6000	Microchip振蕩器	DSC1102	MEMS (Silicon)	153.6MHz	2.25 V ~ 3.6 V
DSC1102BI1-100.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	100MHz	2.25 V ~ 3.6 V
DSC1102CI5-150.0000T	Microchip Technology	DSC1102	MEMS (Silicon)	150MHz	2.25 V ~ 3.6 V
DSC1102CI5-040.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	40MHz	2.25 V ~ 3.6 V
DSC1102CI5-025.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	25MHz	2.25 V ~ 3.6 V
DSC1102DI1-156.2500T	Microchip振蕩器	DSC1102	MEMS (Silicon)	156.25MHz	2.25 V ~ 3.6 V
DSC1102DI1-156.2500	Microchip振蕩器	DSC1102	MEMS (Silicon)	156.25MHz	2.25 V ~ 3.6 V
DSC1102CI1-125.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	125MHz	2.25 V ~ 3.6 V
DSC1102BE2-200.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	200MHz	2.25 V ~ 3.6 V
DSC1102AI1-100.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	100MHz	2.25 V ~ 3.6 V
DSC1102BI1-100.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	100MHz	2.25 V ~ 3.6V
DSC1102AI2-156.2540T	Microchip振蕩器	DSC1102	MEMS (Silicon)	156.254MHz	2.25 V ~ 3.6 V
DSC1102AI2-156.2540	Microchip振蕩器	DSC1102	MEMS (Silicon)	156.254MHz	2.25 V ~ 3.6 V
DSC1102BI2-125.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	125MHz	2.25 V ~ 3.6 V
DSC1102BI2-153.6000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	153.6MHz	2.25 V ~ 3.6 V
DSC1102CI5-062.5000	Microchip振蕩器	DSC1102	MEMS (Silicon)	62.5MHz	2.25 V ~ 3.6 V
DSC1102CI5-150.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	150MHz	2.25 V ~ 3.6 V
DSC1102CI5-200.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	200MHz	2.25 V ~ 3.6 V
DSC1102BI5-108.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	108MHz	2.25 V ~ 3.6 V
DSC1102AE5-412.5000	Microchip振蕩器	DSC1102	MEMS (Silicon)	412.5MHz	2.25 V ~ 3.6 V
DSC1102AE1-156.2500	Microchip振蕩器	DSC1102	MEMS (Silicon)	156.25MHz	2.25 V ~ 3.6 V
DSC1102AE1-156.2500T	Microchip振蕩器	DSC1102	MEMS (Silicon)	156.25MHz	2.25 V ~ 3.6 V
DSC1102BI2-160.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	160MHz	2.25 V ~ 3.6 V
DSC1102BI2-160.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	160MHz	2.25 V ~ 3.6 V
DSC1102BI2-240.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	240MHz	2.25 V ~ 3.6 V
DSC1102BI2-240.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	240MHz	2.25 V ~ 3.6 V
DSC1102BI5-156.2500	Microchip振蕩器	DSC1102	MEMS (Silicon)	156.25MHz	2.25 V ~ 3.6 V
DSC1102BI5-156.2500T	Microchip振蕩器	DSC1102	MEMS (Silicon)	156.25MHz	2.25 V ~ 3.6 V
DSC1102CI5-062.5000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	62.5MHz	2.25 V ~ 3.6 V
DSC1102CL1-100.0000	Microchip晶振	DSC1102	MEMS (Silicon)	100MHz	2.25 V ~ 3.6 V
DSC1102CL1-100.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	100MHz	2.25 V ~ 3.6 V
DSC1102DE2-025.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	25MHz	2.25 V ~ 3.6 V
DSC1102DE2-025.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	25MHz	2.25 V ~ 3.6 V
DSC1102DI2-125.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	125MHz	2.25 V ~ 3.6 V
DSC1102DI2-125.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	125MHz	2.25 V ~ 3.6 V
DSC1102DI5-100.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	100MHz	2.25 V ~ 3.6 V
DSC1102DI5-100.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	100MHz	2.25 V ~ 3.6 V
DSC1102DI5-108.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	108MHz	2.25 V ~ 3.6 V
DSC1102DI5-108.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	108MHz	2.25 V ~ 3.6 V
DSC1102DI5-162.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	162MHz	2.25 V ~ 3.6 V
DSC1102DI5-162.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	162MHz	2.25 V ~ 3.6 V
DSC1102AE1-125.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	125MHz	2.25 V ~ 3.6 V
DSC1102AI2-200.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	200MHz	2.25 V ~ 3.6 V
DSC1102CI5-100.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	100MHz	2.25 V ~ 3.6 V
DSC1102AE1-125.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	125MHz	2.25 V ~ 3.6 V
DSC1102AI2-200.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	200MHz	2.25 V ~ 3.6 V
DSC1102CE1-212.5000	Microchip振蕩器	DSC1102	MEMS (Silicon)	212.5MHz	2.25 V ~ 3.6 V
DSC1102CI5-100.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	100MHz	2.25 V ~ 3.6 V
DSC1102DI1-050.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	50MHz	2.25 V ~ 3.6 V
DSC1102DI1-125.0000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	125MHz	2.25 V ~ 3.6 V
DSC1102DI1-050.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	50MHz	2.25 V ~ 3.6 V
DSC1102DI1-125.0000	Microchip振蕩器	DSC1102	MEMS (Silicon)	125MHz	2.25 V ~ 3.6 V
DSC1102AE5-412.5000T	Microchip振蕩器	DSC1102	MEMS (Silicon)	412.5MHz	2.25 V ~ 3.6 V
DSC1102BE1-156.2500	Microchip振蕩器	DSC1102	MEMS (Silicon)	156.25MHz	2.25 V ~ 3.6 V
