FSX-1M電信設備晶振,1612超小型晶振,Fujicom富士通晶振,日本進口晶振,日本富士通晶振,石英晶體諧振器,石英振動子,1612mm貼片晶振,SMD晶振,石英貼片晶振,四腳無源晶振,無源晶振,尺寸1.6*1.2mm,頻率范圍13.56~50MHZ,環保晶振,通信設備晶振,電信設備晶振,手機晶振,便攜式設備晶振,GPS全球定位系統晶振.
FSX-1M電信設備晶振,1612超小型晶振,Fujicom富士通晶振特點:
超小型、低矮型諧振器
縫焊，陶瓷封裝無裂縫型
可回流。
無鉛、RoHS指令對應品

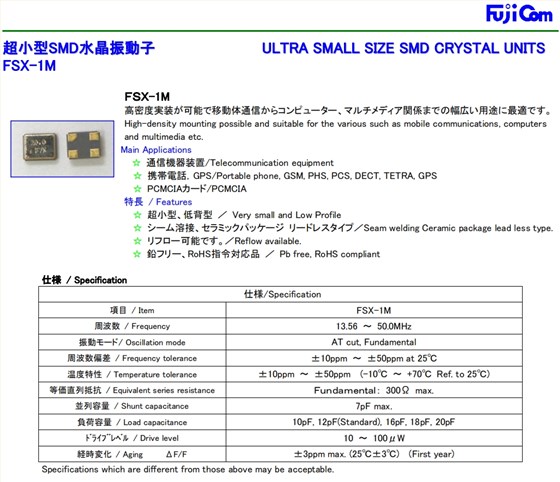

FSX-1M電信設備晶振,1612超小型晶振,Fujicom富士通晶振 參數表
| 仕様/Specification | ||||||
| 項目/ Item | FSX-1M | |||||
| 周波數/ Frequency | 13.56～50.0MHz | |||||
| 振動モード/ Oscillation mode | AT cut, Fundamental | |||||
| 周波數偏差/ Frequency tolerance | ±10ppm~±50ppm at 25℃ | |||||
| 溫度特性/ Temperature tolerance | ±10ppm~±50ppm(-10℃~+70℃ Ref. to 25℃) | |||||
| 等価直列抵抗/ Equivalent series resistance | Fundamental：300Ω max. | |||||
| 並列容量/ Shunt capacitance | 7pF max. | |||||
| 負荷容量/ Load capacitance | 10pF, 12pF(Standard), 16pF, 18pF, 20pF | |||||
| ???????????/ Drive level | 10～100μW | |||||
| 経時変化/ AgingΔF/F | ±3ppm max. (25℃±3℃)(First year) | |||||
