FW2500022Q,FW系列晶振,百利通亞陶電子,2016石英晶體，物料編碼為FW2500022Q，型號為FW系列晶振，頻率為25MHz，精度為±25ppm，負載電容為20pF，工作溫度為-40℃~85℃，尺寸為2.0*1.6mm，SMD晶振，晶振廠家，無源晶振，石英晶振，石英晶體諧振器，貼片晶體，四腳晶振，2016石英晶體，百利通亞陶電子，2016諧振器，特點：小型，輕型，薄型，高性能，應(yīng)用在錄音筆，微型攝像頭，藍牙耳機，無線充電寶等產(chǎn)品。
FW2500022Q,FW系列晶振,百利通亞陶電子,2016石英晶體
參數(shù)表
型號
FW
頻率
25MHZ
精度
±25ppm
負載電容
20pF
工作溫度
-40℃-85℃

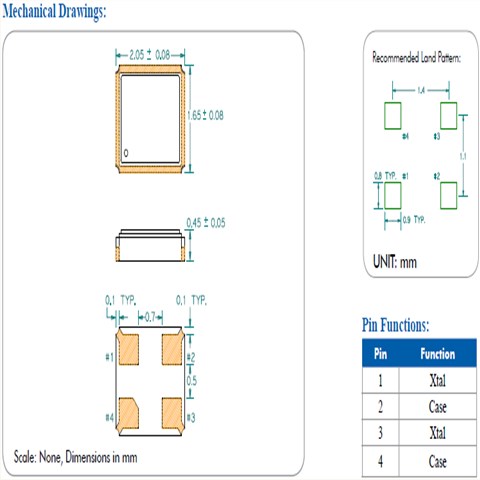

尺寸
2.0*1.6mm
FW2500022Q,FW系列晶振,百利通亞陶電子,2016石英晶體
| 物料編碼 | 描述 | 臺產(chǎn)晶振 | 頻率 | 精度 | 負載電容 | 工作溫度 |
| FW2500022Q | CRYSTAL25.0000MHZ20PFSMD | FW | 25MHz | ±25ppm | 20pF | -40°C~85°C |
| FW2500025Z | CRYSTAL25.0000MHZ20PFSMD | FW | 25MHz | ±30ppm | 20pF | -20°C~80°C |
| FW374WFBR2 | CRYSTAL37.4000MHZ16PFSMD | FW | 37.4MHz | ±10ppm | 16pF | -20°C~85°C |
| FW520WFMT1 | CRYSTAL52.0000MHZ12PFSMD | FW | 52MHz | ±17ppm | 12pF | -40°C~100°C |
| FW1600010 | CRYSTAL16.0000MHZ8PFSMD | FW | 16MHz | ±20ppm | 8pF | -40°C~85°C |
| FW4000025Q | CRYSTAL40.0000MHZ10PFSMD | FW | 40MHz | ±50ppm | 10pF | -40°C~125°C |
| FW2000016Q | CRYSTAL20.0000MHZ10PFSMD | FW | 20MHz | ±50ppm | 10pF | -40°C~125°C |
| FW2500039Q | CRYSTAL25.0000MHZ18PFSMD | FW | 25MHz | ±30ppm | 18pF | -40°C~85°C |
| FW400WFMR1 | CRYSTAL40.0000MHZ10PFSMD | FW | 40MHz | ±10ppm | 10pF | -20°C~85°C |
| FW2700019Z | CRYSTAL27.0000MHZ20PFSMD | FW | 27MHz | ±30ppm | 20pF | -20°C~80°C |
| FW3740001Z | CRYSTAL37.4000MHZ18PFSMD | FW | 37.4MHz | ±10ppm | 18pF | -30°C~85°C |
| FW4000001 | CRYSTAL40.0000MHZ18PFSMD | FW | 40MHz | ±15ppm | 18pF | -10°C~85°C |
| FW1600029Q | CRYSTAL16.0000MHZ8PFSMD | FW | 16MHz | ±60ppm | 8pF | -40°C~125°C |
| FW4000044Q | CRYSTAL40.0000MHZ8PFSMD | FW | 40MHz | ±50ppm | 8pF | -40°C~125°C |
| FW5000008Q | CRYSTAL50.0000MHZ10PFSMD | FW | 50MHz | ±15ppm | 10pF | -40°C~85°C |
| FW6000006Q | CRYSTAL60.0000MHZ8PFSMD | FW | 60MHz | ±20ppm | 8pF | -40°C~85°C |
| FW400WFMT1 | CRYSTAL40.0000MHZ12PFSMD | FW | 40MHz | ±17ppm | 12pF | -40°C~100°C |
| FW400WFQA1 | CRYSTAL40.0000MHZ7PFSMD | FW | 40MHz | ±10ppm | 7pF | -30°C~85°C |
| FW2400001 | CRYSTAL24.0000MHZ20PFSMD | FW | 24MHz | ±50ppm | 20pF | -20°C~70°C |
| FW374WFBR1 | CRYSTAL37.4000MHZ12PFSMD | FW | 37.4MHz | ±10ppm | 12pF | -20°C~85°C |
| FW2400063Q | CRYSTAL24.0000MHZ18PFSMD | FW | 24MHz | ±50ppm | 18pF | -40°C~105°C |
| FW4000015Q | CRYSTAL40.0000MHZ8PFSMD | FW | 40MHz | ±15ppm | 8pF | -40°C~85°C |
| FW2000008 | CRYSTAL20.0000MHZ12PFSMD | FW | 20MHz | ±10ppm | 12pF | -20°C~85°C |
| FW374WFMR1 | CRYSTAL37.4000MHZ8PFSMD | FW | 37.4MHz | ±10ppm | 8pF | -30°C~85°C |
| FW260WFMT1 | CRYSTAL26.0000MHZ12PFSMD | FW | 26MHz | ±17ppm | 12pF | -40°C~100°C |
| FW4800010Z | CRYSTAL48.0000MHZ10PFSMD | FW | 48MHz | ±20ppm | 10pF | -40°C~85°C |
| FW1600008 | CRYSTAL16.0000MHZ12PFSMD | FW | 16MHz | ±20ppm | 12pF | -40°C~85°C |
| FW4000044Q-52 | CrystalCeramicSEAM2016T&R3K | FW | 40MHz | ±50ppm | 8pF | -40°C~125°C |
| FW2400033 | CRYSTAL24.0000MHZ7PFSMD | FW | 24MHz | ±15ppm | 7pF | -40°C~85°C |
| FW2400039 | CRYSTAL24.0000MHZ15PFSMD | FW | 24MHz | ±10ppm | 15pF | -20°C~70°C |
| FW2450002 | CRYSTAL24.5760MHZ12PFSMD | FW | 24.576MHz | ±30ppm | 12pF | -20°C~70°C |
