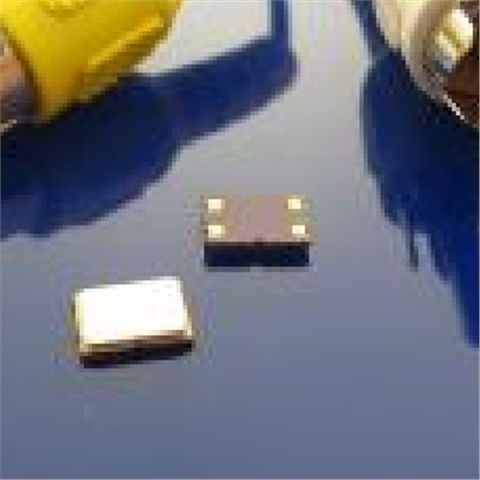

H13-26.000-16-1030-EXT-TR,盧柏26MHZ晶振,7050mm,H13，尺寸7.0*5.0mm,頻率26MHZ，Rubyquartz石英晶體，歐美進口晶振，高質量晶振，高性能晶振，無鉛晶振，7050mm小體積晶振，26MHZ貼片晶振，石英晶體諧振器，SMD晶振，石英貼片晶振，石英晶體，無源晶振，測試設備晶振，儀器設備晶振，智能家居晶振，便攜式設備晶振，智能音響晶振，可視化電話機晶振，物聯網晶振，低損耗晶振，低功耗晶振，具有超高的可靠性能。
貼片晶振產品比較適合用于測試設備，儀器設備，智能家居，便攜式設備，智能音響，可視化電話機，物聯網等應用領域。H13-26.000-16-1030-EXT-TR,盧柏26MHZ晶振,7050mm,H13.

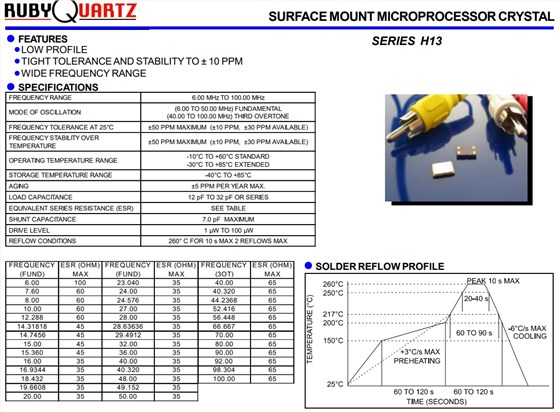

H13-26.000-16-1030-EXT-TR,盧柏26MHZ晶振,7050mm,H13 參數表
| FREQUENCY RANGE | 26.00 MHz | |||||||||||||||||
| MODE OF OSCILLATION |
(6.00 TO 50.00 MHz) FUNDAMENTAL (40.00 TO 100.00 MHz) THIRD OVERTONE |
|||||||||||||||||
| FREQUENCY TOLERANCE AT 25°C | ±50 PPM MAXIMUM(±10 PPM,±30 PPM AVAILABLE) | |||||||||||||||||
|
FREQUENCY STABILITY OVER TEMPERATURE |
±50 PPM MAXIMUM(±10 PPM,±30 PPM AVAILABLE) | |||||||||||||||||
| OPERATING TEMPERATURE RANGE |
-10°C TO +60°C STANDARD -30°C TO +85°C EXTENDED |
|||||||||||||||||
| STORAGE TEMPERATURE RANGE | -40°C TO +85°C | |||||||||||||||||
| AGING | ±5 PPM PER YEAR MAX. | |||||||||||||||||
| LOAD CAPACITANCE | 12 pF TO 32 pF OR SERIES | |||||||||||||||||
| EQUIVALENT SERIES RESISTANCE (ESR) | SEE TABLE | |||||||||||||||||
| SHUNT CAPACITANCE | 7.0 pFMAXIMUM | |||||||||||||||||
| DRIVE LEVEL | 1 µW TO 100 µW | |||||||||||||||||
| REFLOW CONDITIONS | 260° C FOR 10 s MAX 2 REFLOWS MAX | |||||||||||||||||

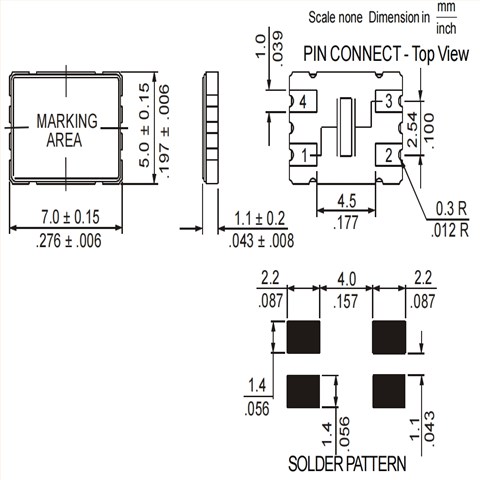

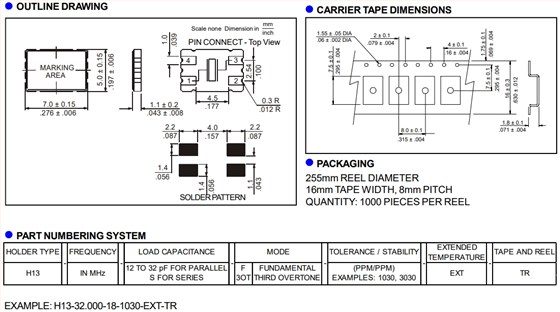

H13-26.000-16-1030-EXT-TR,盧柏26MHZ晶振,7050mm,H13 尺寸圖
H13-26.000-16-1030-EXT-TR,盧柏26MHZ晶振,7050mm,H13
無源晶振產品特性：
低調
耐受性和穩定性為±10PPM
寬頻率范圍
