27MHZ,5032mm,HE-MCC-53E-27.00-16,HEC四腳無源晶振,歐美進口晶振,HEC輕薄型晶振,水晶振動子,5032mm諧振器,無源SMD晶體,27MHZ貼片晶振,石英貼片晶振,石英晶體,尺寸5.0*3.2mm,頻率27MHZ,負載16pF,工作溫度-40°C~+85°C,低耗能晶振,低損耗晶振,高性能晶振,移動電話晶振,網絡設備晶振,便攜式設備晶振,數字音頻晶振.
27MHZ,5032mm,HE-MCC-53E-27.00-16,HEC四腳無源晶振特點:
尺寸尺寸5.0*3.2mm貼片晶振類型
寬頻率范圍8~160MHZ
符合ROHS/無鉛

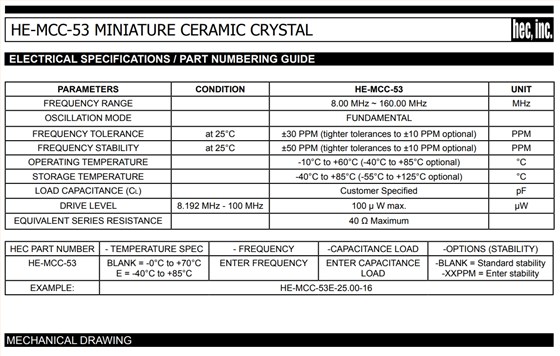

27MHZ,5032mm,HE-MCC-53E-27.00-16,HEC四腳無源晶振 參數表
| ELECTRICAL SPECIFICATIONS / PART NUMBERING GUIDE | ||||||||
| PARAMETERS | CONDITION | HE-MCC-53 | UNIT | |||||
| FREQUENCY RANGE | 27.00 MHz | MHz | ||||||
| OSCILLATION MODE | FUNDAMENTAL | |||||||
| FREQUENCY TOLERANCE | at 25°C | ±30 PPM (tighter tolerances to ±10 PPM optional) | PPM | |||||
| FREQUENCY STABILITY | at 25°C | ±50 PPM (tighter tolerances to ±10 PPM optional) | PPM | |||||
| OPERATING TEMPERATURE | -10°C to +60°C (-40°C to +85°C optional) | °C | ||||||
| STORAGE TEMPERATURE | -40°C to +85°C (-55°C to +125°C optional) | °C | ||||||
| LOAD CAPACITANCE (CL) | Customer Specified | pF | ||||||
| DRIVE LEVEL | 8.192 MHz - 100 MHz | 100 µ W max. | µW | |||||
| EQUIVALENT SERIES RESISTANCE | 40 Ω Maximum | |||||||
