PETERMANN彼得曼晶振\M2012-32.768kHz-±20ppm-12.5pF\6G移動通信晶振，尺寸2.0*1.2mm,頻率32.768KHZ，德國彼得曼晶振，德國進口晶振，輕薄型晶體，音叉晶體，時鐘晶體，水晶振動子，無源石英晶振，無源晶振，音叉晶振32.768K，石英晶體，石英晶體諧振器，石英貼片晶振，兩腳無源晶體，綠色環保晶振，無線應用晶振，移動通信晶振，智能家居晶振，藍牙音響晶振，小型設備專用晶振，便攜式設備晶振，網絡設備晶振，消費電子專用晶振，平板電腦晶振，CPU專用晶振，低老化晶振，低成本晶振，低損耗晶振，高性能晶振，高質量晶振，具有良好的耐壓性能以及穩定性能。
低成本32.768KHZ晶振適用于范圍十分廣泛，尤其適合用于優秀的時鐘發生器的CPU，無線，網絡設備，平板電腦，藍牙音響，移動通信等領域。PETERMANN彼得曼晶振\M2012-32.768kHz-±20ppm-12.5pF\6G移動通信晶振.

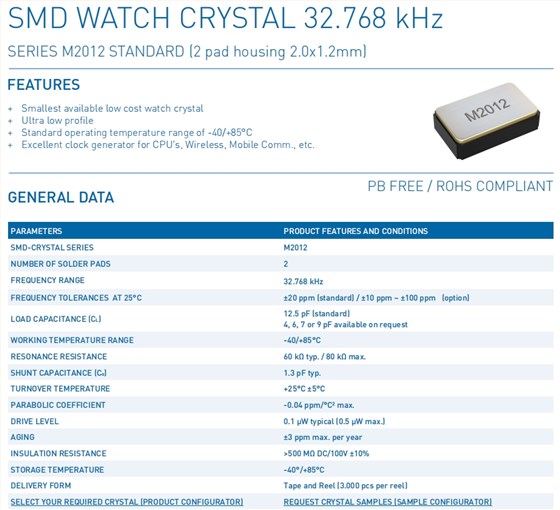

PETERMANN彼得曼晶振\M2012-32.768kHz-±20ppm-12.5pF\6G移動通信晶振參數表
PARAMETERS
PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES
M2012
NUMBER OF SOLDER PADS
2
FREQUENCY RANGE
32.768 kHz
FREQUENCY TOLERANCES AT 25°C
±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)
12.5 pF (standard)
4.6.7 and 9.0 pF available on request
WORKING TEMPERATURE RANGE
-40/+85°C
RESONANCE RESISTANCE
60 kΩ typ,/80 kΩ max.
SHUNT CAPACITANCE (Co)
1.3 pF typ.
TURNOVER TEMPERATURE
+25°C ±5°C
PARABOLIC COEFFICIENT
-0.04ppm/°C²
DRIVE LEVEL
0.1 μW typical(0.5 μW max.)
AGING
±3 ppm max. per year
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE
-40/+85°C
DELIVERY FORM
Tape and Reel (3.000 pcs per reel)

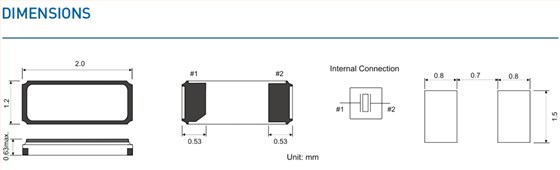

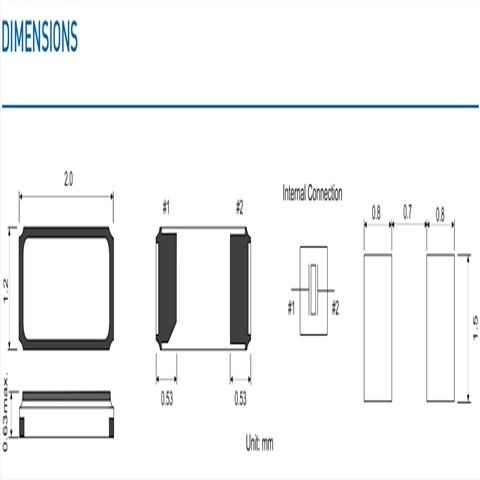

PETERMANN彼得曼晶振\M2012-32.768kHz-±20ppm-12.5pF\6G移動通信晶振尺寸圖
諧振器產品特性：
最小的低成本手表水晶
超低調
標準工作溫度范圍-40/+85°C
更多相關德國PETERMANN彼得曼晶振型號，請咨詢我們！
