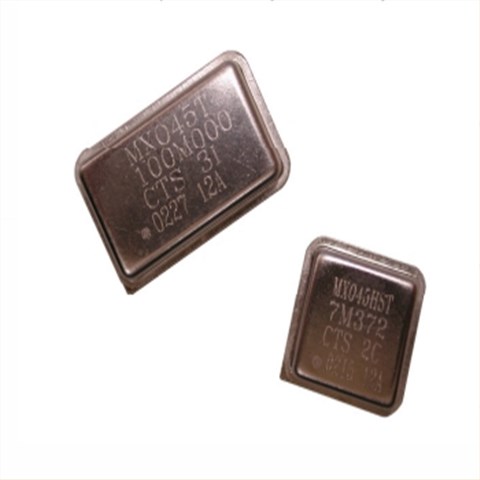

CTS西迪斯晶振,MXOHT-AL3M-30M0000,6G路由器晶振,長方型鐘振，尺寸20.8×13.2×5.1mm,頻率30MHZ，時鐘振蕩器，石英晶體振蕩器，OSC晶振，有源振蕩器，歐美進口晶振，高性能晶振，低抖動晶振，低電壓晶振，6G模塊晶振，6G基站晶振，6G無線模塊晶振，CTS MXOHTA和MXOHTB是傳統的通孔時鐘振蕩器，提供低成本的設計，支持舊的HCMOS/TTL應用程序。不建議將MXOHTA和MXOHTB用于新的設計活動，但它們是可用的支持為全尺寸和半尺寸金屬DIP封裝開發的現有應用。

有源晶振產品主要應用范圍：工業高溫，商業軍事/航空，計算機和外圍設備，微控制器和fpga，寬帶接入，數據通信，以太網/千兆以太網，光纖通道，測試與測量等領域。CTS西迪斯晶振,MXOHT-AL3M-30M0000,6G路由器晶振,長方型鐘振.

CTS西迪斯晶振,MXOHT-AL3M-30M0000,6G路由器晶振,長方型鐘振 參數表

PARAMETER

SYMBOL

CO NDITIONS

MIN

TYP

MAX

UNIT

Maximum Supply Voltage

VCC

-

--0.5

-

7 .0

V

Sup ply Voltage

VCC

±10%

1.62 2.25 2.97 4.50

1.8 2.5 3.3 5.0

1.98 2.75 3.63 5.50

V

Typical @ Nominal Vcc, CL= 15 pF, TA= +25°C @ +1.8V, 1.0MHz to 50MHz @ +1 .8V, 50.1MHz to 125MHz

- -

10 20

15 mA 25

ICC Sup ply Current

@ +2.5V, 1.0MHz to 50MHz @ +2 .5V, 50.1MHz to 125MHz

- -

12 25

15 mA 30

@ +3.3V, 1.0MHz to 50MHz @ +3 .3V, 50.1MHz to 125MHz

- -

15 30

20 mA 40

@ +5.0V, 1.0MHz to 40MHz-2030mA

Output Load

CL

-

-

-

15

pF

Operating Temperature

TA

-

-55 -55

+25

+105 +125

°C

Storage Temperature

TSTG

-

--55

-

+125

°C

Frequency Stability

PARAMETER

SYMBOL

CO NDITIONS

MIN

TYP

MAX

UNIT

Frequency Range

O

+1 .8V, +2.5V, +3 .3V

1.0 - 125 MHz

+5.0V

1.0 - 40

Freq uency Stab ility[Note1]Δf/fO

-

50, 75 or 100

±ppm

Aging

Δf/f25

First Year @ +25°C, nominal VCC

--5

-

5

ppm

1.]Inclusive of initial tolerance at time of shipment, changes in

supply voltage, load, temperature and

1st year aging.

Except ±50ppm which is temperature only .

Output Parameters

PARAMETERSYMBOLCONDITIONSMINTYPMAXUNIT

Output Type

-

-

HCMOS

-

VOH O utput Voltage Levels VOL

Logic '1' Level, CMOS Load Logic '0' Level, CMOS Load

0.9VCC -

- -

- 0 .1VCC

V

IOH O utput Current Levels IOL

VOH= 90%VCC[+1.8V,+2 .5V,+3.3V,+5.0V] VOL= 10%VCC[+1.8V,+2 .5V,+3.3V,+5.0V]

- -

- -

-4, -4, -8, -16 +4, +4, +8, +16

mA

Output Duty Cycle

SYM

@ 50% Level

45-55

%

@ 10%/90% Levels, Nominal VCC, CL= 15pF

@ +1.8V, 1.0MHz to 20MHz-710

ns

TR, TF Rise and Fall Time [Note2]

@ +1 .8V, 20.1MHz to 125MHz-57

@ +2.5V or +3 .3V, 1 .0MHz to 20MHz-710

ns

@ +2 .5V or +3.3V, 20 .1MHz to 125MHz-47

@ +5.0V, 1.0MHz to 20MHz-710

ns

@ +5 .0V, 20 .1MHz to 40MHz-46

Start Up Time

TS

Application of VCC

-25

ms

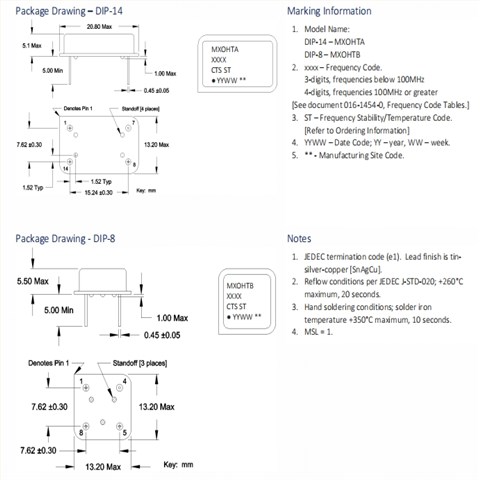

CTS西迪斯晶振,MXOHT-AL3M-30M0000,6G路由器晶振,長方型鐘振 尺寸圖

產品特性：

標準14針或8針金屬DIP封裝
基本和第三泛音晶體設計
頻率范圍1 - 125MHz
工作溫度，-55°C至+105°C和-55°C至+125°C
操作電壓;+ 1.8v， + 2.5v， + 3.3v， + 5.0v
輸出使能標準
三種批準的包裝方法。
