NFX-48.000-A-A-A-A-20,6035mm,NFX系列晶振,耐爾貼片晶體,美國耐爾晶振,NEL無源諧振器,水晶振動子,無源貼片晶振,四腳貼片晶振,6035mm小體積晶振,48MHZ無源晶振,石英貼片晶振,SMD晶振,尺寸6.0*3.5mm,頻率48MHZ,負載20pF,工作溫度-20°C~+70°C,無鉛晶振,高品質晶振,尋呼機晶振,數碼相機晶振,移動電話晶振,無線設備晶振,網絡晶振.

NFX-48.000-A-A-A-A-20,6035mm,NFX系列晶振,耐爾貼片晶體特點:

滿足NEL的要求產品可靠性

用戶指定的公差可獲得的

無引線陶瓷諧振器封裝,適用于回流焊

寬頻率范圍8.0MHz至80.0MHz

自動安裝，抗沖擊性：跌落試驗

在2mm不銹鋼上3次75厘米高的板接縫密封

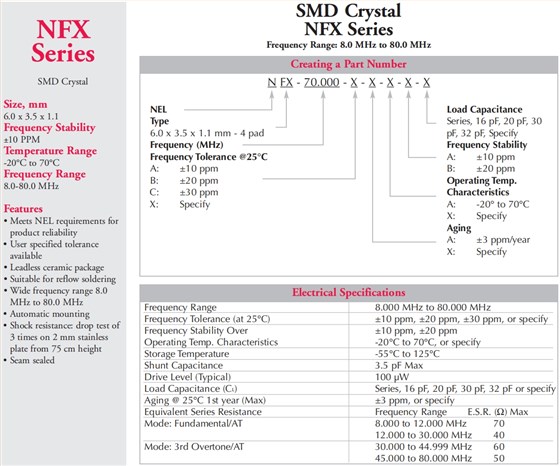

NFX-48.000-A-A-A-A-20,6035mm,NFX系列晶振,耐爾貼片晶體 參數表

Electrical Specifications
Frequency Range					48.000 MHz
Frequency Tolerance (at 25°C)					±10 ppm, ±20 ppm, ±30 ppm, or specify
Frequency Stability Over Operating Temp. Characteristics					±10 ppm, ±20 ppm -20°C to 70°C, or specify
Storage Temperature					-55°C to 125°C
Shunt Capacitance					3.5 pF Max
Drive Level (Typical)					100 µW
Load Capacitance (CL)					Series, 16 pF, 20 pF, 30 pF, 32 pF or specify
Aging @ 25°C 1st year (Max)					±3 ppm, or specify
Equivalent Series Resistance					Frequency RangeE.S.R. (Ω) Max
Mode: Fundamental/AT					8.000 to 12.000 MHz70 12.000 to 30.000 MHz40
Mode: 3rd Overtone/AT					30.000 to 44.999 MHz60 45.000 to 80.000 MHz50

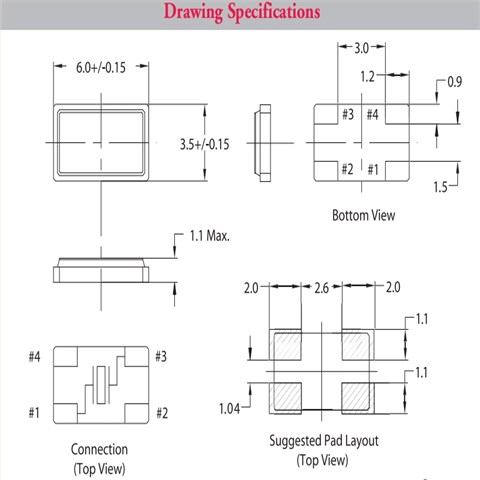

NFX-48.000-A-A-A-A-20,6035mm,NFX系列晶振,耐爾貼片晶體 尺寸圖
