NEL耐爾歐美晶振,NFY-25.000-A-B-16,NFY系列晶振,25MHZ,5032mm特點:

滿足NEL的要求無源晶振產品可靠性

用戶指定的公差可獲得的

無引線陶瓷封裝,適用于回流焊

寬頻率范圍12.0MHz至26.0MHz

自動安裝,抗沖擊性：跌落試驗

在2mm不銹鋼上3次75厘米高的板,接縫密封

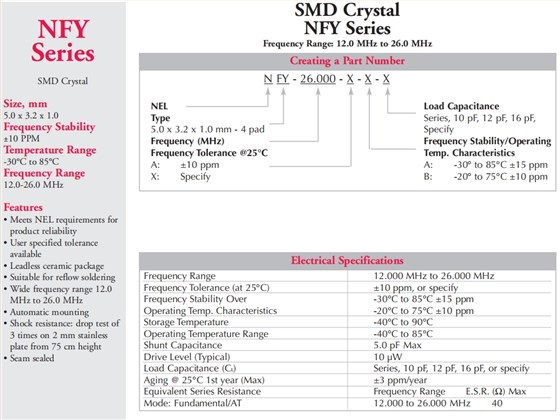

NEL耐爾歐美晶振,NFY-25.000-A-B-16,NFY系列晶振,25MHZ,5032mm 參數表

Electrical Specifications

Frequency Range

25.000 MHz

Frequency Tolerance (at 25°C)

±10 ppm, or specify

Frequency Stability Over Operating Temp. Characteristics

-30°C to 85°C ±15 ppm -20°C to 75°C ±10 ppm

Storage Temperature

-40°C to 90°C

Operating Temperature Range

-40°C to 85°C

Shunt Capacitance

5.0 pF Max

Drive Level (Typical)

10 µW

Load Capacitance (CL)

Series, 10 pF, 12 pF, 16 pF, or specify

Aging @ 25°C 1st year (Max)

±3 ppm/year

Equivalent Series Resistance

Frequency RangeE.S.R. (Ω) Max

Mode: Fundamental/AT

12.000 to 26.000 MHz40

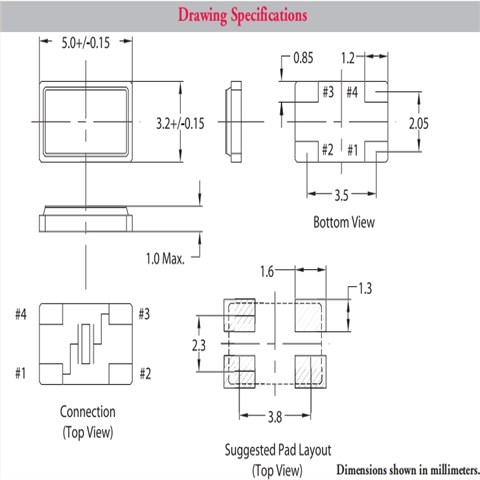

NEL耐爾歐美晶振,NFY-25.000-A-B-16,NFY系列晶振,25MHZ,5032mm 尺寸圖
