QC5A汽車氛圍燈晶振,QC5A36.0000F12B33R,康泰克Qantek晶振，尺寸5.0*3.2mm,頻率36MHZ，康泰克石英晶振，Qantek晶體諧振器，歐美進口晶振，石英水晶振動子，石英晶振，四腳貼片晶振，SMD晶振，無源晶振，5032mm貼片晶振，石英晶體諧振器，貼片石英晶振，無源貼片晶振，SMD晶體諧振器，環保晶振，低功耗晶振，低損耗晶體，高品質晶振，通信應用晶振，測試設備晶振，汽車應用晶振，藍牙晶振，無線局域網晶振，高密度應用晶振，調制解調器晶振，蜂窩電話晶振，儀器儀表晶振，小型設備晶振，產品具有輕薄小低功耗的特點.石英晶振產品常常用于高密度應用，調制解調器、通信和測試設備，PMCIA，無線應用，蜂窩電話，儀器儀表，小型設備，汽車應用等領域。QC5A汽車氛圍燈晶振,QC5A36.0000F12B33R,康泰克Qantek晶振.
QC5A汽車氛圍燈晶振,QC5A36.0000F12B33R,康泰克Qantek晶振 參數表

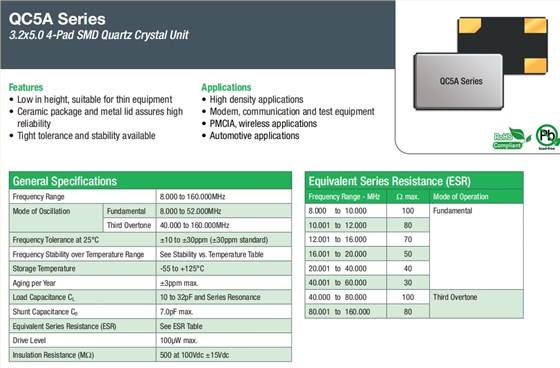

| General Specifications | |||||||||||||||||
| Frequency Range | 36.000MHz | ||||||||||||||||
| Mode of Oscillation | Fundamental | 8.000 to 52.000MHz | |||||||||||||||
| Third Overtone | 40.000 to 160.000MHz | ||||||||||||||||
| Frequency Tolerance at 25°C | ±10 to ±30ppm (±30ppm standard) | ||||||||||||||||

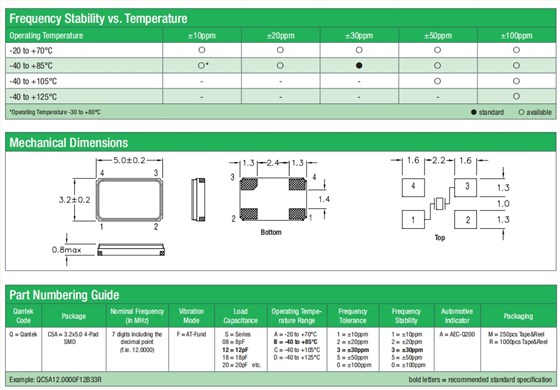

| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | ||||||||||||||||
| Storage Temperature | -55 to +125°C | ||||||||||||||||
| Aging per Year | ±3ppm max. | ||||||||||||||||
| Load Capacitance CL | 10 to 32pF and Series Resonance | ||||||||||||||||
| Shunt Capacitance C0 | 7.0pF max. | ||||||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | ||||||||||||||||
| Drive Level | 100μW max. | ||||||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | ||||||||||||||||

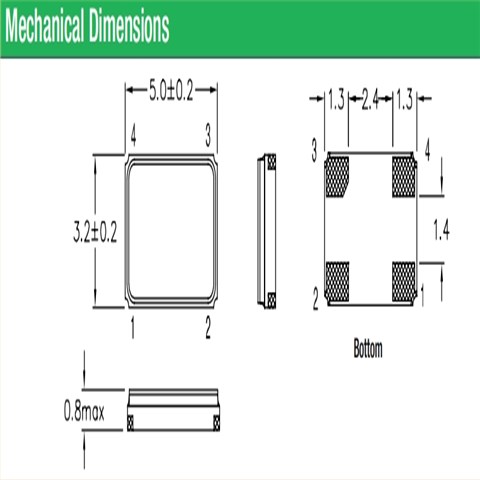

QC5A汽車氛圍燈晶振,QC5A36.0000F12B33R,康泰克Qantek晶振 尺寸圖

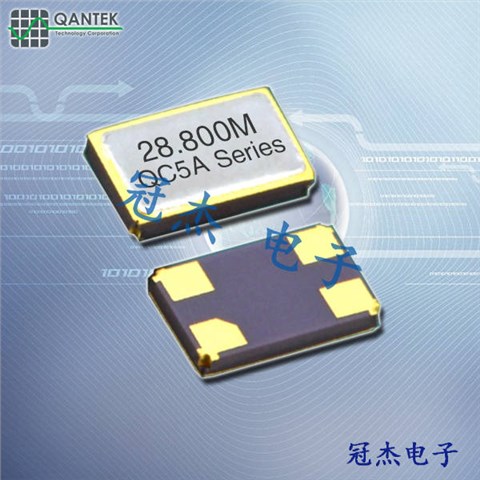

QC5A汽車氛圍燈晶振,QC5A36.0000F12B33R,康泰克Qantek晶振
5032晶振產品特性：
高度低，適用于薄型設備
陶瓷包裝和金屬蓋確保可靠性
具有緊密的公差和穩定性
