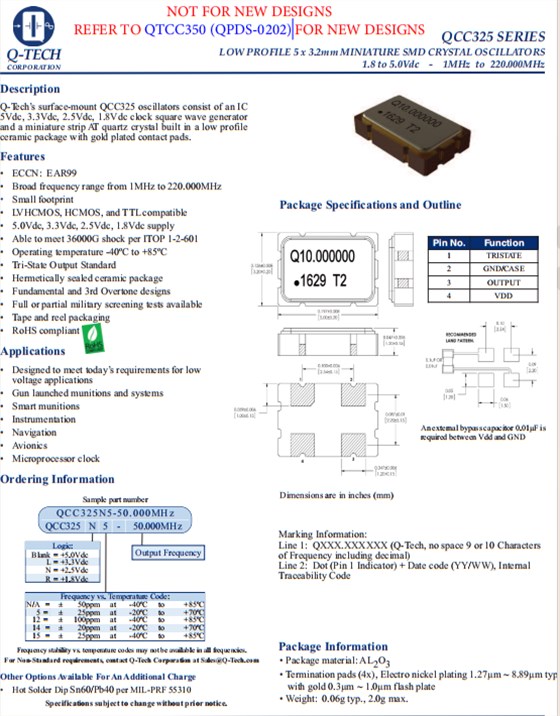

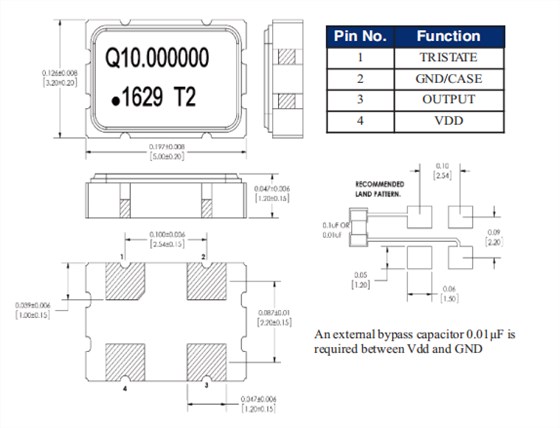

貼片晶體,QCC325L12-60MHz振蕩器,有源晶體振蕩器,Q-THCH電子晶振，四腳貼片晶振，有源貼片晶振，OSC石英晶體，超小型石英貼片晶振，編碼為：QCC325L12-60MHz，頻率：60 MHz，頻率穩定性：±100ppm，電源電壓為：3.3V，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：5.0x3.2mm，石英貼片晶振，低功耗有源振蕩器，SMD晶振，普通有源振蕩器，低差損石英晶振，低衰減有源晶振，低相控相噪石英晶振，該產品本身SMD編帶包裝方式，外觀為金屬封裝，可對應自動高速貼片機應用,以及高溫回流焊接，是無鉛晶振產品。
貼片晶體,QCC325L12-60MHz振蕩器,有源晶體振蕩器,Q-THCH電子晶振
| 編碼 | 品牌 | 頻率 | 頻率公差 | 電壓 | 工作溫度 | 尺寸 |
| QCC325L12-60MHz | Q-Tech晶振 | 60MHz | ±100ppm | 3.3V | -40℃至+85℃ | 5.0 x 3.2mm |
貼片晶體,QCC325L12-60MHz振蕩器,有源晶體振蕩器,Q-THCH電子晶振
| 編碼 | 品牌 | 頻率 | 頻率公差 | 電壓 | 工作溫度 | 尺寸 |
| QCC325L12-60MHz | Q-Tech Crystal | 60MHz | ±100ppm | 3.3V | -40℃至+85℃ | 5.0 x 3.2mm |
| QCC325R5-25MHz | Q-Tech Crystal | 25MHz | ±25ppm | 1.8V | -20℃至+70℃ | 5.0 x 3.2mm |
| QCC325R5-36MHz | Q-Tech Crystal | 36MHz | ±25ppm | 1.8V | -20℃至+70℃ | 5.0 x 3.2mm |
| QCC325N14-12.288MHz | Q-Tech Crystal | 12.288MHz | ±20ppm | 2.5V | -20℃至+70℃ | 5.0 x 3.2mm |
| QCC570LD12-50.000-SNPB | Q-Tech Crystal | 50MHz | ±100ppm | 3.3V | -40℃至+85℃ | 7.0 x 5.0mm |
| QCC570ACD16-16.000-SNPB | Q-Tech Crystal | 16MHz | ±100ppm | 5V | -20℃至+70℃ | 7.0 x 5.0mm |
| QCC570ND15-42.000-SNPB | Q-Tech Crystal | 42MHz | ±25ppm | 2.5V | -40℃至+85℃ | 7.0 x 5.0mm |
| QCC570LD12-8.000-SNPB | Q-Tech Crystal | 8MHz | ±100ppm | 3.3V | -40℃至+85℃ | 7.0 x 5.0mm |
| QTCH350LD92-32K768Hz | Q-Tech Crystal | 32.768KHz | ±250ppm | 3.3V | -55℃至+185℃ | 3.2 x 2.5mm |
| QTCH350ND87-32K769Hz | Q-Tech Crystal | 32.768KHz | ±150ppm | 2.5V | -20℃至+185℃ | 3.2 x 2.5mm |
| QTCC350LD12-40.000MHz | Q-Tech Crystal | 40MHz | ±100ppm | 3.3V | -40℃至+85℃ | 5.0 x 3.2mm |
| QTCC350LD14-16.000MHz | Q-Tech Crystal | 16MHz | ±20ppm | 3.3V | -20℃至+70℃ | 5.0 x 3.2mm |
| QTCC350HCD16-32.000MHz | Q-Tech Crystal | 32MHz | ±100ppm | 5V | -20℃至+70℃ | 5.0 x 3.2mm |
| QTCC350ND12-24.000MHz | Q-Tech Crystal | 24MHz | ±100ppm | 2.5V | -40℃至+85℃ | 5.0 x 3.2mm |
| QTCC350ND12-25.000MHz | Q-Tech Crystal | 25MHz | ±100ppm | 2.5V | -40℃至+85℃ | 5.0 x 3.2mm |
| QTCC350LD15-32.000MHz | Q-Tech Crystal | 24MHz | ±25ppm | 3.3V | -40℃至+85℃ | 5.0 x 3.2mm |
| QTCC350RD12-20.000MHz | Q-Tech Crystal | 20MHz | ±100ppm | 1.8V | -40℃至+85℃ | 5.0 x 3.2mm |
| QTCC230LD12-50.000MHz | Q-Tech Crystal | 50MHz | ±100ppm | 3.3V | -40℃至+85℃ | 3.2 x 2.5mm |
| QTCC230ND12-100.000MHz | Q-Tech Crystal | 100MHz | ±100ppm | 2.5V | -20℃至+70℃ | 3.2 x 2.5mm |
| QTCC230LD16-24.000MHz | Q-Tech Crystal | 24MHz | ±100ppm | 3.3V | -40℃至+85℃ | 3.2 x 2.5mm |
| QTCC230RD17-16.000MHz | Q-Tech Crystal | 16MHz | ±100ppm | 1.8V | -40℃至+125℃ | 3.2 x 2.5mm |
| QTCC230ND12-12.000MHz | Q-Tech Crystal | 12MHz | ±100ppm | 2.5V | -20℃至+70℃ | 3.2 x 2.5mm |
| QTCC230LD12-10.000MHz | Q-Tech Crystal | 10MHz | ±100ppm | 3.3V | -40℃至+85℃ | 3.2 x 2.5mm |
| QCC325N5-50MHz | Q-Tech Crystal | 50MHz | ±25ppm | 2.5V | -20℃至+70℃ | 5.0 x 3.2mm |
