QCM20-21AF16-27.000|QVS石英晶振|6GWIFI晶振，尺寸5.0x3.2mm,頻率27MHZ，美國進口晶振，QVS無源晶體，小體積晶振，5032貼片晶振，無源貼片晶振，SMD晶振，陶瓷諧振器，兩腳貼片晶振，輕薄型晶振，無鉛環保晶振，貼片諧振器，水晶振動子，智能手機晶振，6WIFI專用晶振，儀器設備晶振，無線網絡專用晶振，小型設備晶振，藍牙音響貼片晶振，高品質無源晶振，低損耗晶振，高性能晶振，產品具有高品質高性能的特點。
SMD晶振產品被廣泛用于智能手機，6WIFI應用，儀器設備，無線網絡設備，小型設備晶振，藍牙音響，測量與測試等領域.QCM20-21AF16-27.000|QVS石英晶振|6GWIFI晶振.
QCM20-21AF16-27.000|QVS石英晶振|6GWIFI晶振參數表

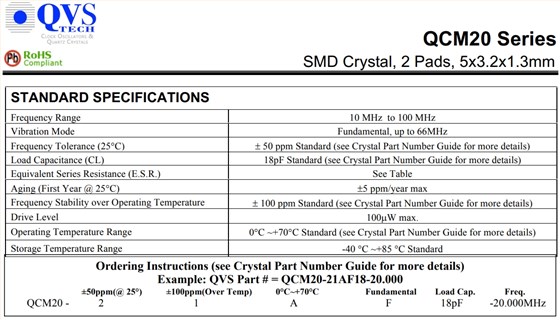

STANDARD SPECIFICATIONS
Frequency Range
27 MHz
Vibration Mode
Fundamental, up to 66MHz
Frequency Tolerance (25°C)
±50 ppm Standard (see Crystal Part Number Guide for more details)
Load Capacitance (CL)
18pF Standard (see Crystal Part Number Guide for more details)
Equivalent Series Resistance (E.S.R.)
See Table
Aging (First Year @ 25°C)
±5 ppm/year max
Frequency Stability over Operating Temperature
±100 ppm Standard (see Crystal Part Number Guide for more details)
Drive Level
100μW max.
Operating Temperature Range
0°C ~+70°C Standard (see Crystal Part Number Guide for more details)
Storage Temperature Range
-40 °C ~+85 °C Standard

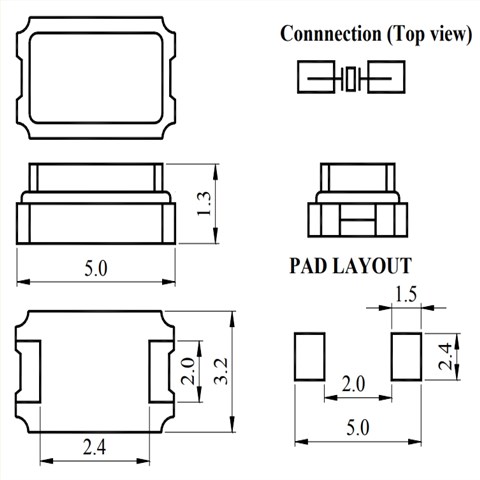

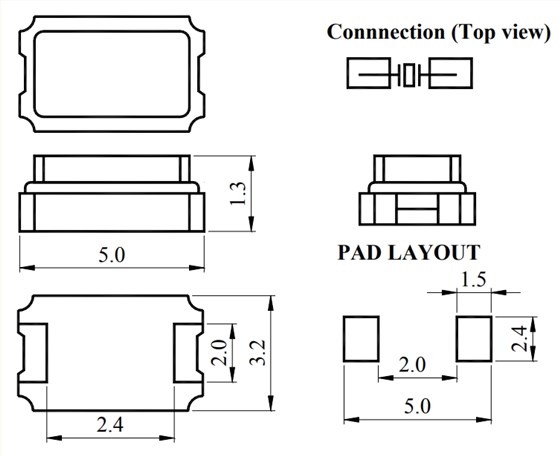

QCM20-21AF16-27.000|QVS石英晶振|6GWIFI晶振尺寸圖
5032晶振產品特性：
優異的老化特性
符合RoHS標準且無鉛
尺寸5.0x3.2mm
更多相關美國QVSCrystal型號，請咨詢我們！
