6G模塊晶振,X1G0045010004,EPSON貼片振蕩器,SG7050CCN有源晶振

6G模塊晶振,X1G0045010004,EPSON貼片振蕩器,SG7050CCN有源晶振6G模塊晶振,X1G0045010004,EPSON貼片振蕩器,SG7050CCN有源晶振

產品簡介

6G模塊晶振,X1G0045010004,EPSON貼片振蕩器,SG7050CCN有源晶振，尺寸7.00x5.00x1.50mm,頻率48MHZ,輸出邏輯CMOS，愛普生有源晶振，有源晶體振蕩器，CMOS輸出振蕩器，有源貼片晶振，石英晶體振蕩器，7050mm有源晶振，SPXO晶體振蕩器，OSC晶振，低抖動晶振，低電壓有源晶振，低抖動有源晶振，高品質有源晶振，高性能有源晶振，無線網絡設備晶振，6G模塊專用晶振。

有源晶振產品很適合用于智能家居，6G模塊，光纖通道，測試與測量，醫療產品，無線模塊，6G室外基站，路由器，光通信等領域.6G模塊晶振,X1G0045010004,EPSON貼片振蕩器,SG7050CCN有源晶振.



產品詳情

6G模塊晶振,X1G0045010004,EPSON貼片振蕩器,SG7050CCN有源晶振，尺寸7.00x5.00x1.50mm,頻率48MHZ,輸出邏輯CMOS，愛普生有源晶振，有源晶體振蕩器，CMOS輸出振蕩器，有源貼片晶振，石英晶體振蕩器，7050mm有源晶振，SPXO晶體振蕩器，OSC晶振，低抖動晶振，低電壓有源晶振，低抖動有源晶振，高品質有源晶振，高性能有源晶振，無線網絡設備晶振，6G模塊專用晶振。

有源晶振產品很適合用于智能家居，6G模塊，光纖通道，測試與測量，醫療產品，無線模塊，6G室外基站，路由器，光通信等領域.6G模塊晶振,X1G0045010004,EPSON貼片振蕩器,SG7050CCN有源晶振.

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

6G模塊晶振,X1G0045010004,EPSON貼片振蕩器,SG7050CCN有源晶振參數表

Item Symbol Specifications Conditions / Remarks
Output frequency range fo 48 MHz Please contact us about available frequencies.
Supply voltage VCC H: 4.5 V to 5.5 V
Storage temperature T_stg -40。C to +125。C Storage as single product.
Operating temperature T_use B: -20。C to +70。C, G: -40。C to +85。C
Frequency tolerance f_tol J:5010-6 -20。C to +70。C, -40。C to +85。C
Current consumption ICC 20 mA Max. No load condition Maximum frequency.
Disable current I_dis 10 mA Max. OE = GND
Symmetry SYM 40 % to 60 % 50 % VCClevel, L_CMOS<50 pF
Output voltage VOH VCC- 0.4 V Min. IOH= -8 mA
VOL 0.4 V Max. IOL= 16 mA
Output load condition L_CMOS 50 pF Max.
Input voltage VIH 80 % VCCMin. OE terminal
VIL 20 % VCCMax.
Rise time / Fall time tr / tf 5 ns Max. 20 % VCCto 80 % VCClevel,
L_CMOS<50 pF
Start-up time tOSC 4 ms Max. t = 0 at 90 % VCC
Frequency aging f_age 510-6/ year Max. +25。C, First year.
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

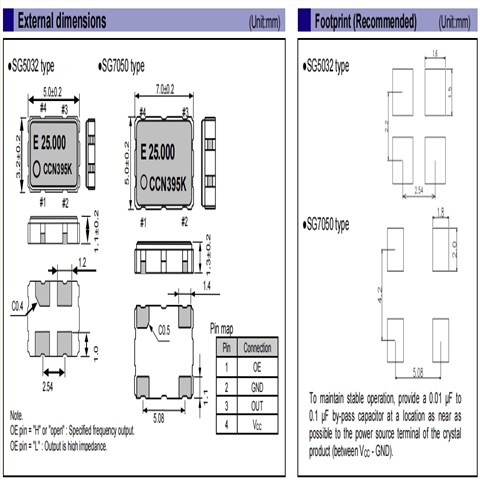

6G模塊晶振,X1G0045010004,EPSON貼片振蕩器,SG7050CCN有源晶振尺寸圖SG5032CCN SG7050CCN

SMD振蕩器產品特性：

頻率范圍： 2.5MHz至50MHz（基本模式）

電源電壓： 5.0 V Typ。

功能：輸出啟用（OE）

輸出：CMOSSG5032CCN SG7050CCN 1SG5032CCN SG7050CCN 2

更多相關日本愛普生EPSON晶振型號

編碼 品牌 型號 頻率 進口晶振尺寸 輸出方式 電源電壓 工作溫度
X1G0044810240 EPSON貼片振蕩器 SG7050CAN 7.372800 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.630 V -40 to 105 °C
X1G0044810242 EPSON貼片振蕩器 SG7050CAN 48.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.630 V -40 to 85 °C
X1G0044810243 EPSON貼片振蕩器 SG7050CAN 3.300000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.630 V -40 to 85 °C
X1G0044910001 EPSON貼片振蕩器 SG7050CBN 100.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910002 EPSON貼片振蕩器 SG7050CBN 125.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910003 EPSON貼片振蕩器 SG7050CBN 106.250000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910004 EPSON貼片振蕩器 SG7050CBN 133.330000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910005 EPSON貼片振蕩器 SG7050CBN 150.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910006 EPSON貼片振蕩器 SG7050CBN 156.250000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910007 EPSON貼片振蕩器 SG7050CBN 83.330000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910008 EPSON貼片振蕩器 SG7050CBN 84.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910009 EPSON貼片振蕩器 SG7050CBN 133.333000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910010 EPSON貼片振蕩器 SG7050CBN 153.600000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910011 EPSON貼片振蕩器 SG7050CBN 160.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910012 EPSON貼片振蕩器 SG7050CBN 170.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910017 EPSON貼片振蕩器 SG7050CBN 133.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910018 EPSON貼片振蕩器 SG7050CBN 133.333300 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910020 EPSON貼片振蕩器 SG7050CBN 125.006250 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910021 EPSON貼片振蕩器 SG7050CBN 156.250000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -20 to 70 °C
X1G0044910022 EPSON貼片振蕩器 SG7050CBN 156.253906 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910023 EPSON貼片振蕩器 SG7050CBN 80.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910024 EPSON貼片振蕩器 SG7050CBN 114.285000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910025 EPSON貼片振蕩器 SG7050CBN 120.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -20 to 70 °C
X1G0044910026 EPSON貼片振蕩器 SG7050CBN 120.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -20 to 70 °C
X1G0044910027 EPSON貼片振蕩器 SG7050CBN 120.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -40 to 85 °C
X1G0044910028 EPSON貼片振蕩器 SG7050CBN 100.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -20 to 70 °C
X1G0044910029 EPSON貼片振蕩器 SG7050CBN 85.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 1.600 to 3.600 V -20 to 70 °C
X1G0045010001 EPSON貼片振蕩器 SG7050CCN 4.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010003 EPSON貼片振蕩器 SG7050CCN 16.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010004 EPSON貼片振蕩器 SG7050CCN 48.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010005 EPSON貼片振蕩器 SG7050CCN 11.059200 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010006 EPSON貼片振蕩器 SG7050CCN 20.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010007 EPSON貼片振蕩器 SG7050CCN 50.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010008 EPSON貼片振蕩器 SG7050CCN 25.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010009 EPSON貼片振蕩器 SG7050CCN 33.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010010 EPSON貼片振蕩器 SG7050CCN 40.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010011 EPSON晶振 SG7050CCN 44.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010012 EPSON貼片振蕩器 SG7050CCN 49.152000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010014 EPSON貼片振蕩器 SG7050CCN 4.915200 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010015 EPSON貼片振蕩器 SG7050CCN 8.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010016 EPSON貼片振蕩器 SG7050CCN 5.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010017 EPSON貼片振蕩器 SG7050CCN 24.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010018 EPSON貼片振蕩器 SG7050CCN 3.579545 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010019 EPSON貼片振蕩器 SG7050CCN 3.686400 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010020 EPSON貼片振蕩器 SG7050CCN 6.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010021 EPSON貼片振蕩器 SG7050CCN 12.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010022 EPSON貼片振蕩器 SG7050CCN 20.480000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010023 EPSON貼片振蕩器 SG7050CCN 21.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010024 EPSON貼片振蕩器 SG7050CCN 32.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010025 EPSON貼片振蕩器 SG7050CCN 30.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010026 EPSON貼片振蕩器 SG7050CCN 14.745600 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
X1G0045010027 EPSON貼片振蕩器 SG7050CCN 42.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 4.500 to 5.500 V -40 to 85 °C
