首頁 愛普生晶振

愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振

愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振

產品簡介

愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振，尺寸7.0*5.0mm,頻率122.88MHZ,支持輸出LV-PECL，石英差分晶振，OSC振蕩器，差分晶振，LV-PECL振蕩器，日本進口晶振，愛普生差分振蕩器，低抖動振蕩器，低電壓差分晶振，低耗能差分振蕩器，無線設備差分晶振，光模塊差分晶振，高品質差分振蕩器，有源差分晶振，低相噪差分晶振，產品適用于智能產品，儀器設備，光模塊，無線設備等領域。

差分晶體振蕩器(DXO)是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL，具有低電平,低抖動，低功耗等特性。愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振.


產品詳情

愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振，尺寸7.0*5.0mm,頻率122.88MHZ,支持輸出LV-PECL，石英差分晶振，OSC振蕩器，差分晶振，LV-PECL振蕩器，日本進口晶振，愛普生差分振蕩器，低抖動振蕩器，低電壓差分晶振，低耗能差分振蕩器，無線設備差分晶振，光模塊差分晶振，高品質差分振蕩器，有源差分晶振，低相噪差分晶振，產品適用于智能產品，儀器設備，光模塊，無線設備等領域。

差分晶體振蕩器(DXO)是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL，具有低電平,低抖動，低功耗等特性。愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

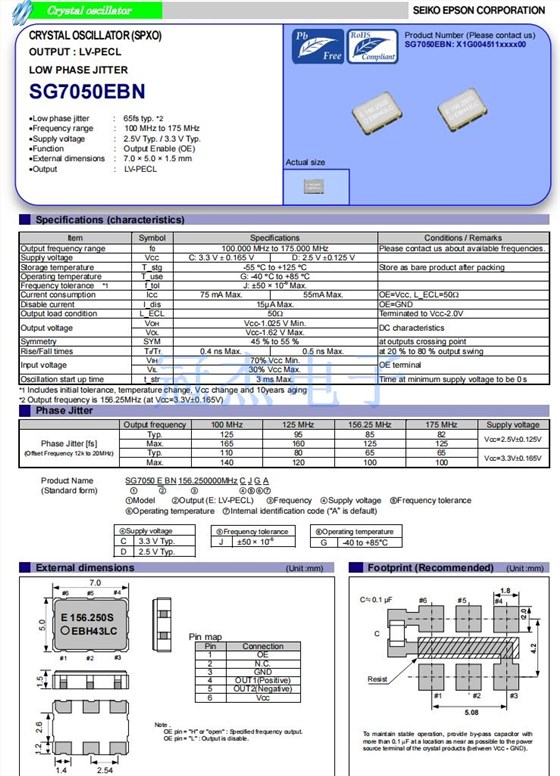

愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振 參數表

Item Symbol Specifications Conditions / Remarks
Output frequency range f0 122.88MHz Please contact us about available frequencies.
Supply voltage VCC C: 3.3 V土0.165 V D: 2.5 V土0.125 V
Storage temperature T_stg -55。C to +125。C Store as bare product after packing
Operating temperature T_use G: -40。C to +85。C
Frequency tolerance*1 f_tol J: ±50 × 10-6Max.
Current consumption ICC 75 mA Max. 55mA Max. OE=VCC, L_ECL=50Ω
Disable current I_dis 15μA Max. OE=GND
Output load condition L_ECL 50Ω Terminated to VCC-2.0V
Output voltage VOH Vcc-1.025 V Min. DC characteristics
VOL Vcc-1.62 V Max.
Symmetry SYM 45 % to 55 % at outputs crossing point
Rise/Fall times Tr/Tf 0.4 ns Max. 0.5 ns Max. at 20 % to 80 % output swing
Input voltage VIH 70% VCCMin. OE terminal
VIL 30% VCCMax.
Oscillation start up time t_str 3 ms Max. Time at minimum supply voltage to be 0 s
Phase Jitter
Output frequency 100 MHz 125 MHz 156.25 MHz 175 MHz Supply voltage
Phase Jitter [fs]
(Offset Frequency 12k to 20MHz) 		Typ. 125 95 85 82 VCC=2.5V土0.125V
Max. 165 160 125 125
Typ. 110 80 65 65 VCC=3.3V土0.165V
Max. 140 120 100 100
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

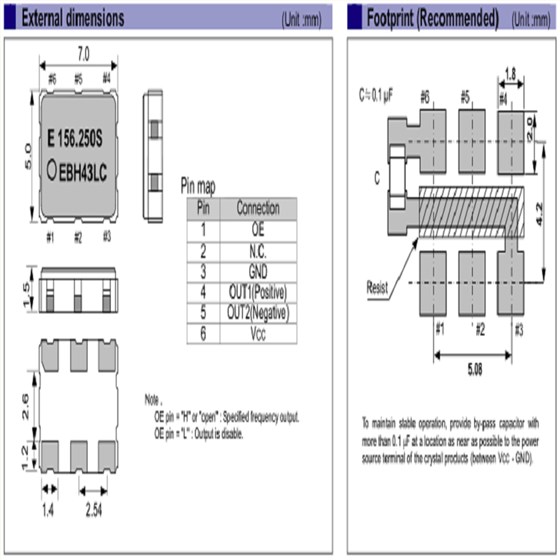

愛普生晶振,SG7050EBN差分晶振,X1G0045110005,6G無線模塊晶振 尺寸圖SG7050EBN_7050

產品特性：

低相位抖動:65fs

頻率范圍:100mhz~175mhz

供電電壓:2.5V/3.3V類型

功能:輸出使能(OE)

外部尺寸:7.0×5.0×1.5 mm

輸出:LV-PECL

SG7050EBN 1

更多相關EPSON日本愛普生晶振型號

編碼 Model/型號 Frequency/頻率 LxWxH/尺寸 Output Wave/輸出方式 Supply Voltage/電源電壓 Ope Temperature/工作溫度
X1G0042510029 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510030 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510031 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510032 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510033 SG3225EAN 155.520000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510034 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510035 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510036 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510037 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510039 SG3225EAN 700.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510040 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510041 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510043 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510044 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510045 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510046 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510047 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510048 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510049 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510050 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510051 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510053 SG3225EAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510054 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510055 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510056 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510059 SG3225EAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510060 SG3225EAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510062 SG3225EAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510063 SG3225EAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510064 SG3225EAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510065 SG3225EAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510066 SG3225EAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510067 SG3225EAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510068 SG3225EAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510069 SG3225EAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510070 SG3225EAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510072 SG3225EAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510073 SG3225EAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510074 SG3225EAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510079 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510080 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510083 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510084 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510087 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510088 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510091 SG3225EAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510092 SG3225EAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510100 SG3225EAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510103 SG3225EAN 644.531200 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042510104 SG3225EAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510105 SG3225EAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510106 SG3225EAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510107 SG3225EAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510111 SG3225EAN 133.330000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510112 SG3225EAN 144.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510113 SG3225EAN 174.703100 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510114 SG3225EAN 320.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510115 SG3225EAN 500.000000 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042510121 SG3225EAN 161.132812 MHz 3.20 x 2.50 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710001 SG5032EAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL差分有源振蕩器 2.250 to 3.630 V -40 to 85 °C
X1G0042710002 SG5032EAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710004 SG5032EAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710005 SG5032EAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710006 SG5032EAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710007 SG5032EAN 106.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710008 SG5032EAN 212.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710009 SG5032EAN 74.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710010 SG5032EAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710011 SG5032EAN 75.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710012 SG5032EAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710013 SG5032EAN 155.520000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710014 SG5032EAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710015 SG5032EAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710016 SG5032EAN 312.515625 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710017 SG5032EAN 161.132800 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710019 SG5032EAN 700.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -20 to 70 °C
X1G0042710020 SG5032EAN 125.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710021 SG5032EAN 125.006250 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710023 SG5032EAN 100.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710024 SG5032EAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
X1G0042710025 SG5032EAN 400.000000 MHz 5.00 x 3.20 x 1.20 mm LV-PECL 2.250 to 3.630 V -40 to 85 °C
